FG110 K1 AT (FAAA) - Honda 9" Tiller, Made in USA (SN: FAAA-1200001 - FAAA-1599999) RECOIL STARTER Parts Diagram

9" Tiller, Made in USA

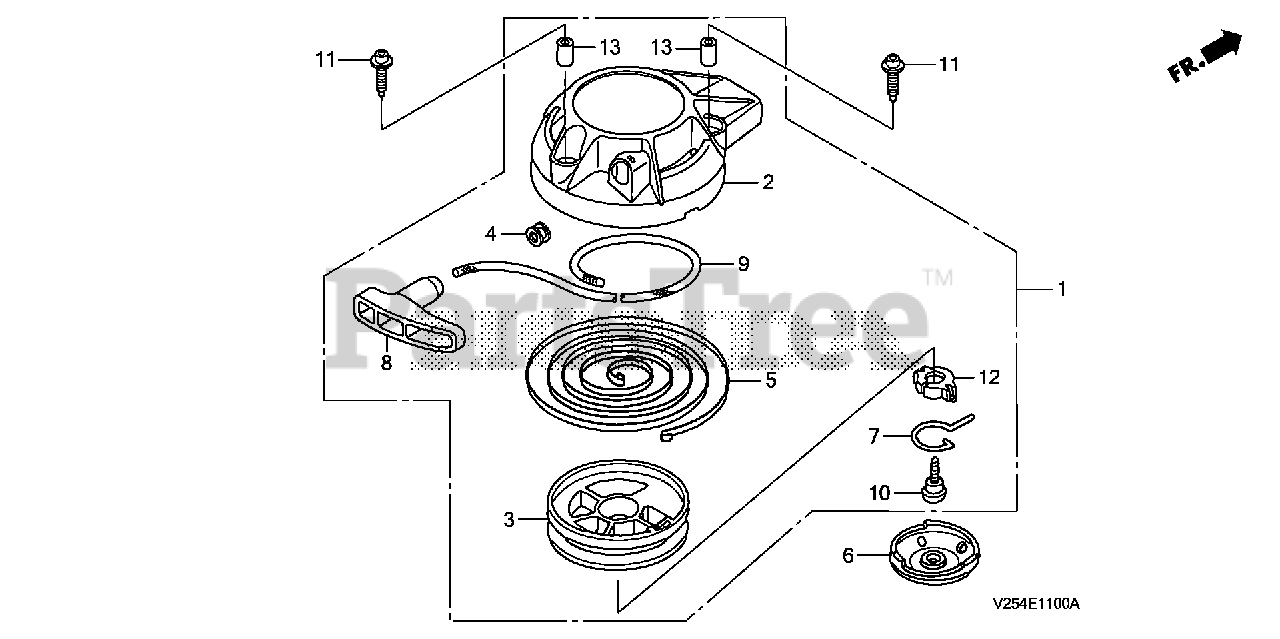

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-Z3E-M01

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL
(Superseded to 28400-Z0H-315)

$10.99

$

In Stock, only 1 left!

0

1

Honda 28400-Z0H-315

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL (FOR U.S.A.)
(Superseded to 28400-Z3E-M01)

Note: Use from Engine SN 2380557.

$10.99

$

In Stock, only 1 left!

0

2

Honda 28414-Z0H-003

CASE, RECOIL STARTER

$18.99

$

Usually ships in 3-6 days

0

3

Honda 28421-Z0H-003

REEL, RECOIL STARTER

$7.99

$

In Stock, only 1 left!

0

4

Honda 28433-ZM3-003

GUIDE, ROPE

$2.49

$

In Stock, only 4 left!

0

5

Honda 28442-Z0H-003

SPRING, RECOIL STARTER

$13.99

$

In Stock, only 4 left!

0

6

Honda 28451-Z0H-003

PULLEY, RECOIL STARTER

$4.49

$

In Stock, Qty 10

0

7

Honda 28459-Z0H-003

SWINGARM

$4.49

$

Usually ships in 3-6 days

0

8

Honda 28461-ZM3-003

KNOB, RECOIL STARTER

Note: Use up to Engine SN 2380556.

$4.49

$

Usually ships in 3-6 days

0

8

Honda 28461-Z3F-M01

KNOB, RECOIL STARTER

Note: Use from Engine SN 2380557.

$8.49

$

Usually ships in 3-6 days

0

9

Honda 28462-ZM3-003

ROPE, RECOIL STARTER (#3.5X40")

$5.99

$

In Stock, only 1 left!

0

10

Honda 90012-ZM3-003

SCREW, SETTING

$1.99

$

In Stock, Qty 5

0

11

Honda 90018-Z0H-003

BOLT, SOCKET (5X16)

Note: Use up to Engine SN 2351473.

$0.99

$

In Stock, only 3 left!

0

11

Honda 90018-Z3E-901

BOLT, SOCKET (5X16)

Note: Use from Engine SN 2351474.

$4.99

$

Usually ships in 3-6 days

0

12

Honda 91504-ZM3-003

COLLAR

$1.99

$

In Stock, only 3 left!

0

13

Honda 91506-ZM3-000

COLLAR A, HEAD COVER

$1.99

$

In Stock, only 4 left!

0
