FG110 K1 AT/A (FAAA) - Honda 9" Tiller, Made in USA (SN: FAAA-1600001 - FAAA-9999999) FUEL TANK Parts Diagram

9" Tiller, Made in USA

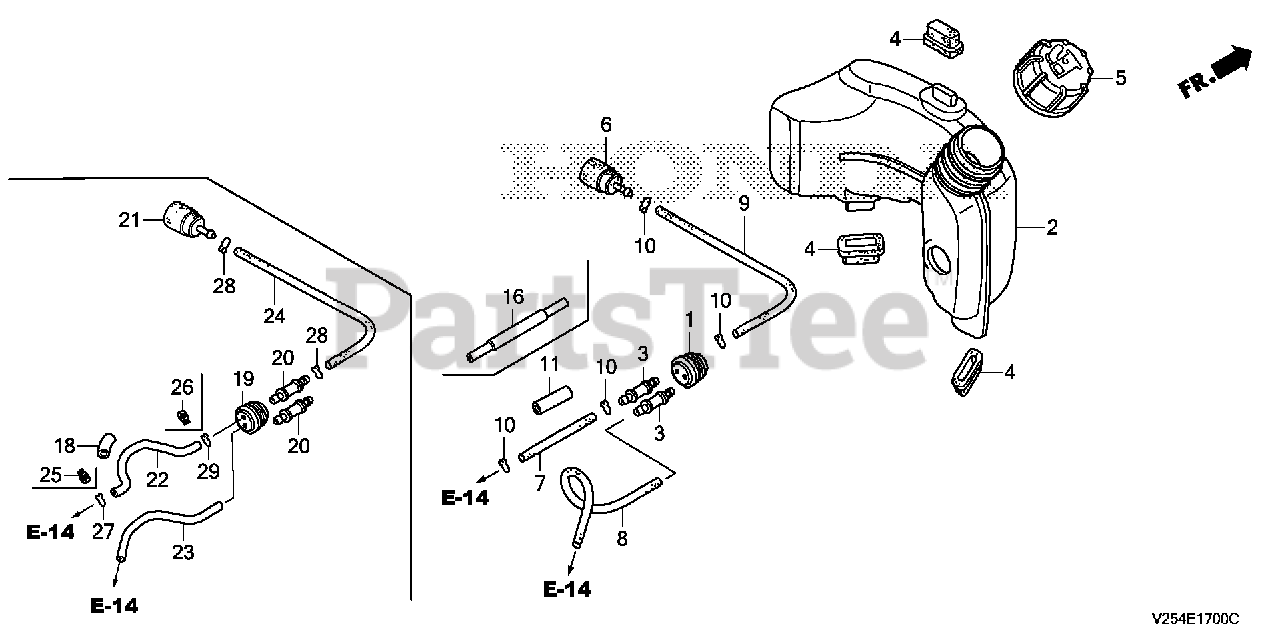

FUEL TANK Parts Diagram

  • Title
2

Honda 17511-Z6J-841

TANK, FUEL

$80.99

$

In Stock, only 1 left!

0

4

Honda 17533-Z0H-000

RUBBER, TANK MOUNTING

$1.99

$

In Stock, Qty 20+

0

5

Honda 17620-ZM3-073

CAP ASSY., FUEL TANK

$13.99

$

Usually ships in 3-6 days

0

18

Honda 16865-Z6J-010

PROTECTOR, TUBE

$2.99

$

In Stock, only 2 left!

0

19

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

$4.49

$

In Stock, Qty 12

0

20

Honda 17519-Z6J-003

JOINT, FUEL TANK

$2.49

$

In Stock, Qty 8

0

21

Honda 17672-Z0H-003

SEE PART DETAILS - PRI; FILTER, FUEL

$6.99

$

Usually ships in 3-6 days

0

22

Honda 17701-Z6J-013

TUBE, FUEL

$

$

Not available

23

Honda 17702-Z6K-003

TUBE, FUEL RETURN

$1.99

$

In Stock, only 4 left!

0

24

Honda 17703-Z0H-821

TUBE A, FUEL

$5.99

$

In Stock, only 3 left!

0

25

Honda 90601-Z6J-801

CLAMP, TUBE (D5.5)

$0.99

$

In Stock, Qty 10

0

26

Honda 90601-Z6J-801

CLAMP, TUBE (D5.5)

$0.99

$

In Stock, Qty 10

0

28

Honda 91401-Z3E-000

CLIP, TUBE (B1 5)

$0.99

$

In Stock, Qty 8

0
