FG110 K1 AT/A (FAAA) - Honda 9" Tiller, Made in USA (SN: FAAA-1600001 - FAAA-9999999) DE-THATCHER KIT (FG110K1) Parts Diagram

9" Tiller, Made in USA

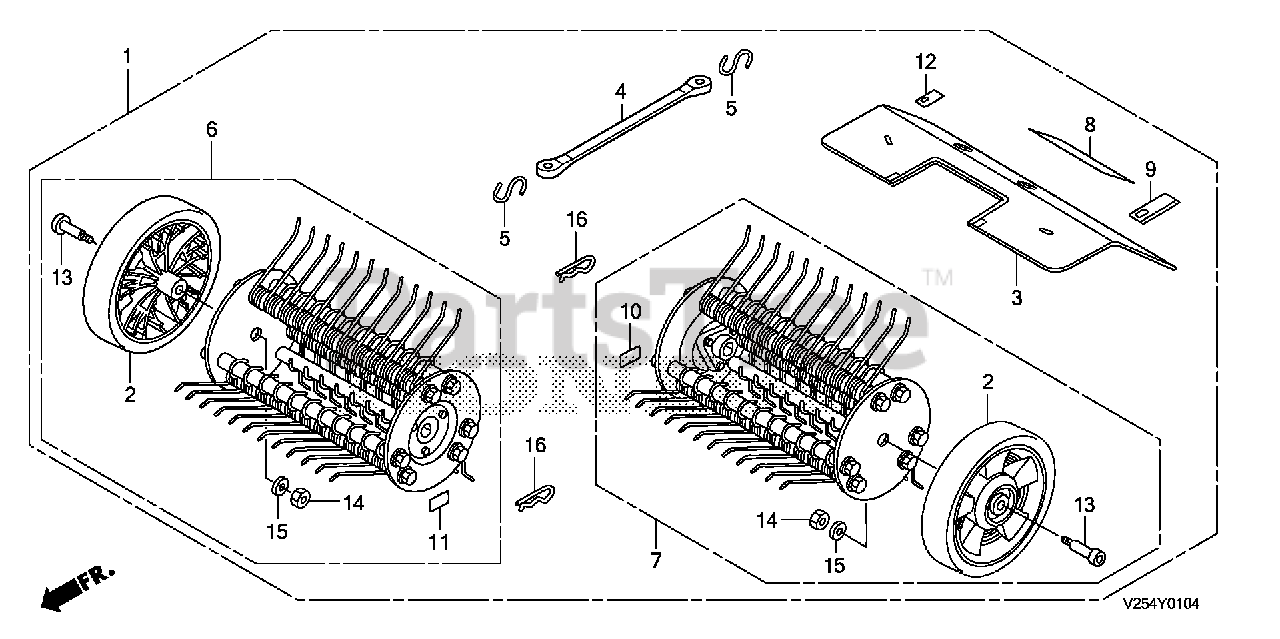

DE-THATCHER KIT (FG110K1) Parts Diagram

  • Title

1

Honda 06729-V25-000

SEE PART DETAILS - PRI; DE-THATCHER KIT (USA)
(Superseded to 06720-V25-000)

Note: (Optional).

$317.99

$

Usually ships in 3-6 days

0

2

Honda 42710-V25-800

WHEEL, RR. (NOT AVAILABLE)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

3

Honda 65140-V25-300

FENDER, DE-THATCHER

Note: (Optional).

$

$

Currently unavailable

4

Honda 65154-V25-300

STRAP, FENDER (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

5

Honda 65159-V25-300

HOOK, S (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

6

Honda 72780-V25-300

DE-THATCHER, R. (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

7

Honda 72790-V25-300

DE-THATCHER, L. (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

8

Honda 87406-V25-030

LABEL, TINE DANGER (ENGLISH)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 87644-V25-010

MARK, OIL LEVEL CHECK (ENGLISH)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 87652-V25-300

DECAL, L. (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

11

Honda 87653-V25-300

DECAL, R. (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

12

Honda 87657-V06-000

MARK, DE-THATCHER NOTICE (ENGLISH)

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

13

Honda 90105-V25-300

BOLT, SHOULDER (3/8-16X1-1/2IN) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

14

Honda 90304-VE6-M00

NUT, CENTERLOCK (3/8-16)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90502-V25-300

WASHER, LOCK (3/8IN) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

16

Honda 90753-V25-000

PIN, LOCK (17MM)

Note: (Optional).

$2.99

$

In Stock, only 2 left!

0
