FG110 AT (FAAA) - Honda 9" Tiller, Made in USA (SN: FAAA-1000001 - FAAA-1199999) DE-THATCHER KIT Parts Diagram

9" Tiller, Made in USA

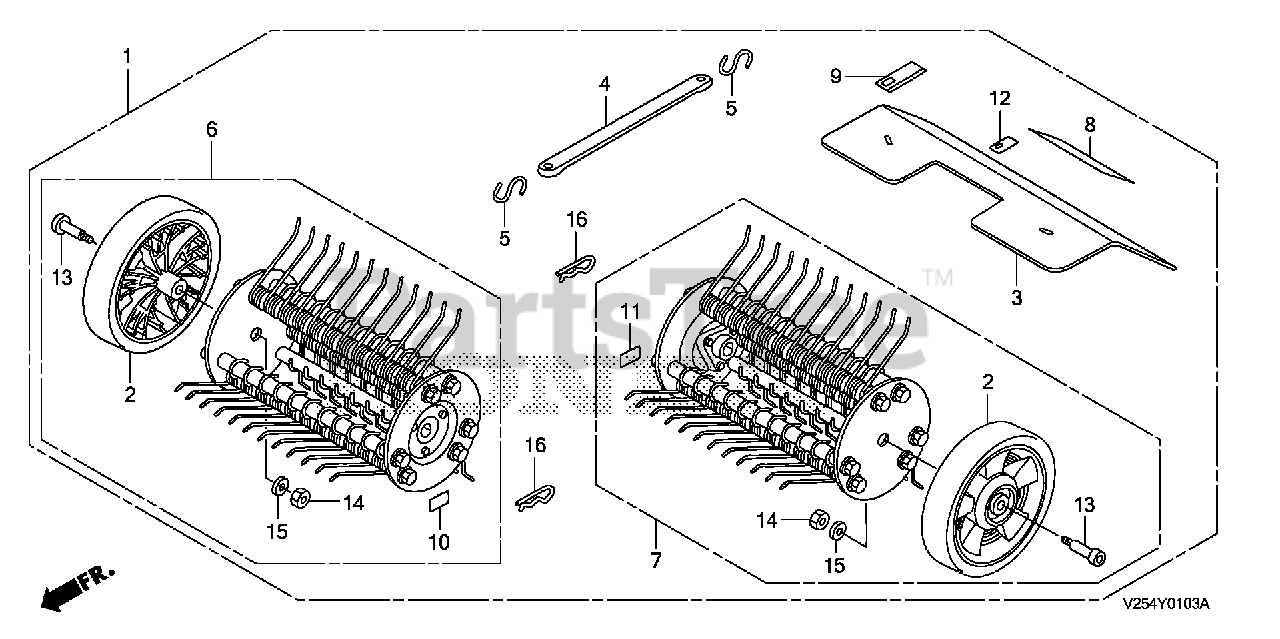

DE-THATCHER KIT Parts Diagram

  • Title

1

Honda 06729-V25-003

DE-THATCHER KIT (USA) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

2

Honda 42710-V25-000

SEE PART DETAILS - PRI; WHEEL, RR.

Note: (Optional).

$4.99

$

In Stock, Qty 5

0

3

Honda 65144-V06-003

FENDER, DE-THATCHER (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

4

Honda 65154-V06-003

STRAP, FENDER

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

5

Honda 65159-V06-003

HOOK, S (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

6

Honda 72780-V25-003

DE-THATCHER, R. (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

7

Honda 72790-V25-003

DE-THATCHER, L. (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

8

Honda 87406-V25-000

LABEL, TINE DANGER (ENGLISH)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

9

Honda 87644-V25-000

MARK, OIL LEVEL CHECK (ENGLISH)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

10

Honda 87651-V06-003

DECAL, R. (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

11

Honda 87652-V06-003

DECAL, L. (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

12

Honda 87657-V06-000

MARK, DE-THATCHER NOTICE (ENGLISH)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

13

Honda 90111-V06-003

BOLT, SHOULDER (3/8")

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90304-V06-003

NUT (3/8")

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

15

Honda 90511-V06-003

WASHER, LOCK (3/8")

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

16

Honda 90753-V25-000

SEE PART DETAILS - PRI; PIN, LOCK (17MM)

Note: (Optional).

$2.99

$

In Stock, only 2 left!

0
