FG110 A (FAAA) - Honda 9" Tiller, Made in USA (SN: FAAA-1000001 - FAAA-1199999) TRANSMISSION Parts Diagram

9" Tiller, Made in USA

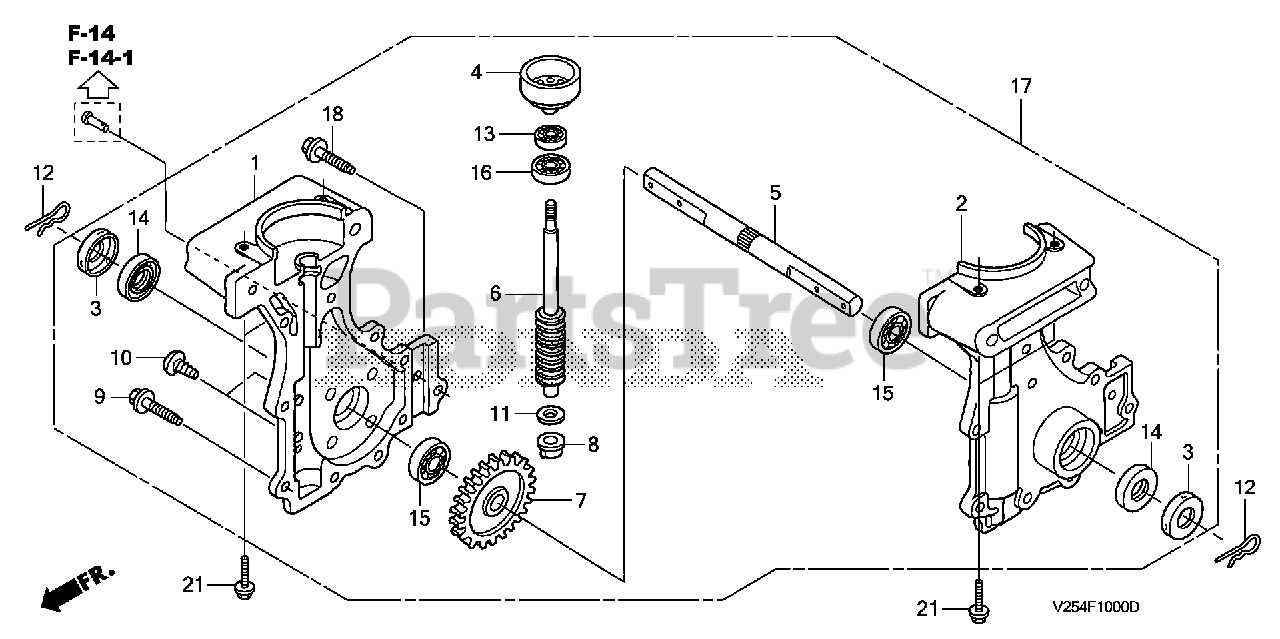

TRANSMISSION Parts Diagram

  • Title

1

Honda 21111-V25-000

CASE, R. TRANSMISSION

$25.99

$

Usually ships in 3-6 days

0

2

Honda 21211-V25-000

CASE, L. TRANSMISSION

$25.99

$

Usually ships in 3-6 days

0

3

Honda 21912-V25-000

GUARD, GRASS

$5.99

$

Usually ships in 3-6 days

0

4

Honda 22100-V25-020

CLUTCH OUTER

$18.99

$

In Stock, only 1 left!

0

5

Honda 23373-V25-000

SHAFT, TINE

$18.99

$

Usually ships in 3-6 days

0

6

Honda 23421-V25-000

GEAR, DRIVE

$41.99

$

In Stock, only 1 left!

0

7

Honda 23431-V25-000

GEAR, DRIVEN (34T)

$127.99

$

Usually ships in 3-6 days

0

8

Honda 41417-V25-000

BUSH, DRIVESHAFT

$5.99

$

Usually ships in 3-6 days

0

9

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90103-V25-000

SCREW, SELF-TAPPING (1/4-20X1/2)

$0.99

$

In Stock, Qty 8

0

11

Honda 90504-VH7-A00

WASHER (10X24)

$0.99

$

In Stock, Qty 10

0

12

Honda 90753-V25-000

SEE PART DETAILS - PRI; PIN, LOCK (17MM)

$2.99

$

In Stock, only 2 left!

0

13

Honda 91051-V25-000

BEARING, RADIAL BALL (628)

$22.99

$

Usually ships in 3-6 days

0

14

Honda 91201-V25-000

OIL SEAL (17X40X8)

$3.99

$

In Stock, only 2 left!

0

15

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0

16

Honda 96150-62000-10

BEARING, RADIAL BALL (6200)

$16.99

$

In Stock, only 1 left!

0

17

Honda 20001-V25-000

SEE PART DETAILS - SUP; TRANSMISSION ASSY.
(Superseded to 20001-V25-020)

$159.99

$

Usually ships in 3-6 days

0

17

Honda 20001-V25-020

SEE PART DETAILS - PRI; TRANSMISSION ASSY.

$159.99

$

Usually ships in 3-6 days

0

18

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0
