FG110 A (FAAA) - Honda 9" Tiller, Made in USA (SN: FAAA-1000001 - FAAA-1199999) HANDLEBAR & THROTTLE LEVER Parts Diagram

9" Tiller, Made in USA

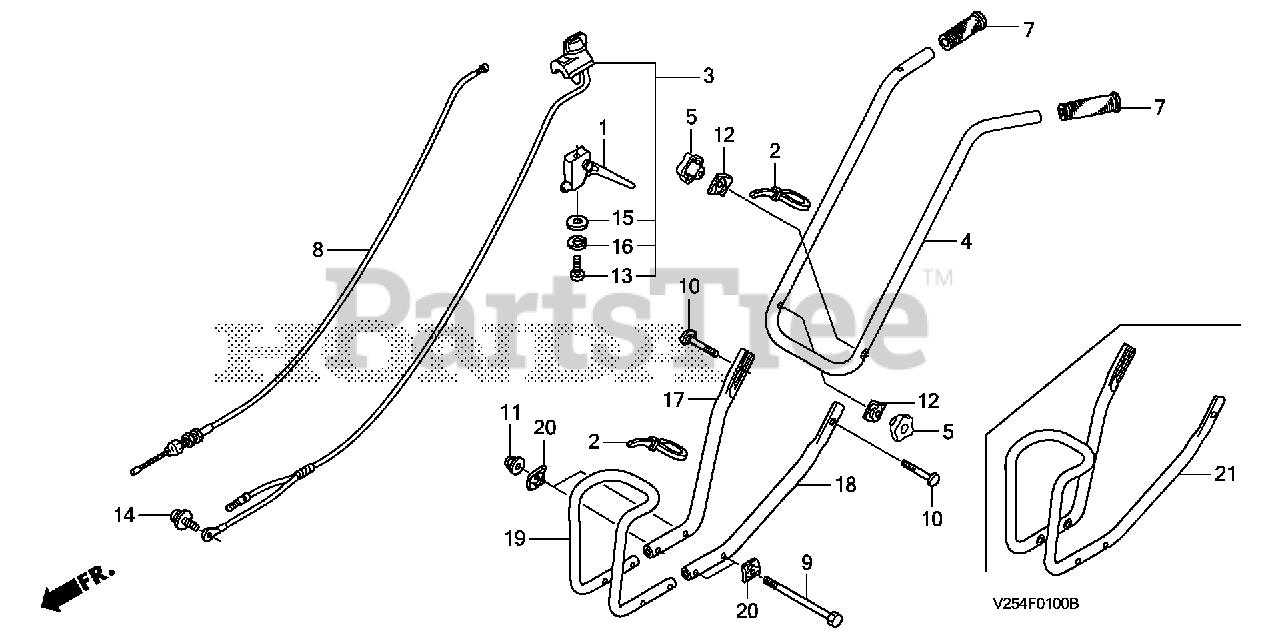

HANDLEBAR & THROTTLE LEVER Parts Diagram

  • Title

1

Honda 17850-V25-000

LEVER ASSY., THROTTLE

$7.99

$

In Stock, only 1 left!

0

2

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 10

0

3

Honda 35120-V06-013

SWITCH ASSY., ENGINE STOP

$18.99

$

In Stock, only 3 left!

0

4

Honda 53111-V25-000

PIPE, HANDLE (UPPER)

$37.99

$

Usually ships in 3-6 days

0

5

Honda 53125-VE1-R00

GRIP, HANDLE JOINT

$3.49

$

In Stock, Qty 5

0

7

Honda 53165-V25-000

GRIP, HANDLE

$3.49

$

In Stock, only 2 left!

0

8

Honda 54510-V25-000

CABLE, CLUTCH

$7.49

$

In Stock, only 2 left!

0

9

Honda 90101-V25-000

BOLT, HEX. (6X160)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90102-V25-000

BOLT, HANDLE HOLDER

$1.99

$

In Stock, only 2 left!

0

11

Honda 90303-V10-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 14

0

12

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 12

0

13

Honda 93500-03012-0A

SCREW, PAN (3X12)

$1.49

$

In Stock, Qty 6

0

14

Honda 93893-05012-00

SCREW-WASHER (5X12)

$1.99

$

In Stock, only 3 left!

0

15

Honda 94101-03800

WASHER, PLAIN (3MM)

$1.49

$

In Stock, only 3 left!

0

16

Honda 94111-03000

WASHER, SPRING (3MM)

$1.49

$

In Stock, Qty 9

0

17

Honda 53151-V25-000

PIPE, R. HANDLE (LOWER)

$19.99

$

Usually ships in 3-6 days

0

18

Honda 53161-V25-000

PIPE, L. HANDLE (LOWER)

$27.99

$

Usually ships in 3-6 days

0

19

Honda 68111-V25-000

HANDLE, CARRY

$49.99

$

Usually ships in 3-6 days

0

20

Honda 90501-V25-000

WASHER, FRAME JOINT

$0.99

$

In Stock, Qty 6

0
