FG100 A1/A (FZCV) - Honda Tiller, Made in USA (SN: FZCV-6000001 - FZCV-9999999) FENDER + WHEEL (6081152-) Parts Diagram

Tiller, Made in USA

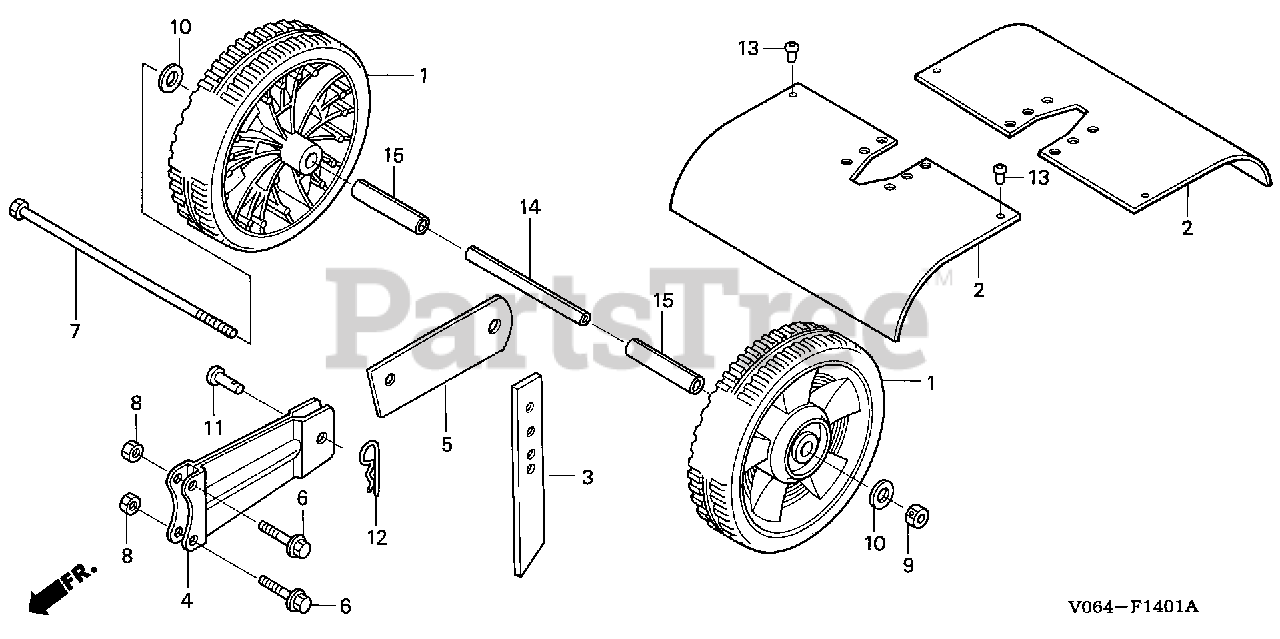

FENDER + WHEEL (6081152-) Parts Diagram

  • Title

1

Honda 42710-V06-003

SEE PART DETAILS - SUP; WHEEL
(Superseded to 42710-V25-000)

$4.99

$

In Stock, Qty 5

0

1

Honda 42710-V25-000

SEE PART DETAILS - PRI; WHEEL, RR.

$4.99

$

In Stock, Qty 5

0

2

Honda 65141-V06-003

FENDER, FR.

$21.99

$

Usually ships in 3-6 days

0

3

Honda 72481-V06-003

BAR, DRAG

$51.99

$

In Stock, Qty 7

0

4

Honda 72491-V06-003

HOLDER, DRAG BAR

$170.99

$

Usually ships in 3-6 days

0

5

Honda 72494-V06-000

BAR, WHEEL

$70.99

$

Usually ships in 3-6 days

0

6

Honda 90103-V06-003

SCREW (1/4-20X1)

$0.99

$

Usually ships in 3-6 days

0

7

Honda 90112-V06-000

BOLT, HEX. (3/8-16X8)

$2.99

$

In Stock, only 1 left!

0

8

Honda 90301-V06-003

NUT (1/4-20)

$0.99

$

In Stock, Qty 8

0

9

Honda 90304-VE6-M00

NUT, CENTERLOCK (3/8-16)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90512-VG5-000

WASHER, FLAT (3/8")

$0.99

$

In Stock, only 2 left!

0

11

Honda 90751-V06-003

PIN (5/16X7/8)

$0.99

$

In Stock, Qty 7

0

12

Honda 90752-V06-003

PIN, LOCK

$0.99

$

Usually ships in 3-6 days

0

13

Honda 90758-V06-003

RIVET (5/32X1/8)

$0.99

$

Usually ships in 3-6 days

0

14

Honda 91551-V06-000

COLLAR, WHEEL (INNER)

$

$

Not available

15

Honda 91552-V06-000

COLLAR, WHEEL (OUTER)

$13.99

$

In Stock, only 1 left!

0
