FE400D-FS04 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

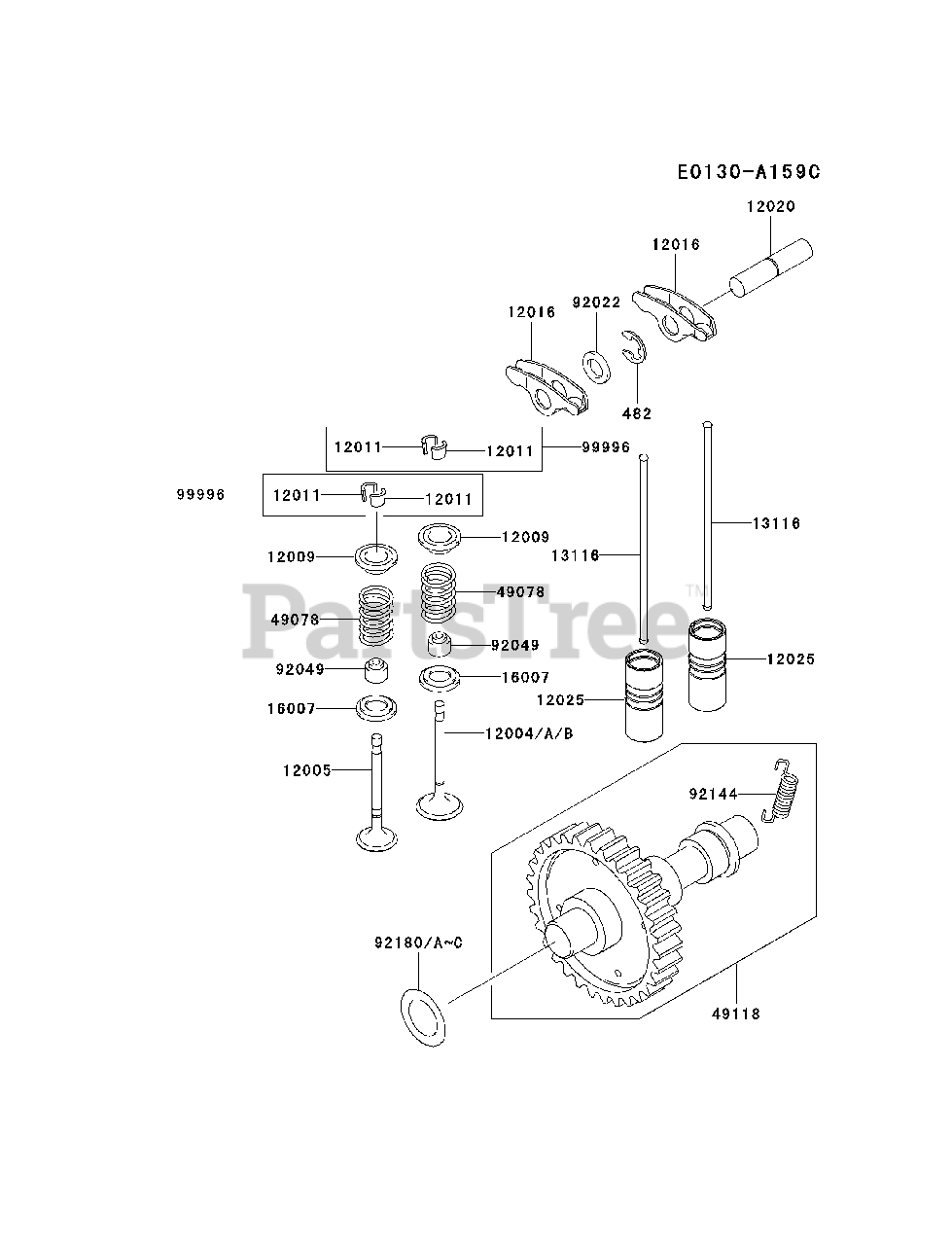

VALVE/CAMSHAFT Parts Diagram

  • Title

12004A

Kawasaki 12004-2120

VALVE-INTAKE
(Superseded to 12004-2102)

$35.99

$

Usually ships in 2-5 days

0

12005

Kawasaki 12005-2091

VALVE-EXHAUST

$44.99

$

Usually ships in 2-5 days

0

12009

Kawasaki 12009-2060

RETAINER-VALVE SPRING

$5.99

$

In Stock, Qty 6

0

12011

Kawasaki 12011-2052

COLLET

$2.99

$

In Stock, Qty 5

0

12016

Kawasaki 12016-2061

ARM-ROCKER

$11.99

$

In Stock, only 3 left!

0

12020

Kawasaki 12020-2060

SHAFT-ROCKER

$6.99

$

Usually ships in 2-5 days

0

12025

Kawasaki 12025-2003

ADJUSTER-LASH
(Superseded to 12025-2001)

$47.99

$

Usually ships in 2-5 days

0

13116

Kawasaki 13116-2073

ROD-PUSH

$11.99

$

Usually ships in 2-5 days

0

16007

Kawasaki 16007-2052

SEAT-SPRING

$1.49

$

In Stock, Qty 8

0

49078

Kawasaki 49078-2070

SPRING-ENGINE VALVE

$6.99

$

Usually ships in 2-5 days

0

49118

Kawasaki 49118-2140

CAMSHAFT-COMP

$181.99

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2397

WASHER,12.1X19X1.6

$0.99

$

In Stock, Qty 5

0

92049

Kawasaki 92049-2100

SEAL-OIL,VSB 7X12X5.5X9.7

$5.49

$

In Stock, only 3 left!

0

92144

Kawasaki 92144-2323

SPRING

$3.99

$

Usually ships in 2-5 days

0

92180

Kawasaki 92180-2017

SHIM,T=0.3

$4.49

$

In Stock, only 1 left!

0

92180A

Kawasaki 92180-2018

SHIM,T=0.4

$8.99

$

In Stock, only 1 left!

0

92180B

Kawasaki 92180-2019

SHIM,T=0.5

$8.99

$

Usually ships in 2-5 days

0

92180C

Kawasaki 92180-2063

SHIM,T=0.2

$

$

Not available

99996

Kawasaki 99996-2077

KIT,COLLET

$1.99

$

Usually ships in 2-5 days

0

482

Kawasaki 482J0100

CIRCLIP-TYPE-E,10MM
(Superseded to 3100723)

$

$

Not available
