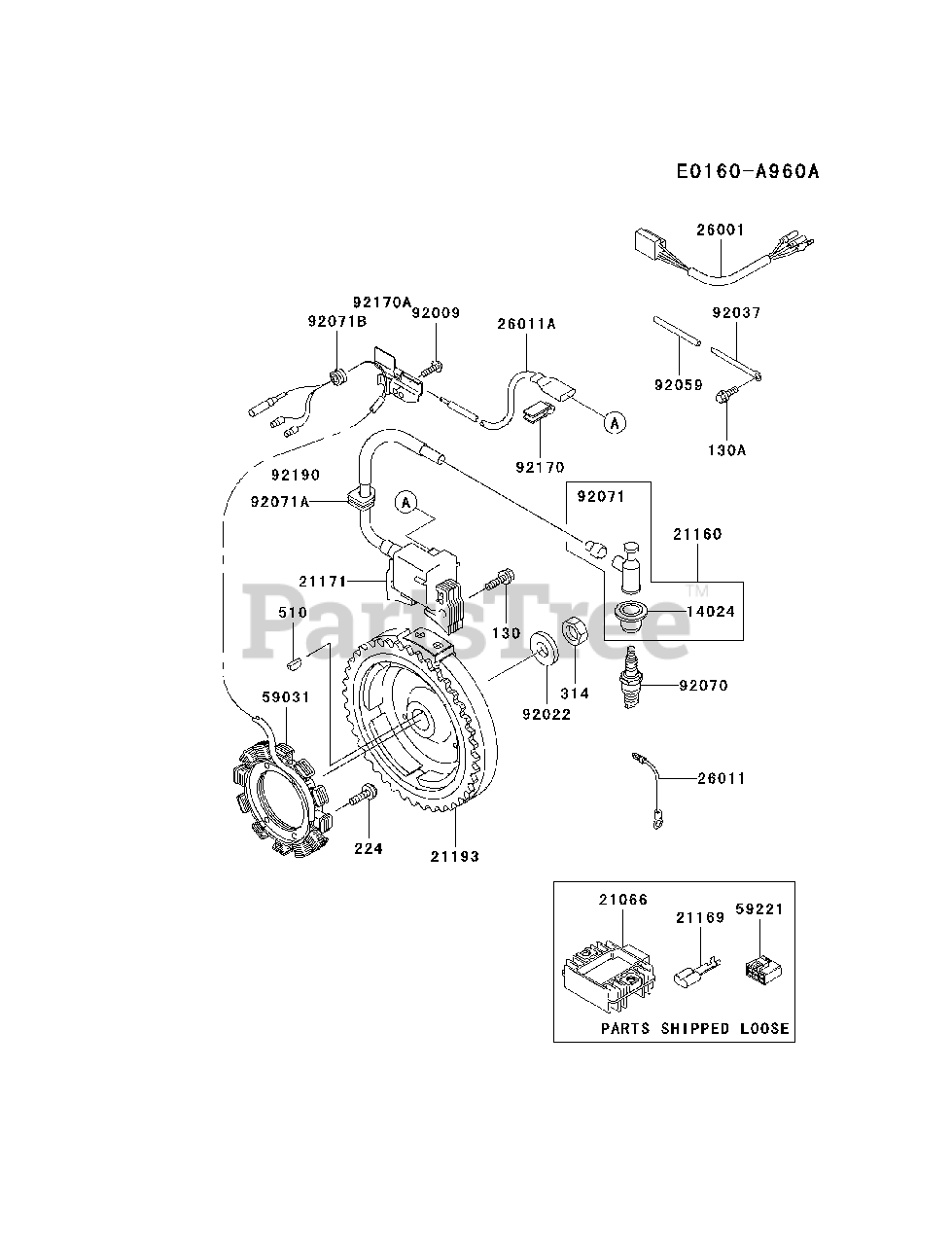

FE400D-DS04 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

14024

Kawasaki 14024-2234

COVER

$3.49

$

In Stock, only 1 left!

0

21066

Kawasaki 21066-2070

REGULATOR-VOLTAGE

$131.99

$

In Stock, only 3 left!

0

21160

Kawasaki 21160-2051

CAP-ASSY-PLUG

$20.99

$

In Stock, only 1 left!

0

21169

Kawasaki 21169-2055

TERMINAL

$1.49

$

Usually ships in 2-5 days

0

21171

Kawasaki 21171-2207

COIL-ASSY-IGNITION

$119.99

$

In Stock, Qty 5

0

21193

Kawasaki 21193-2128

FLYWHEEL-ASSY
(Superseded to 21193-2135)

$279.99

$

In Stock, only 2 left!

0

26001

Kawasaki 26001-2370

HARNESS

$11.99

$

In Stock, only 1 left!

0

26011

Kawasaki 26011-1069

WIRE-LEAD

$

$

Currently unavailable

26011A

Kawasaki 26011-2333

WIRE-LEAD,L=300
(Superseded to 26011-2345)

$7.99

$

Usually ships in 2-5 days

0

59031

Kawasaki 59031-2088

COIL-CHARGING
(Superseded to 59031-2084)

$121.99

$

Usually ships in 2-5 days

0

59221

Kawasaki 59221-2099

CONNECTOR-CORD

$1.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92022

Kawasaki 92022-2178

WASHER

$2.99

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-2006

CLAMP

$1.49

$

Usually ships in 2-5 days

0

92059

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2077

PLUG-SPARK,BPR5ES,SOLID
(Superseded to 4006)

$3.99

$

In Stock, Qty 20+

0

92071

Kawasaki 92071-2008

GROMMET

$1.49

$

Usually ships in 2-5 days

0

92071A

Kawasaki 92071-2112

GROMMET

$6.99

$

Usually ships in 2-5 days

0

92071B

Kawasaki 92071-2125

GROMMET

$1.99

$

In Stock, only 1 left!

0

92170

Kawasaki 92170-2017

CLAMP

$4.49

$

Usually ships in 2-5 days

0

92170A

Kawasaki 92170-2072

CLAMP

$

$

Not available

92190

Kawasaki 92190-2069

TUBE,7.5X10X35

$0.99

$

In Stock, only 4 left!

0

130

Kawasaki 130B0525

BOLT-FLANGED,5X25
(Superseded to 130AA0525)

$0.99

$

In Stock, only 1 left!

0

130A

Kawasaki 130G0612

BOLT-FLANGED,6X12
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

224

Kawasaki 224B0620

SCREW-PAN-WP-CROS
(Superseded to 224AA0620)

$0.99

$

In Stock, only 2 left!

0

314

Kawasaki 314G1800

NUT-HEX-FINE

$2.49

$

In Stock, only 2 left!

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
