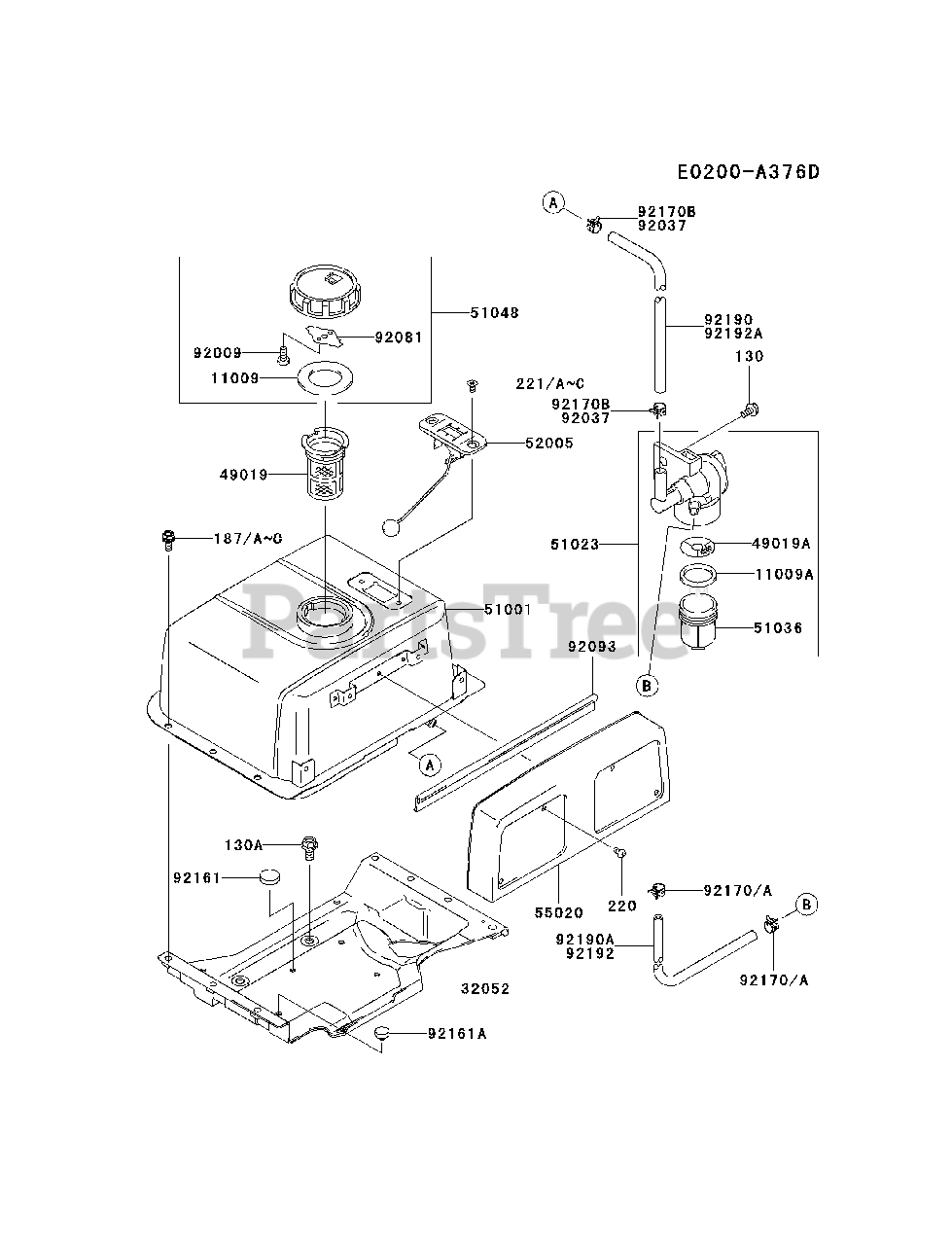

FE400D-BS01 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title
11009

Kawasaki 11009-2115

GASKET
(Superseded to 11009-2044)

$2.49

$

Usually ships in 2-5 days

0

11009A

Kawasaki 11009-2876

GASKET,FUEL TAP

$4.99

$

In Stock, Qty 5

0

32052

Kawasaki 32052-2221-9H

BRACKET-TANK

$

$

Not available

49019

Kawasaki 49019-2051

FILTER-FUEL
(Superseded to 49019-2003)

$6.99

$

In Stock, only 1 left!

0

49019A

Kawasaki 49019-2095

FILTER-FUEL
(Superseded to 49019-2101)

$6.49

$

In Stock, Qty 7

0

51001

Kawasaki 51001-2302-9H

TANK-COMP-FUEL

$

$

Not available

51023

$34.99

$

In Stock, only 3 left!

0

51036

Kawasaki 51036-2071

CUP,FUEL TAP

$8.99

$

In Stock, Qty 7

0

51048

Kawasaki 51048-2055

CAP-ASSY-TANK
(Superseded to 51048-2071)

$12.99

$

Usually ships in 2-5 days

0

52005

$17.99

$

Usually ships in 2-5 days

0

$

$

Not available

92009

Kawasaki 92009-2021

SCREW
(Superseded to 314401-6732A)

$0.99

$

In Stock, only 3 left!

0

92037

Kawasaki 92037-1181

CLAMP,HOSE CLIP

$3.99

$

Usually ships in 2-5 days

0

92081

$2.49

$

In Stock, only 1 left!

0

92093

$9.49

$

Usually ships in 2-5 days

0

92161

$

$

Not available

92161A

$

$

Not available

92170

$

$

Not available

92192

Kawasaki 92192-2122

TUBE,6.2X13.2X120

$12.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-2123

TUBE,7X14X220

$

$

Not available

130

Kawasaki 130BA0612

BOLT-FLANGED,6X12
(Superseded to 92009-7008)

$1.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

187B

Kawasaki 187L0616

BOLT-UPSET-WSP,6X16
(Superseded to 187BB0616)

$1.49

$

Usually ships in 2-5 days

0

220

Kawasaki 220AA0508

SCREW-PAN-CROS,5X8
(Superseded to 220B0508)

$0.99

$

Usually ships in 2-5 days

0

221B

Kawasaki 221F0510

SCREW-CSK-CROS,5X10
(Superseded to 221AB0510)

$0.99

$

Usually ships in 2-5 days

0
