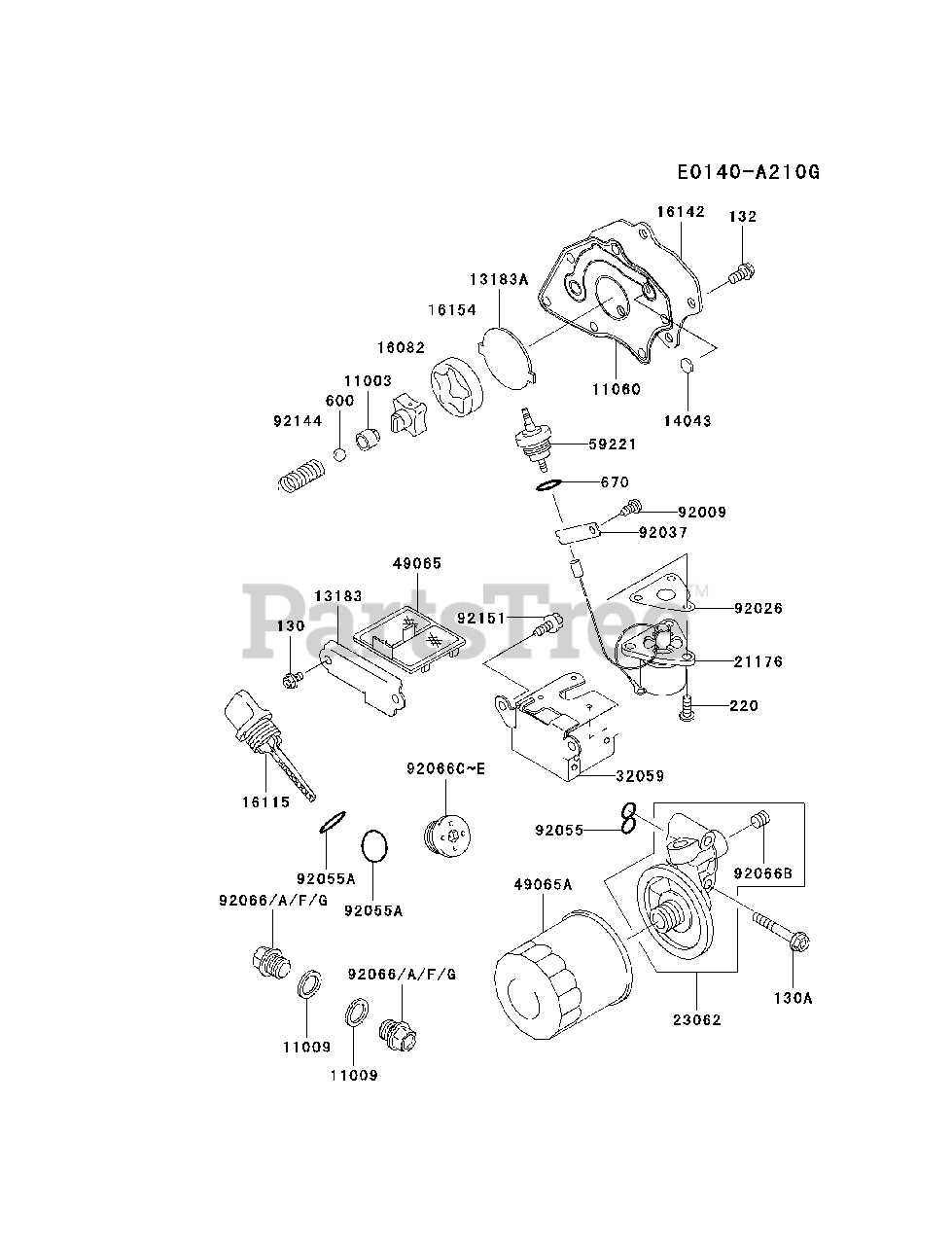

FE400D-AS01 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

LUBRICATION-EQUIPMENT Parts Diagram

  • Title
11003

Kawasaki 11003-2089

SEAT-VALVE

$7.49

$

In Stock, only 1 left!

0

11009

Kawasaki 11009-2175

GASKET,14.2X19X2
(Superseded to 317370-7883-00)

$1.99

$

In Stock, Qty 15

0

11060

$11.99

$

In Stock, Qty 20+

0

13183

Kawasaki 13183-2295

PLATE,OIL FILTER

$1.99

$

In Stock, Qty 10

0

13183A

Kawasaki 13183-2298

PLATE,OIL PUMP

$2.49

$

In Stock, only 3 left!

0

14043

$3.49

$

Usually ships in 2-5 days

0

16082

Kawasaki 16082-2062

PUMP-ASSY-OIL

$32.99

$

Usually ships in 2-5 days

0

16115

Kawasaki 16115-2079

CAP-OIL FILLER

$5.49

$

Usually ships in 2-5 days

0

16142

Kawasaki 16142-2067

COVER-PUMP

$9.49

$

In Stock, Qty 10

0

16154

Kawasaki 16154-2054

ROTOR-PUMP,OUT

$9.49

$

In Stock, Qty 5

0

21176

$57.99

$

Usually ships in 2-5 days

0

23062

Kawasaki 23062-6004

BRACKET-COMP

$56.99

$

In Stock, only 1 left!

0

32059

Kawasaki 32059-2085

BRACKET-SWITCH

$11.99

$

Usually ships in 2-5 days

0

49065

Kawasaki 49065-2068

FILTER-OIL

$7.99

$

In Stock, only 1 left!

0

49065A

Kawasaki 49065-2071

FILTER-OIL

$15.99

$

In Stock, Qty 20+

0

59221

Kawasaki 59221-2123

CONNECTOR-CORD
(Superseded to 59221-2054)

$51.99

$

In Stock, only 1 left!

0

92009

$0.99

$

In Stock, Qty 6

0

92026

$

$

Not available

92037

$0.99

$

Usually ships in 2-5 days

0

92055

$4.49

$

In Stock, Qty 12

0

92055A

Kawasaki 92055-2185

RING-O,20MM

$1.49

$

In Stock, only 2 left!

0

92066

Kawasaki 92066-2203

PLUG,DRAIN
(Superseded to 92066-2253)

$2.49

$

Usually ships in 2-5 days

0

92066B

$2.99

$

Usually ships in 2-5 days

0

92066C

Kawasaki 92066-2222

PLUG
(Superseded to 92066-2243)

$6.49

$

In Stock, only 1 left!

0

92066E

$6.49

$

In Stock, only 1 left!

0

92144

$1.99

$

Usually ships in 2-5 days

0

92151

$0.99

$

In Stock, Qty 10

0

130

Kawasaki 130AA0508

BOLT-FLANGED,5X8
(Superseded to 130B0508)

$0.99

$

In Stock, Qty 8

0

130A

Kawasaki 130BA0640

BOLT-FLANGED,6X40
(Superseded to 130B0640)

$0.99

$

In Stock, Qty 20+

0

132

Kawasaki 132BA0612

BOLT-FLANGED-SMALL,6X12
(Superseded to 92150-1599)

$1.49

$

Usually ships in 2-5 days

0

220

Kawasaki 220AA0412

SCREW-PAN-CROS,4X12
(Superseded to 214B0412)

$0.99

$

In Stock, Qty 6

0

600

Kawasaki 600A1000

BALL-STEEL,5/16"

$0.99

$

In Stock, Qty 7

0

670

Kawasaki 670B2015

O RING,15MM

$1.49

$

In Stock, only 4 left!

0
