FE350D-ES12 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

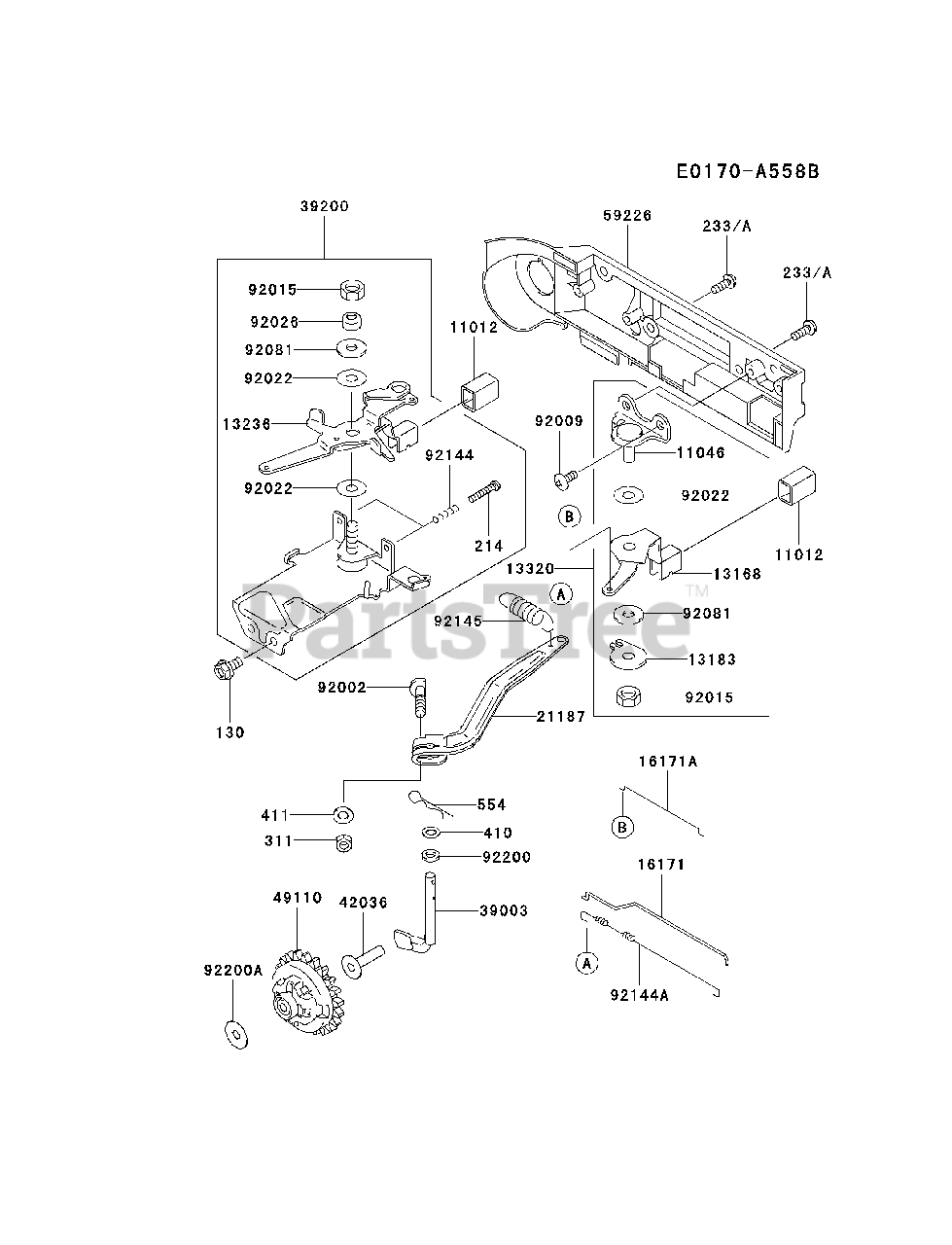

CONTROL-EQUIPMENT Parts Diagram

  • Title

$1.99

$

In Stock, only 2 left!

0

11046

$4.99

$

Usually ships in 2-5 days

0

13168

$3.49

$

Usually ships in 2-5 days

0

13183

$

$

Not available

13236

Kawasaki 13236-2116

LEVER-COMP

$9.99

$

Usually ships in 2-5 days

0

13320

Kawasaki 13320-2021

LEVER-ASSY

$10.99

$

Usually ships in 2-5 days

0

16171

$3.99

$

Usually ships in 2-5 days

0

16171A

Kawasaki 16171-2070

LINK
(Superseded to 16171-2060)

$6.99

$

Usually ships in 2-5 days

0

21187

$11.99

$

Usually ships in 2-5 days

0

39003

Kawasaki 39003-2076

ARM-PIVOT
(Superseded to 39003-2067)

$8.49

$

Usually ships in 2-5 days

0

39200

Kawasaki 39200-2065

PANEL-ASSY-CONTROL

$43.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-2060

SLEEVE
(Superseded to 42036-2059)

$4.99

$

In Stock, Qty 10

0

49110

Kawasaki 49110-2069

GOVERNOR-ASSY
(Superseded to 49110-2085)

$12.99

$

Usually ships in 2-5 days

0

59226

Kawasaki 59226-2224

PANEL-CONTROL

$16.99

$

Usually ships in 2-5 days

0

92002

$1.99

$

In Stock, Qty 6

0

92009

$0.99

$

In Stock, only 3 left!

0

92015

Kawasaki 92015-2051

NUT
(Superseded to 920151339)

$1.99

$

In Stock, only 1 left!

0

92022

$1.99

$

In Stock, only 3 left!

0

92026

$6.49

$

In Stock, Qty 5

0

92081

$0.99

$

In Stock, only 3 left!

0

92144

$5.49

$

Usually ships in 2-5 days

0

92144A

$9.99

$

Usually ships in 2-5 days

0

92145

$3.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

92200A

Kawasaki 92200-2036

WASHER,6.2X20X0.5

$1.49

$

In Stock, Qty 12

0

130

Kawasaki 130BA0612

BOLT-FLANGED,6X12
(Superseded to 92009-7008)

$1.99

$

In Stock, Qty 20+

0

214

Kawasaki 214AA0422

SCREW-PAN+-,4X22

$4.99

$

Usually ships in 2-5 days

0

233

Kawasaki 233AB0514

SCREW-PAN-WP+-,5X14

$0.99

$

In Stock, Qty 8

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 20+

0

410

Kawasaki 410AA0600

W-PLAIN-S,6MM
(Superseded to 410B0600)

$1.49

$

In Stock, Qty 5

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, Qty 12

0

554

Kawasaki 554DA0600

PIN-SNAP,1.2X21.2
(Superseded to 554A0600)

$1.49

$

In Stock, only 3 left!

0
