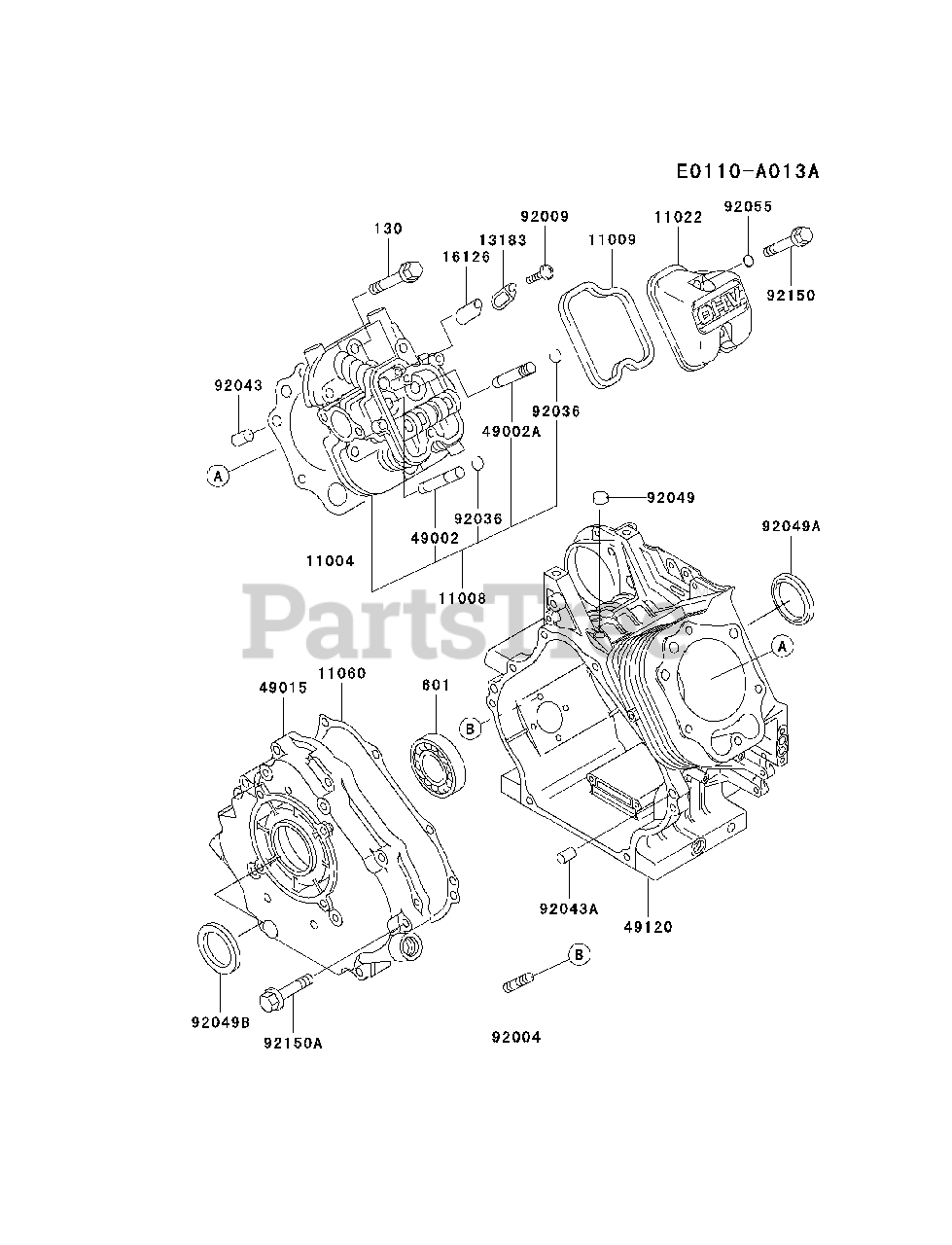

FE350D-BS00 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 11004-2118

GASKET-HEAD

$22.99

$

In Stock, Qty 6

0

11008

Kawasaki 11008-2098

HEAD-COMP-CYLINDER
(Superseded to 11008-2122)

$300.99

$

In Stock, only 1 left!

0

11009

Kawasaki 11009-2829

GASKET,ROCKER CASE

$9.49

$

In Stock, Qty 13

0

11022

Kawasaki 11022-6005

CASE-ROCKER

$42.99

$

In Stock, only 1 left!

0

11060

Kawasaki 11060-2151

GASKET,CRANKCASE COVER
(Superseded to 11061-2116)

$16.99

$

Usually ships in 2-5 days

0

13183

Kawasaki 13183-2299

PLATE

$1.49

$

In Stock, Qty 5

0

16126

Kawasaki 16126-2107

VALVE

$0.99

$

In Stock, only 4 left!

0

49002

Kawasaki 49002-2090

GUIDE-VALVE

$

$

Not available

49002A

Kawasaki 49002-2101

GUIDE-VALVE
(Superseded to 49002-2075)

$20.99

$

Usually ships in 2-5 days

0

49015

Kawasaki 49015-6137

COVER-CRANKCASE

$

$

Not available

49120

Kawasaki 49120-2250

CRANKCASE-COMP
(Superseded to 49120-2322)

$665.99

$

Usually ships in 2-5 days

0

92004

Kawasaki 92004-2083

STUD,6X14

$1.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92036

Kawasaki 92036-023

RING-SNAP

$0.99

$

In Stock, only 4 left!

0

92043

Kawasaki 92043-1037

PIN

$0.99

$

In Stock, Qty 20+

0

92043A

Kawasaki 92043-1263

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-2097

SEAL-OIL

$2.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-2211

SEAL-OIL

$15.99

$

In Stock, only 3 left!

0

92049B

Kawasaki 92049-2212

SEAL-OIL

$15.99

$

In Stock, Qty 6

0

92055

Kawasaki 92055-1343

RING-O

$0.99

$

In Stock, Qty 5

0

92150

Kawasaki 92150-2145

BOLT,6X35

$0.99

$

In Stock, Qty 10

0

92150A

Kawasaki 92150-2252

BOLT,8X45

$2.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130T0845

BOLT-FLANGED
(Superseded to 130CA0845)

$1.49

$

In Stock, Qty 5

0

601

Kawasaki 601A6207

BEARING,BALL

$21.99

$

In Stock, only 1 left!

0
