FE350D-AS18 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

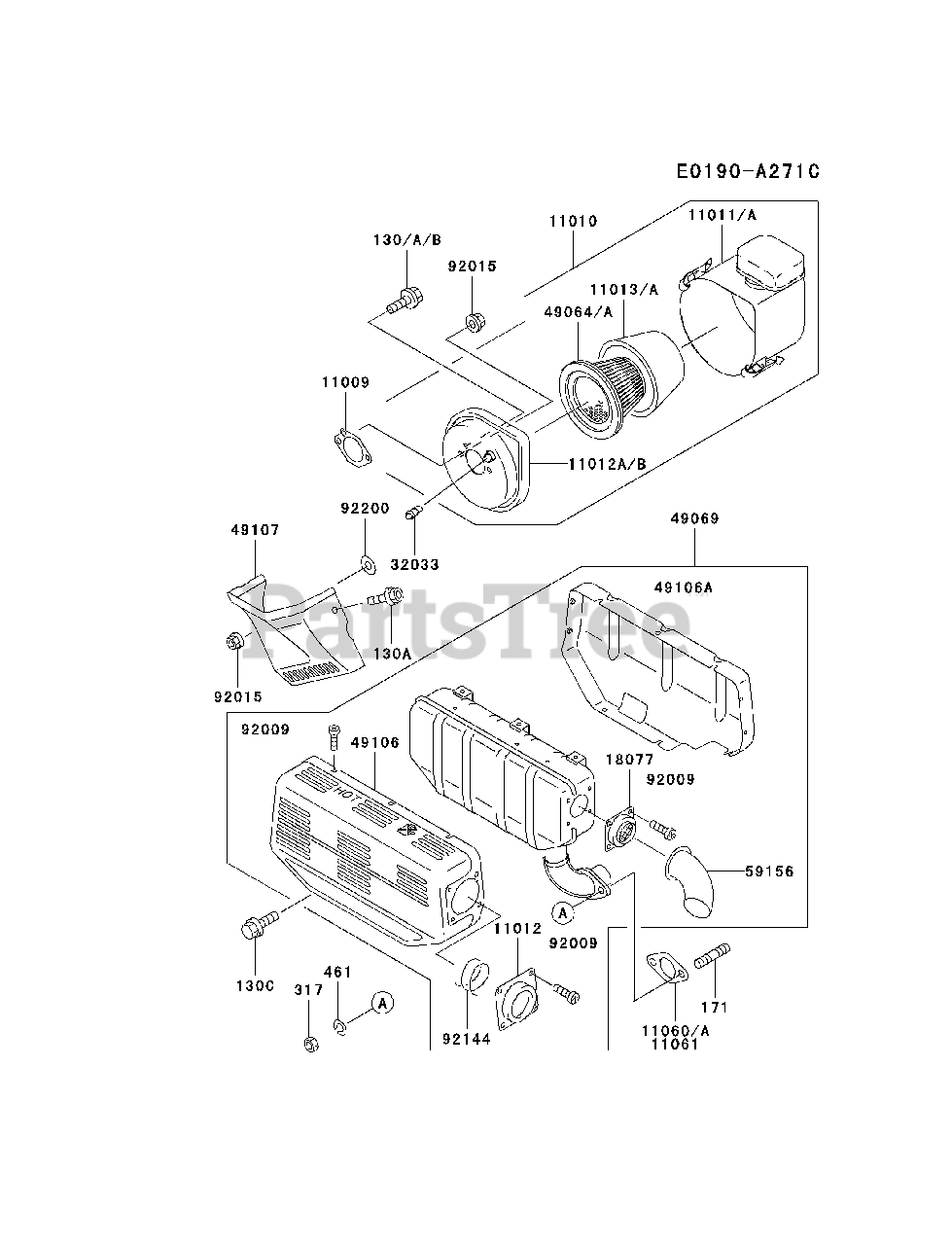

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11009

Kawasaki 11009-2925

GASKET,AIR FILTER
(Superseded to 11060-2334)

$1.99

$

In Stock, only 2 left!

0

11010

Kawasaki 11010-2522-9H

FILTER-ASSY-AIR

$161.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-2302-9H

CASE-AIR FILTER

$

$

Not available

11012

Kawasaki 11012-2286-9X

CAP,SPARK ARRESTER

$

$

Not available

11012B

Kawasaki 11012-2358

CAP,AIR FILTER

$40.99

$

Usually ships in 2-5 days

0

11013A

Kawasaki 11013-2159

ELEMENT-AIR FILTER

$13.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2149

GASKET,MUFFLER
(Superseded to 11061-2078)

$5.99

$

In Stock, Qty 20+

0

18077

Kawasaki 18077-2094

ARRESTER-SPARK

$12.99

$

Usually ships in 2-5 days

0

32033

Kawasaki 32033-2149

PIPE

$

$

Not available

49064A

Kawasaki 49064-2077

FILTER-AIR

$60.99

$

Usually ships in 2-5 days

0

49069

Kawasaki 49069-2293-9X

MUFFLER-ASSY

$363.99

$

Usually ships in 2-5 days

0

49106

Kawasaki 49106-2559-9X

COVER-MUFFLER

$66.99

$

Usually ships in 2-5 days

0

49106A

Kawasaki 49106-2560-9X

COVER-MUFFLER

$57.99

$

Usually ships in 2-5 days

0

49107

Kawasaki 49107-2135-9H

COVER-EXHAUST PIPE

$35.99

$

Usually ships in 2-5 days

0

59156

Kawasaki 59156-2230-9X

PIPE-TAIL
(Superseded to 59156-2230)

$25.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2322

SCREW

$0.99

$

In Stock, only 4 left!

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

92144

Kawasaki 92144-2262

SPRING

$4.99

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-2070

WASHER
(Superseded to 92022-2374)

$1.49

$

In Stock, only 4 left!

0

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 18

0

130A

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

130C

Kawasaki 130G0816

BOLT-FLANGED
(Superseded to 130BA0816)

$1.99

$

In Stock, only 4 left!

0

171

Kawasaki 171G0820

BOLT-STUD
(Superseded to 171BA0820)

$1.99

$

In Stock, Qty 6

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 18

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
