FE290D-ES20 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

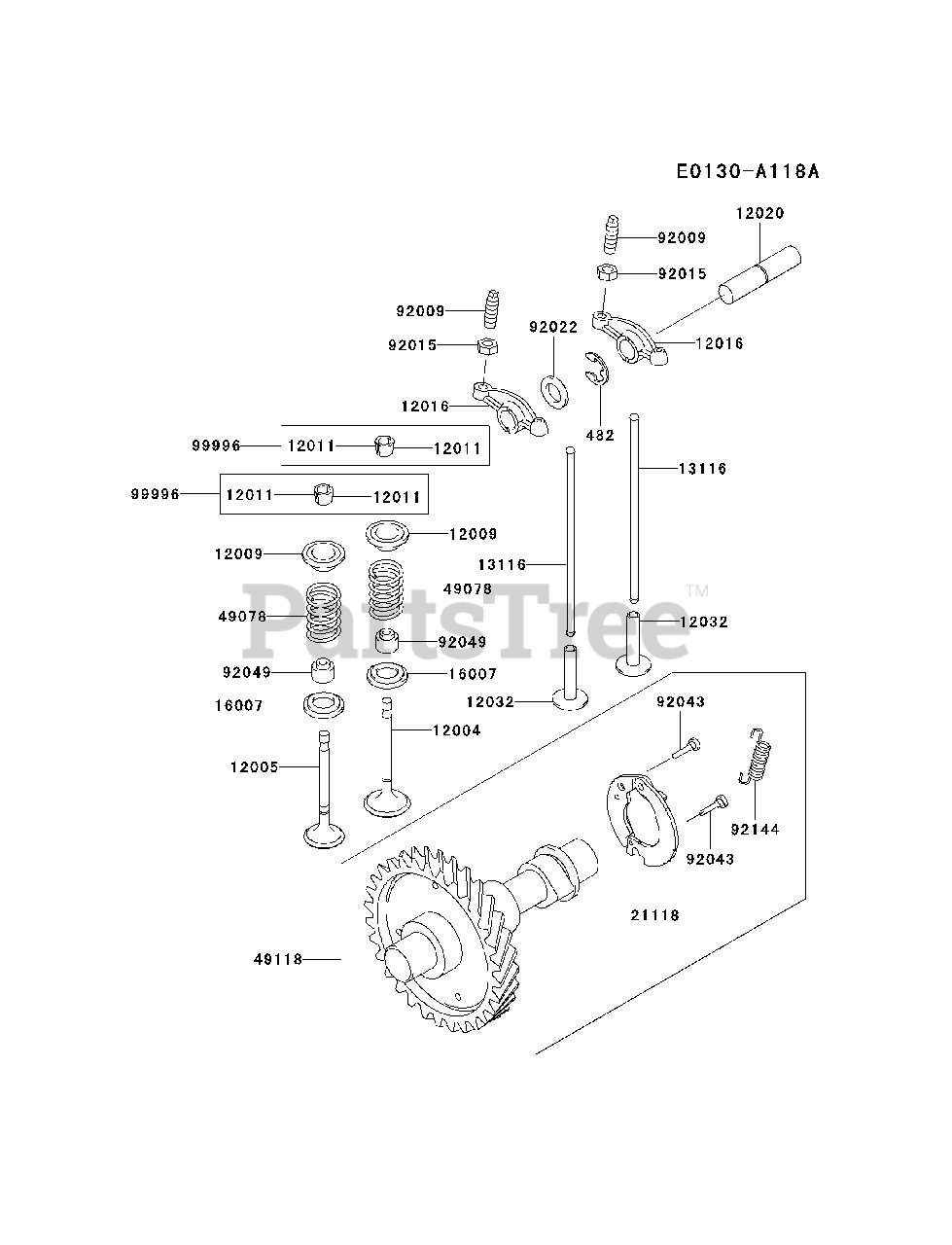

VALVE/CAMSHAFT Parts Diagram

  • Title

12004

Kawasaki 12004-2084

VALVE-INTAKE

$20.99

$

In Stock, only 1 left!

0

12005

Kawasaki 12005-2077

VALVE-EXHAUST

$34.99

$

In Stock, only 2 left!

0

12009

Kawasaki 12009-2060

RETAINER-VALVE SPRING

$5.99

$

In Stock, Qty 6

0

12011

Kawasaki 12011-2052

COLLET

$2.99

$

In Stock, Qty 5

0

12016

Kawasaki 12016-2058

ARM-ROCKER

$28.99

$

Usually ships in 2-5 days

0

12020

Kawasaki 12020-2060

SHAFT-ROCKER

$6.99

$

Usually ships in 2-5 days

0

12032

Kawasaki 12032-2060

TAPPET

$17.99

$

In Stock, only 2 left!

0

13116

Kawasaki 13116-2054

ROD-PUSH
(Superseded to 13116-0044)

$15.99

$

In Stock, only 2 left!

0

16007

Kawasaki 16007-2052

SEAT-SPRING

$1.49

$

In Stock, Qty 8

0

21118

Kawasaki 21118-2088

DECOMPRESSOR

$17.99

$

Usually ships in 2-5 days

0

49078

Kawasaki 49078-2060

SPRING-ENGINE VALVE

$4.99

$

In Stock, Qty 11

0

49118

Kawasaki 49118-2121

CAMSHAFT-COMP
(Superseded to 49118-2072)

$208.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-1109

SCREW

$2.49

$

In Stock, only 2 left!

0

92015

Kawasaki 92015-1137

NUT
(Superseded to 92210-1491)

$1.49

$

In Stock, only 2 left!

0

92022

Kawasaki 92022-2397

WASHER,12.1X19X1.6

$0.99

$

In Stock, Qty 5

0

92043

Kawasaki 92043-2113

PIN

$1.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 92049-2100

SEAL-OIL,VSB 7X12X5.5X9.7

$5.49

$

In Stock, only 4 left!

0

92144

Kawasaki 92144-2323

SPRING

$3.99

$

Usually ships in 2-5 days

0

99996

Kawasaki 99996-2077

KIT,COLLET

$1.99

$

Usually ships in 2-5 days

0

482

Kawasaki 482J0100

CIRCLIP-TYPE-E,10MM
(Superseded to 3100723)

$

$

Not available
