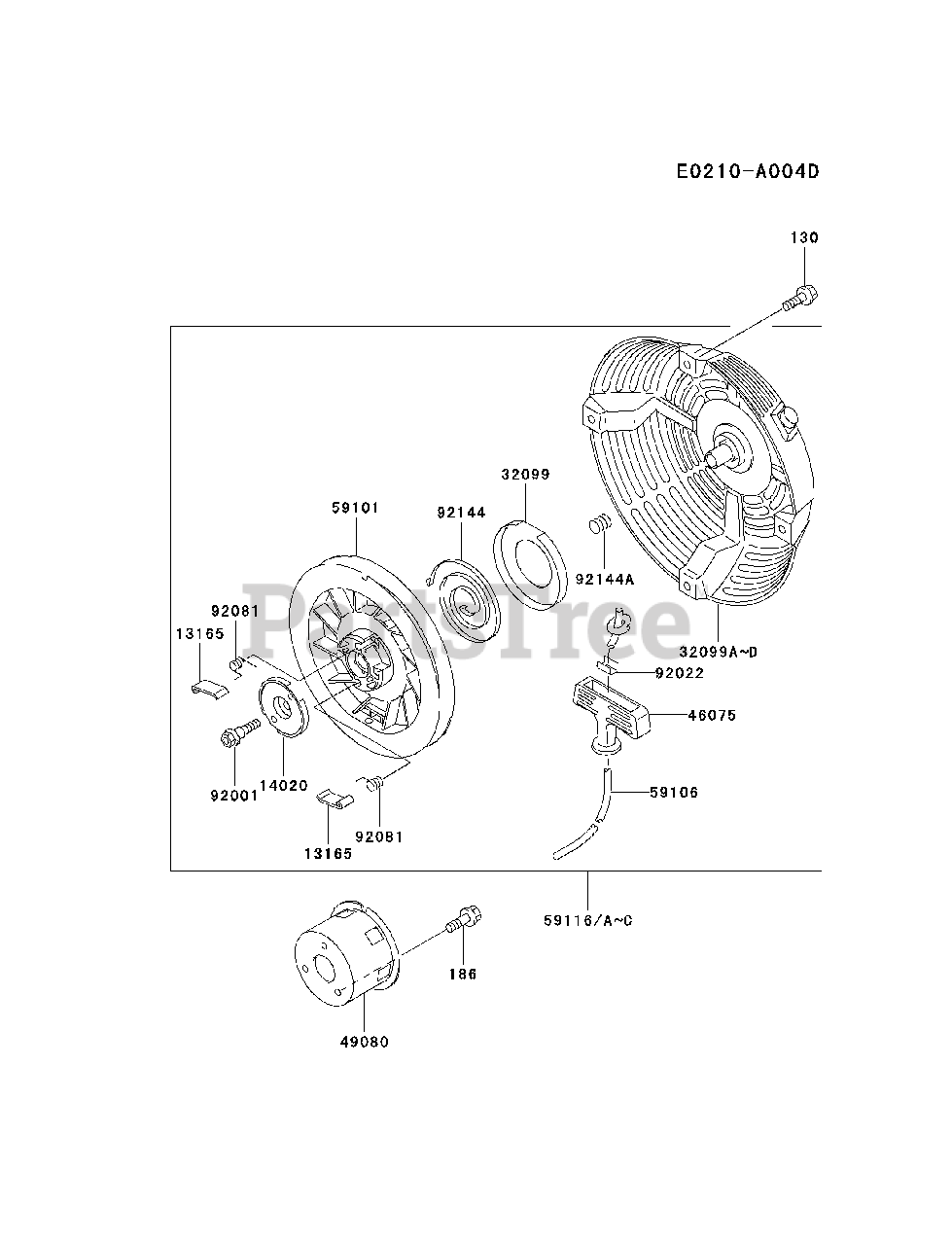

FE290D-DS03 - Kawasaki Engine STARTER Parts Diagram

Engine

STARTER Parts Diagram

  • Title

13165

Kawasaki 13165-2073

PAWL,RECOIL STARTER
(Superseded to 13165-2057)

$5.49

$

In Stock, only 2 left!

0

14020

Kawasaki 14020-2094

RETAINER,RECOIL STARTER

$10.99

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2193

CASE,SPRING

$4.99

$

Usually ships in 2-5 days

0

32099A

Kawasaki 32099-2219-YK

CASE,RECOIL STARTER
(Superseded to 32099-2219-9H)

$73.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-2092

GRIP,RECOIL STARTER

$8.49

$

In Stock, only 1 left!

0

49080

Kawasaki 49080-2154

PULLEY-STARTING

$14.99

$

Usually ships in 2-5 days

0

59101

Kawasaki 59101-2091

REEL,RECOIL STARTER

$28.99

$

Usually ships in 2-5 days

0

59106

Kawasaki 59106-2099

ROPE,4.5X1550

$10.99

$

Usually ships in 2-5 days

0

59116

Kawasaki 59116-2330-YK

STARTER-ASSY-RECOIL
(Superseded to 59116-2330-9H)

$112.99

$

Usually ships in 2-5 days

0

92001

Kawasaki 92001-2027

BOLT
(Superseded to 314501-3447A)

$2.99

$

In Stock, only 3 left!

0

92022

Kawasaki 92022-2248

WASHER

$1.99

$

In Stock, only 4 left!

0

92081

Kawasaki 92081-2021

SPRING

$1.99

$

In Stock, only 3 left!

0

92144

Kawasaki 92144-2055

SPRING,RECOIL

$14.99

$

In Stock, only 1 left!

0

92144A

Kawasaki 92144-2212

SPRING

$2.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

186

Kawasaki 186B0610

BOLT-UPSET-WP
(Superseded to 186AA0610)

$4.99

$

Usually ships in 2-5 days

0
