FE290D-CS02 - Kawasaki Engine STARTER Parts Diagram

Engine

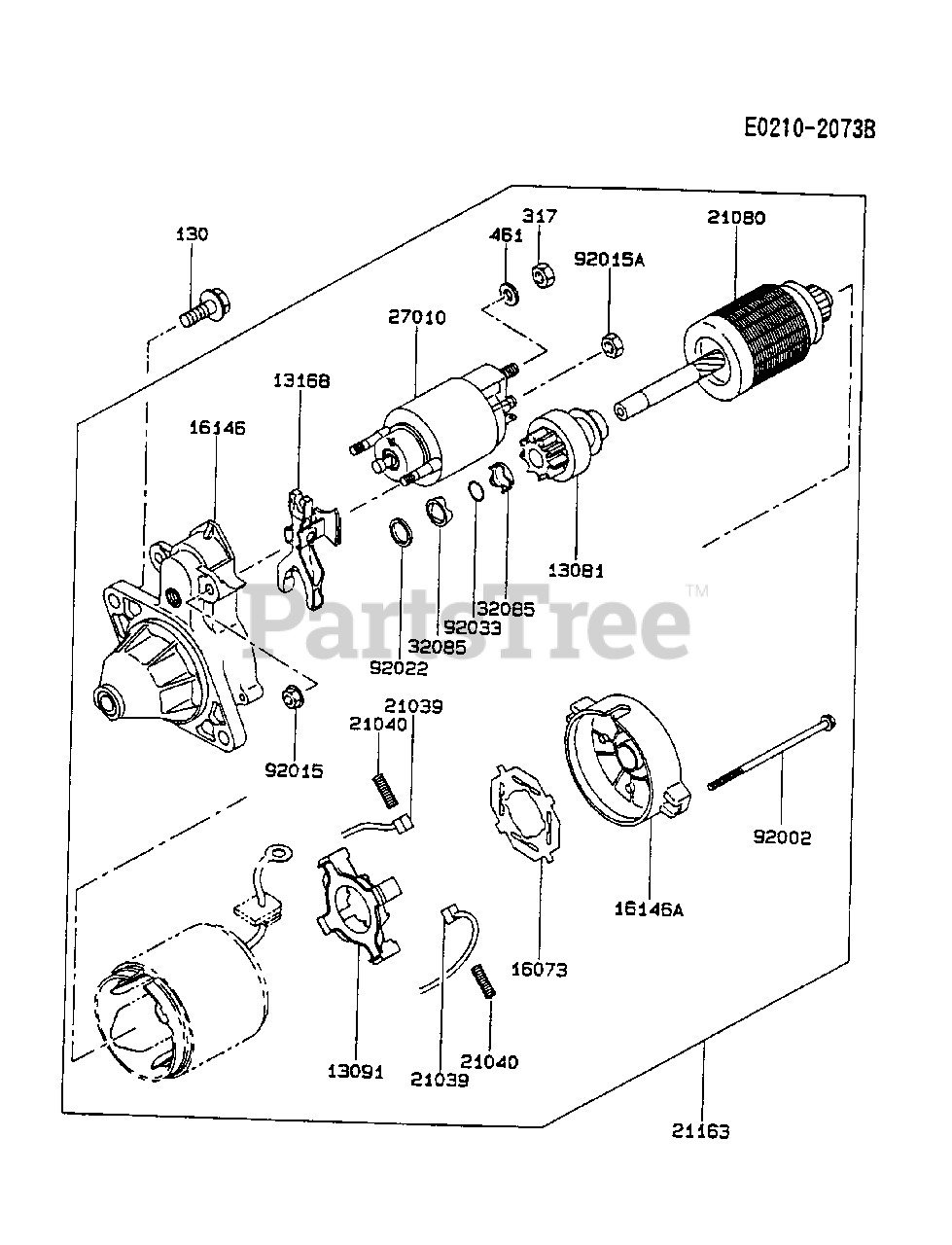

STARTER Parts Diagram

  • Title

13081

Kawasaki 13081-2108

CLUTCH-ASSY

$122.99

$

Usually ships in 2-5 days

0

13091

Kawasaki 13091-2068

HOLDER,BRUSH
(Superseded to 13280-0873)

$29.99

$

Usually ships in 2-5 days

0

13168

Kawasaki 13168-2148

LEVER,SHIFT

$25.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2098

INSULATOR

$10.99

$

Usually ships in 2-5 days

0

16146

Kawasaki 16146-2163

COVER-ASSY,FR

$86.99

$

Usually ships in 2-5 days

0

16146A

Kawasaki 16146-2164

COVER-ASSY,RR

$70.99

$

Usually ships in 2-5 days

0

21039

Kawasaki 21039-2059

BRUSH
(Superseded to 21039-0011)

$15.99

$

In Stock, only 1 left!

0

21040

Kawasaki 21040-2052

SPRING-BRUSH

$3.99

$

Usually ships in 2-5 days

0

21080

Kawasaki 21080-2054

ARMATURE

$

$

Not available

21163

Kawasaki 21163-2089

STARTER-ELECTRIC
(Superseded to 21163-2144)

$498.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 27010-2122

SWITCH
(Superseded to 270107005)

$189.99

$

In Stock, Qty 14

0

32085

Kawasaki 32085-2066

STOPPER
(Superseded to 32085-2097)

$15.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2277

BOLT
(Superseded to 92154-2116)

$13.99

$

In Stock, Qty 5

0

92015

Kawasaki 92015-2146

NUT

$1.99

$

Usually ships in 2-5 days

0

92015A

Kawasaki 92015-2147

NUT

$7.49

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2218

WASHER

$

$

Not available

92033

Kawasaki 92033-2081

RING-SNAP

$6.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0825

BOLT-FLANGED
(Superseded to 130BA0825)

$5.99

$

In Stock, Qty 5

0

317

Kawasaki 317B0800

NUT-HEX-SMALL
(Superseded to 317AA0800)

$0.99

$

In Stock, Qty 19

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
