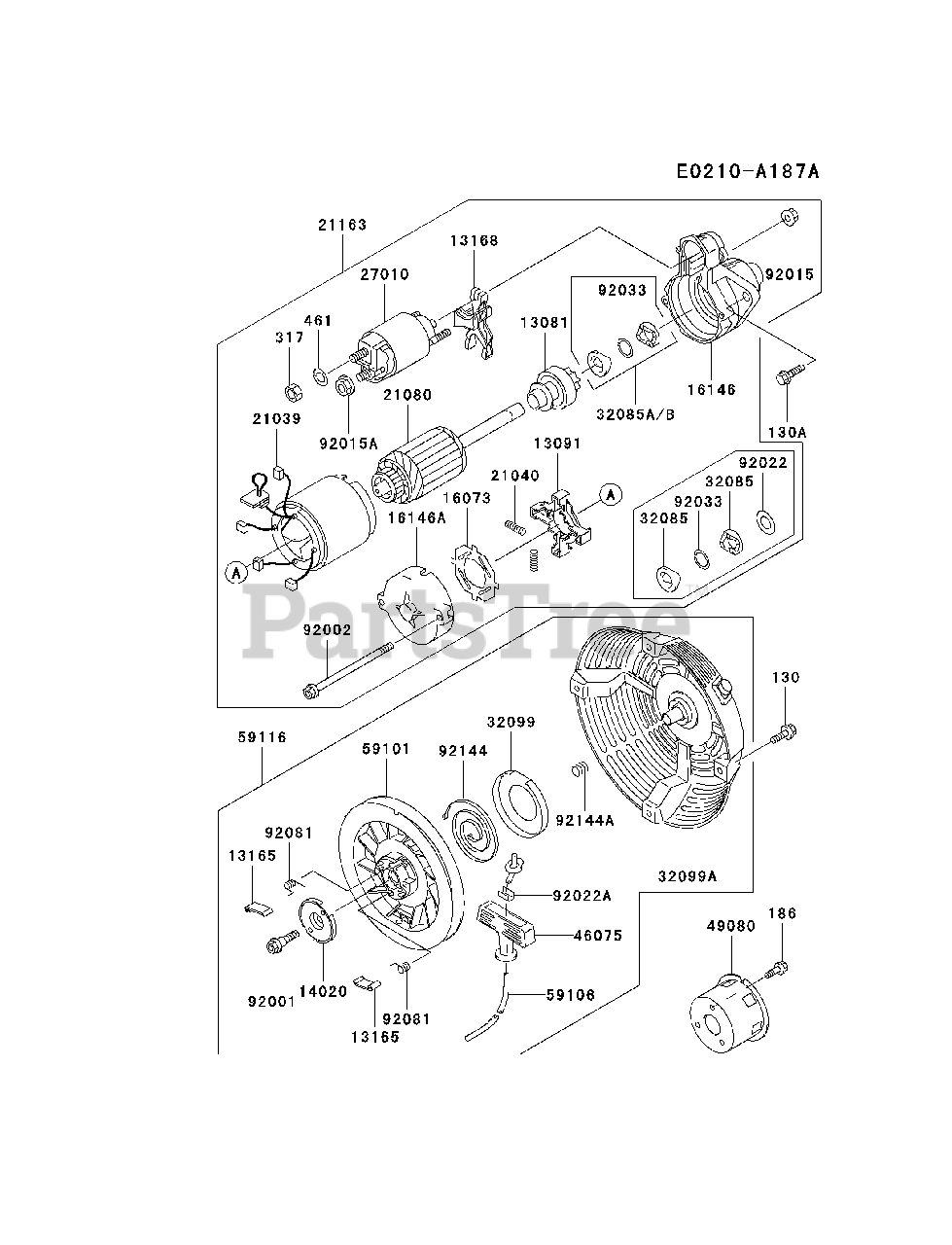

FE290D-BS13 - Kawasaki Engine STARTER Parts Diagram

Engine

STARTER Parts Diagram

  • Title
13081

Kawasaki 13081-2108

CLUTCH-ASSY

$122.99

$

Usually ships in 2-5 days

0

13091

Kawasaki 13091-2068

HOLDER,BRUSH
(Superseded to 13280-0873)

$29.99

$

Usually ships in 2-5 days

0

13165

Kawasaki 13165-2073

PAWL,RECOIL STARTER
(Superseded to 13165-2057)

$5.49

$

In Stock, only 2 left!

0

13168

Kawasaki 13168-2148

LEVER,SHIFT

$25.99

$

Usually ships in 2-5 days

0

14020

Kawasaki 14020-2094

RETAINER,RECOIL STARTER

$10.99

$

Usually ships in 2-5 days

0

16073

$10.99

$

Usually ships in 2-5 days

0

16146

Kawasaki 16146-2163

COVER-ASSY,FR

$86.99

$

Usually ships in 2-5 days

0

16146A

Kawasaki 16146-2164

COVER-ASSY,RR

$70.99

$

Usually ships in 2-5 days

0

21039

Kawasaki 21039-2059

BRUSH
(Superseded to 21039-0011)

$15.99

$

In Stock, only 1 left!

0

21040

Kawasaki 21040-2052

SPRING-BRUSH

$3.99

$

Usually ships in 2-5 days

0

21080

$

$

Not available

21163

Kawasaki 21163-2089

STARTER-ELECTRIC
(Superseded to 21163-2144)

$498.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 27010-2122

SWITCH
(Superseded to 270107005)

$189.99

$

In Stock, Qty 14

0

32085A

$15.99

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2193

CASE,SPRING

$4.99

$

Usually ships in 2-5 days

0

32099A

Kawasaki 32099-2219-YK

CASE,RECOIL STARTER
(Superseded to 32099-2219-9H)

$73.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-2092

GRIP,RECOIL STARTER

$8.49

$

In Stock, only 1 left!

0

49080

Kawasaki 49080-2154

PULLEY-STARTING

$14.99

$

Usually ships in 2-5 days

0

59101

Kawasaki 59101-2091

REEL,RECOIL STARTER

$28.99

$

Usually ships in 2-5 days

0

59106

Kawasaki 59106-2099

ROPE,4.5X1550

$10.99

$

Usually ships in 2-5 days

0

59116

Kawasaki 59116-2330-YK

STARTER-ASSY-RECOIL
(Superseded to 59116-2330-9H)

$112.99

$

Usually ships in 2-5 days

0

92001

Kawasaki 92001-2027

BOLT
(Superseded to 314501-3447A)

$2.99

$

In Stock, only 3 left!

0

92002

Kawasaki 92002-2277

BOLT
(Superseded to 92154-2116)

$13.99

$

In Stock, Qty 5

0

$1.99

$

Usually ships in 2-5 days

0

92015A

$7.49

$

Usually ships in 2-5 days

0

92022A

$1.99

$

In Stock, only 4 left!

0

92033

$6.99

$

Usually ships in 2-5 days

0

92081

$1.99

$

In Stock, Qty 12

0

92144

Kawasaki 92144-2055

SPRING,RECOIL

$14.99

$

In Stock, only 1 left!

0

92144A

$2.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130G0825

BOLT-FLANGED
(Superseded to 130BA0825)

$5.99

$

In Stock, Qty 5

0

186

Kawasaki 186B0610

BOLT-UPSET-WP
(Superseded to 186AA0610)

$4.99

$

Usually ships in 2-5 days

0

317

Kawasaki 317B0800

NUT-HEX-SMALL
(Superseded to 317AA0800)

$0.99

$

In Stock, Qty 19

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
