FE290D-AS24 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

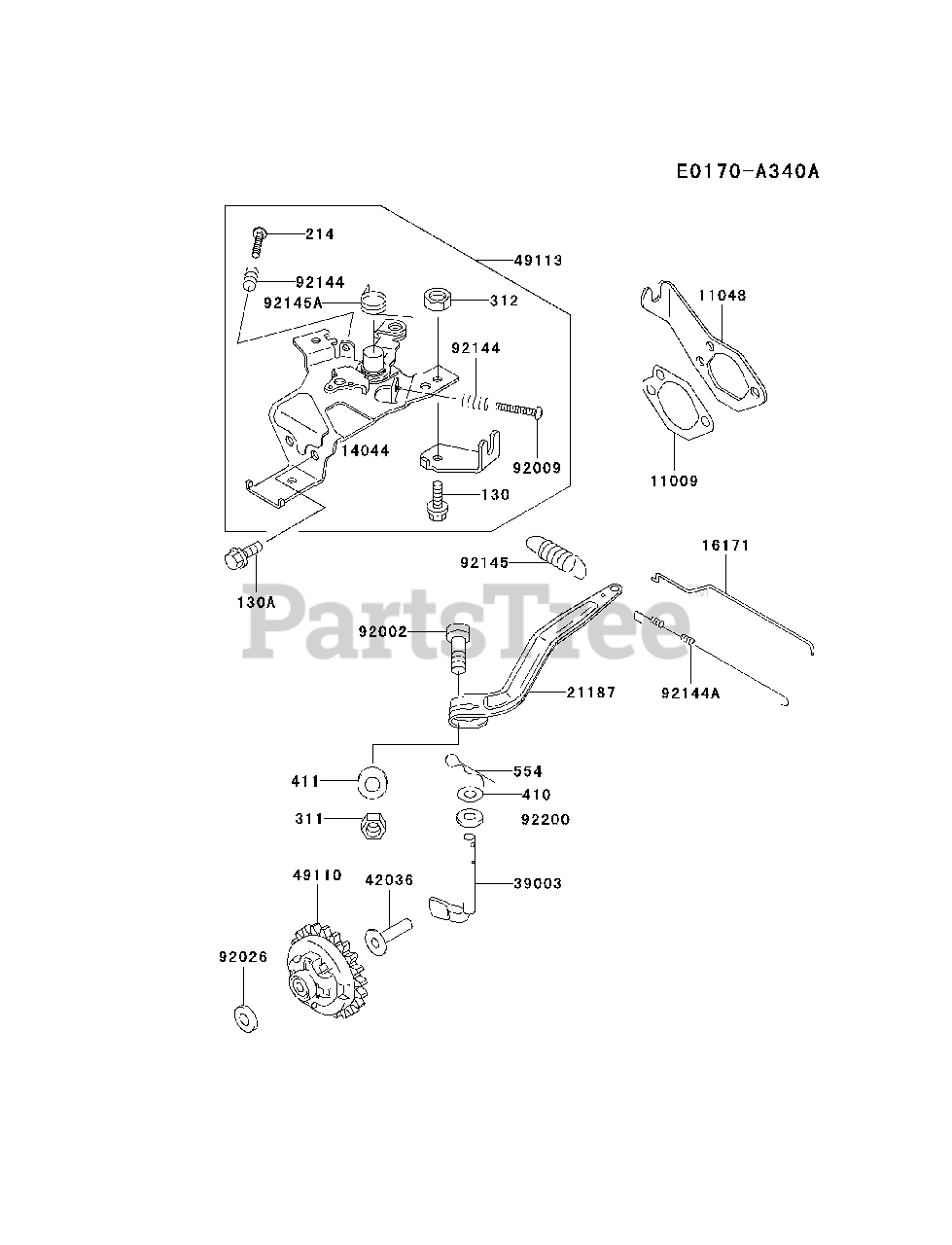

CONTROL-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 11009-2925

GASKET,AIR FILTER
(Superseded to 11060-2334)

$1.99

$

In Stock, only 2 left!

0

11048

Kawasaki 11048-2015

BRACKET

$9.49

$

Usually ships in 2-5 days

0

14044

Kawasaki 14044-2058

HOLDER-CABLE

$

$

Not available

16171

Kawasaki 16171-2061

LINK,THROTTLE

$3.99

$

Usually ships in 2-5 days

0

21187

Kawasaki 21187-2061

ARM-ASSY

$6.99

$

Usually ships in 2-5 days

0

39003

Kawasaki 39003-2076

ARM-PIVOT
(Superseded to 39003-2067)

$8.49

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-2060

SLEEVE
(Superseded to 42036-2059)

$4.99

$

In Stock, Qty 11

0

49110

Kawasaki 49110-2069

GOVERNOR-ASSY
(Superseded to 49110-2085)

$12.99

$

Usually ships in 2-5 days

0

49113

Kawasaki 49113-2156

PANEL-COMP-CONTROL
(Superseded to 49113-2198)

$38.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2269

BOLT

$1.99

$

In Stock, Qty 6

0

92009

Kawasaki 92009-2113

SCREW

$0.99

$

Usually ships in 2-5 days

0

92026

Kawasaki 92200-2036

SPACER

$1.49

$

In Stock, Qty 13

0

92144

Kawasaki 92144-2266

SPRING

$5.49

$

Usually ships in 2-5 days

0

92144A

Kawasaki 92144-2340

SPRING

$5.49

$

In Stock, Qty 10

0

92145

Kawasaki 92145-2054

SPRING

$3.49

$

Usually ships in 2-5 days

0

92145A

Kawasaki 92145-2059

SPRING
(Superseded to 92145-2144)

$1.99

$

In Stock, only 2 left!

0

92200

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

130

Kawasaki 130B0508

BOLT-FLANGED
(Superseded to 130AA0508)

$0.99

$

In Stock, Qty 8

0

130A

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

214

Kawasaki 214B0422

SCREW-PAN+-

$

$

Not available

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 16

0

312

Kawasaki 312B0500

NUT-HEX
(Superseded to 312AA0500)

$0.99

$

In Stock, Qty 6

0

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, only 2 left!

0

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0
