FE290D-AS24 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

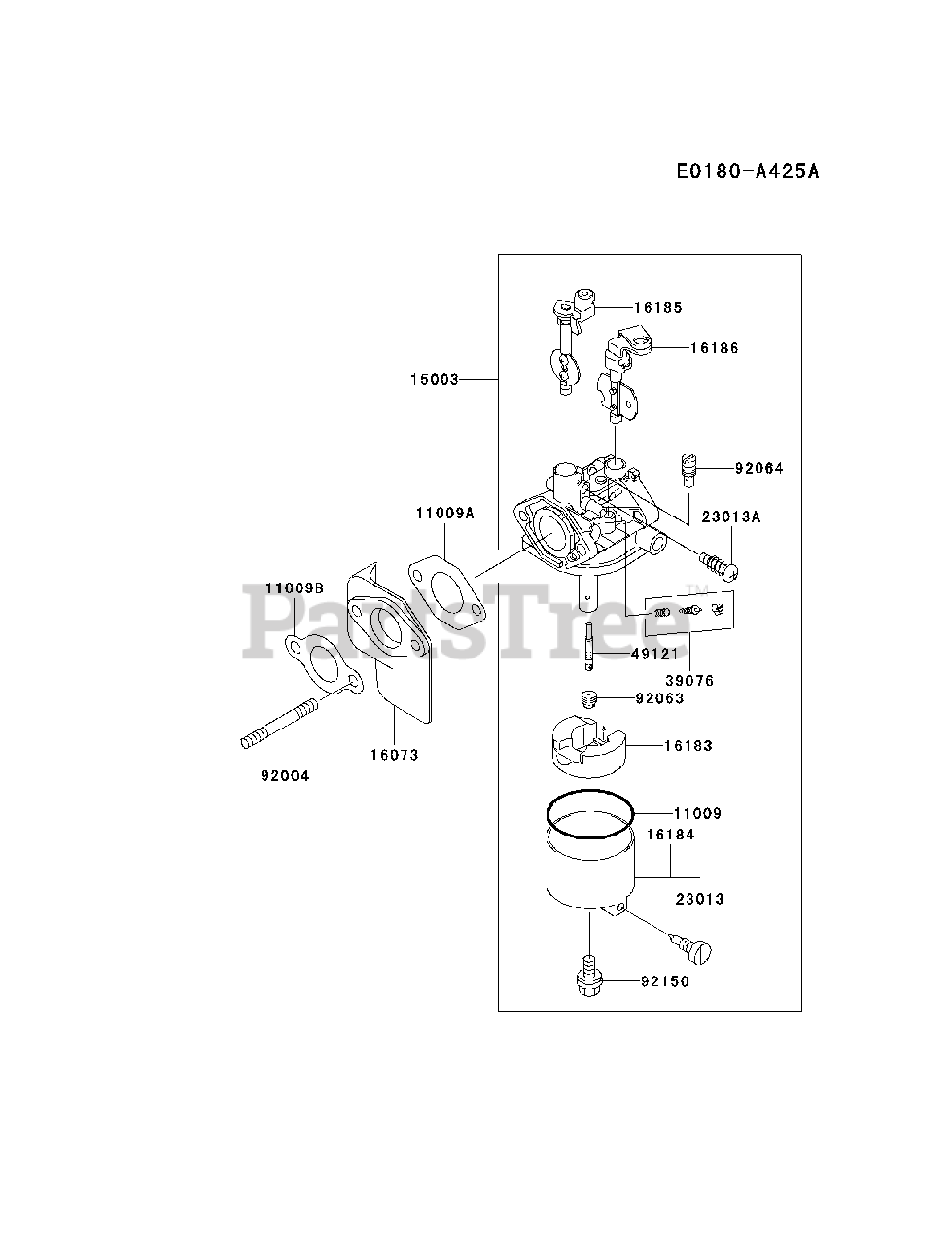

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 11009-2919

GASKET

$10.99

$

In Stock, Qty 15

0

11009A

Kawasaki 11009-2928

GASKET,CARBURETOR
(Superseded to 11060-2336)

$1.49

$

In Stock, Qty 16

0

11009B

Kawasaki 11009-2939

GASKET,INSULATOR
(Superseded to 11009-2825)

$1.99

$

In Stock, Qty 14

0

15003

Kawasaki 15003-2767

CARBURETOR-ASSY

$

$

Not available

16073

Kawasaki 16073-2154

INSULATOR
(Superseded to 16073-2135)

$9.99

$

Usually ships in 2-5 days

0

16183

Kawasaki 16183-2005

FLOAT-ASSY
(Superseded to 16183-2001)

$49.99

$

Usually ships in 2-5 days

0

16184

Kawasaki 16184-2002

CHAMBER-ASSY-FLOAT

$50.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 16185-2035

VALVE-ASSY-THROTTLE

$

$

Not available

16186

Kawasaki 16186-2024

VALVE-ASSY-CHOKE

$65.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 23013-2053

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

23013A

Kawasaki 23013-2054

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

39076

Kawasaki 39076-2055

LIMITER

$12.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 49121-2234

NOZZLE-MAIN

$

$

Not available

92004

Kawasaki 92004-2125

STUD,6X80

$3.99

$

Usually ships in 2-5 days

0

92063

Kawasaki 92063-2303

JET-MAIN,#95

$21.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 92064-2083

JET-PILOT,#45

$19.99

$

Usually ships in 2-5 days

0

92150

Kawasaki 92150-2209

BOLT

$7.49

$

In Stock, only 1 left!

0
