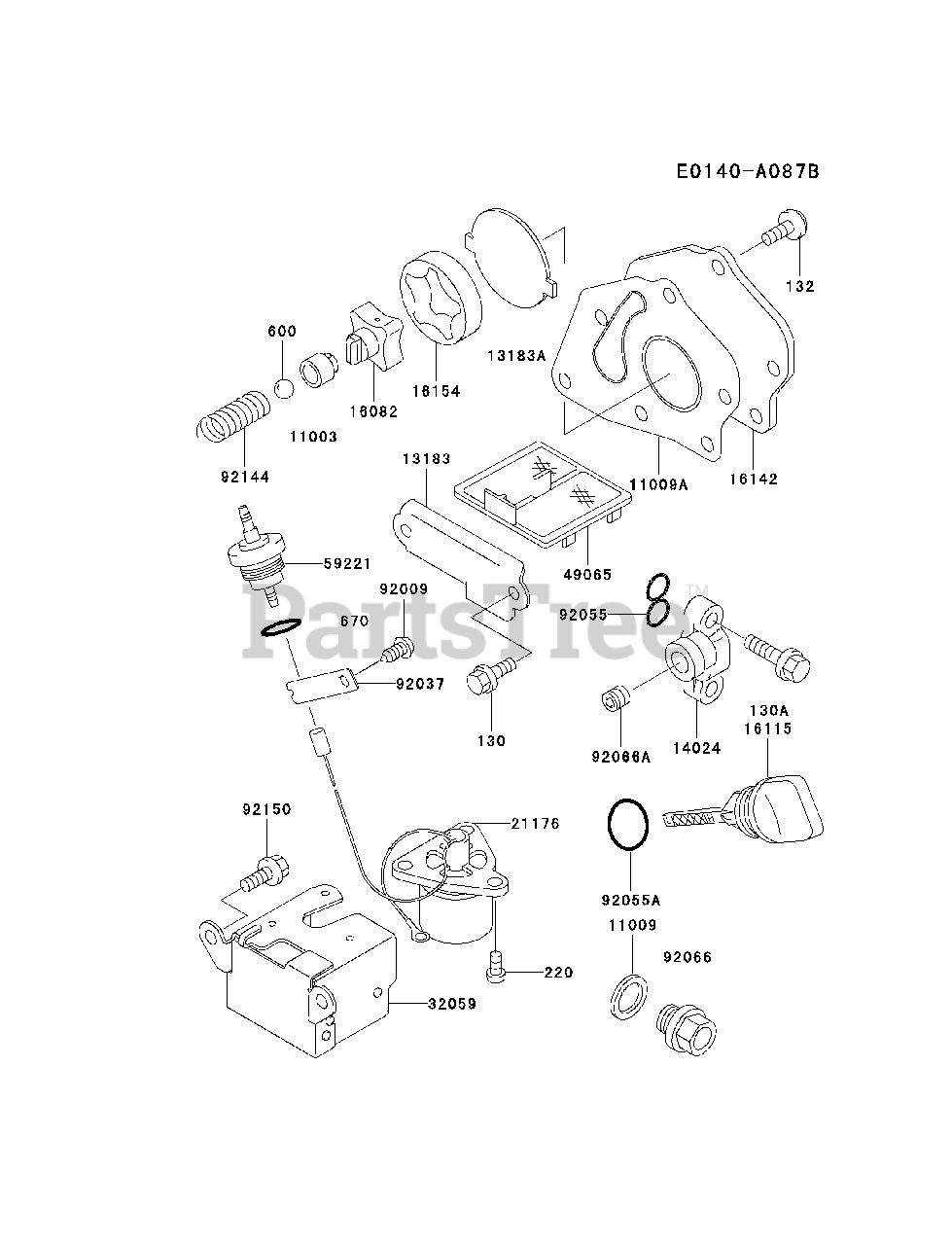

FE290D-AS21 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

LUBRICATION-EQUIPMENT Parts Diagram

  • Title
11003

Kawasaki 11003-2089

SEAT-VALVE

$7.49

$

In Stock, only 1 left!

0

11009

Kawasaki 11009-2175

GASKET
(Superseded to 317370-7883-00)

$1.99

$

In Stock, Qty 15

0

11009A

Kawasaki 11009-2828

GASKET,OIL PUMP

$7.49

$

In Stock, Qty 20+

0

13183

Kawasaki 13183-2295

PLATE,OIL FILTER

$1.99

$

In Stock, Qty 10

0

13183A

Kawasaki 13183-2298

PLATE,OIL PUMP

$2.49

$

In Stock, only 1 left!

0

14024

$14.99

$

Usually ships in 2-5 days

0

16082

Kawasaki 16082-2062

PUMP-ASSY-OIL

$32.99

$

Usually ships in 2-5 days

0

16115

Kawasaki 16115-2079

CAP-OIL FILLER

$5.49

$

Usually ships in 2-5 days

0

16142

Kawasaki 16142-2062

COVER-PUMP

$7.49

$

In Stock, Qty 13

0

16154

Kawasaki 16154-2054

ROTOR-PUMP,OUT

$9.49

$

In Stock, only 2 left!

0

21176

Kawasaki 21176-2099

SENSOR
(Superseded to 21176-2085)

$57.99

$

Usually ships in 2-5 days

0

32059

Kawasaki 32059-2085

BRACKET-SWITCH

$11.99

$

Usually ships in 2-5 days

0

49065

Kawasaki 49065-2068

FILTER-OIL

$7.99

$

Usually ships in 2-5 days

0

59221

Kawasaki 59221-2123

CONNECTOR-CORD
(Superseded to 59221-2054)

$51.99

$

In Stock, only 1 left!

0

92009

$0.99

$

In Stock, Qty 10

0

92037

$0.99

$

Usually ships in 2-5 days

0

92055

$4.49

$

In Stock, Qty 10

0

92055A

Kawasaki 92055-2185

RING-O,20MM

$1.49

$

In Stock, only 2 left!

0

92066

Kawasaki 92066-2203

PLUG,DRAIN
(Superseded to 92066-2253)

$2.49

$

In Stock, only 2 left!

0

92066A

$2.99

$

Usually ships in 2-5 days

0

92144

$1.99

$

Usually ships in 2-5 days

0

92150

Kawasaki 92150-2212

BOLT
(Superseded to 92151-2166)

$0.99

$

In Stock, Qty 10

0

130

Kawasaki 130B0508

BOLT-FLANGED
(Superseded to 130AA0508)

$0.99

$

In Stock, Qty 8

0

130A

Kawasaki 130G0620

BOLT-FLANGED
(Superseded to 130BA0620)

$1.99

$

In Stock, only 2 left!

0

132

Kawasaki 132G0612

BOLT-FLANGED-SMALL
(Superseded to 132BA0612)

$1.49

$

Usually ships in 2-5 days

0

220

Kawasaki 220B0408

SCREW-PAN-CROS
(Superseded to 220AA0408)

$0.99

$

In Stock, Qty 12

0

600

Kawasaki 600A1000

BALL-STEEL

$0.99

$

In Stock, Qty 7

0

670

$1.49

$

In Stock, only 4 left!

0
