FE290D-AS18 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

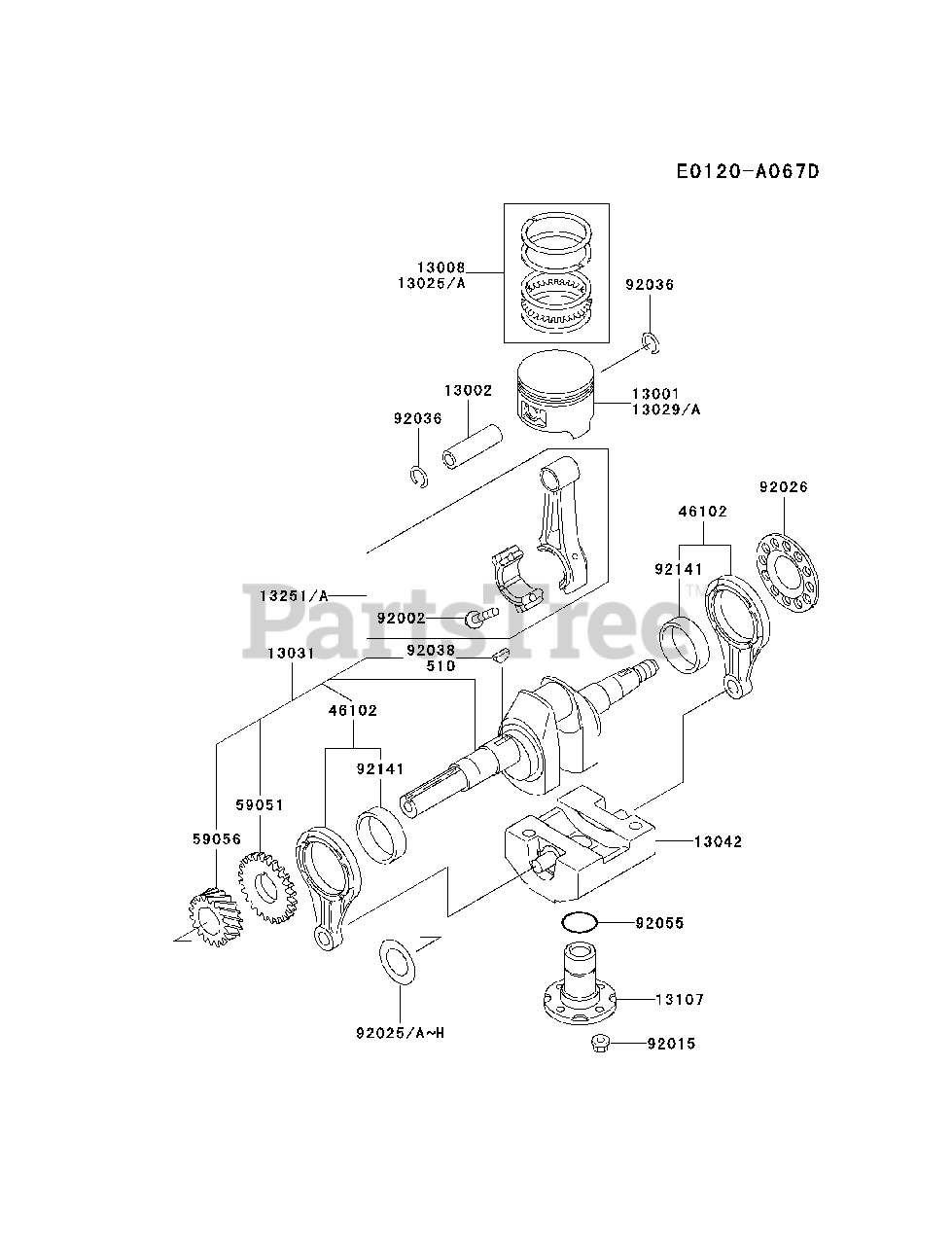

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001

Kawasaki 13001-2125

PISTON-ENGINE
(Superseded to 13001-2207)

$49.99

$

In Stock, only 3 left!

0

13002

Kawasaki 13002-2069

PIN-PISTON

$10.99

$

In Stock, only 1 left!

0

13008

Kawasaki 13008-6007

RING-SET-PISTON

$37.99

$

In Stock, Qty 8

0

13025

Kawasaki 13025-2073

RING-SET-PISTON L,0.25

$45.99

$

In Stock, only 1 left!

0

13025A

Kawasaki 13025-2074

RING-SET-PISTON L,0.50

$44.99

$

Usually ships in 2-5 days

0

13029

Kawasaki 13029-2100

PISTON-ENGINE L,0.25
(Superseded to 13029-2129)

$69.99

$

Usually ships in 2-5 days

0

13029A

Kawasaki 13029-2101

PISTON-ENGINE L,0.50
(Superseded to 13029-0034)

$57.99

$

In Stock, only 1 left!

0

13031

Kawasaki 13031-2066

CRANKSHAFT-COMP

$

$

Not available

13042

Kawasaki 13042-6009

WEIGHT

$128.99

$

Usually ships in 2-5 days

0

13107

Kawasaki 13107-2088

SHAFT

$21.99

$

In Stock, only 1 left!

0

13251

Kawasaki 13251-6034

ROD-ASSY-CONNECTING,U/S=0.50
(Superseded to 13251-2079)

$78.99

$

Usually ships in 2-5 days

0

13251A

Kawasaki 13251-6056

ROD-ASSY-CONNECTING
(Superseded to 13251-2077)

$71.99

$

In Stock, only 2 left!

0

46102

Kawasaki 46102-6004

ROD
(Superseded to 46102-6003)

$43.99

$

In Stock, only 2 left!

0

59051

Kawasaki 59051-2097

GEAR-SPUR

$31.99

$

Usually ships in 2-5 days

0

59056

Kawasaki 59056-2993

GEAR-HELICAL
(Superseded to 59056-2840)

$41.99

$

In Stock, only 1 left!

0

92002

Kawasaki 92002-2053

BOLT
(Superseded to 315601-3245A)

$6.99

$

In Stock, only 2 left!

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

92025

Kawasaki 92025-2168

SHIM,T=1.13

$4.49

$

Usually ships in 2-5 days

0

92025A

Kawasaki 92025-2169

SHIM,T=1.18

$4.99

$

Usually ships in 2-5 days

0

92025B

Kawasaki 92025-2170

SHIM,T=1.23

$4.99

$

In Stock, only 1 left!

0

92025C

Kawasaki 92025-2171

SHIM,T=1.28

$4.99

$

Usually ships in 2-5 days

0

92025D

Kawasaki 92025-2172

SHIM,T=1.33

$4.99

$

Usually ships in 2-5 days

0

92025E

Kawasaki 92025-2173

SHIM,T=1.38

$4.99

$

Usually ships in 2-5 days

0

92025F

Kawasaki 92025-2174

SHIM,T=1.43

$4.99

$

Usually ships in 2-5 days

0

92025G

Kawasaki 92025-2175

SHIM,T=1.48

$4.99

$

Usually ships in 2-5 days

0

92025H

Kawasaki 92025-2207

SHIM,T=1.53

$4.99

$

Usually ships in 2-5 days

0

92026

Kawasaki 92026-2052

SPACER

$14.99

$

In Stock, only 1 left!

0

92036

Kawasaki 92036-008

RING-SNAP

$0.99

$

In Stock, Qty 20+

0

92038

Kawasaki 92038-2101

KEY

$4.99

$

Usually ships in 2-5 days

0

92055

Kawasaki 92055-2072

RING-O

$1.49

$

In Stock, Qty 20+

0

92141

Kawasaki 92141-2090

BEARING-PLANE

$8.49

$

In Stock, Qty 6

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 11

0
