FE290D-AS18 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

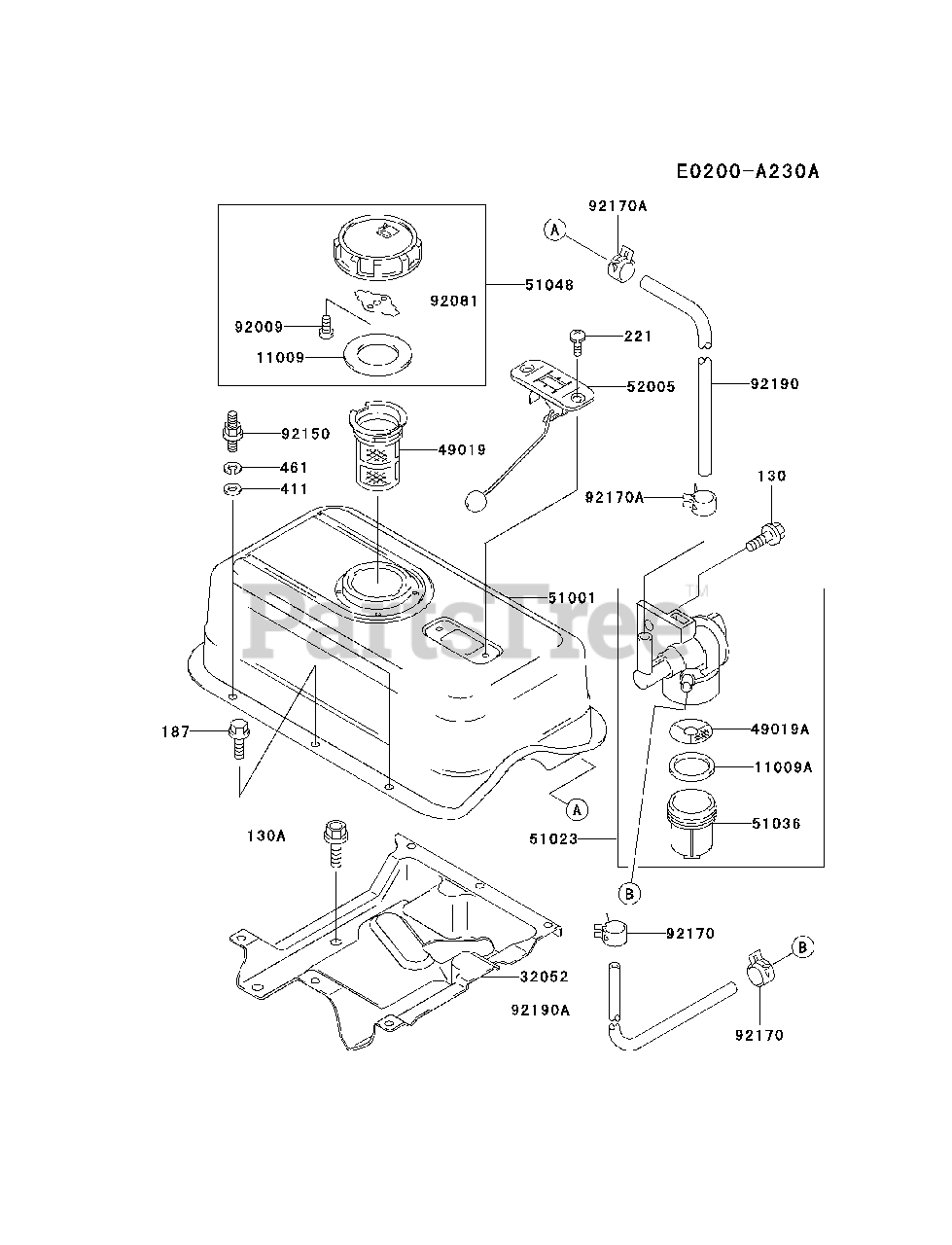

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title

11009

Kawasaki 11009-2115

GASKET
(Superseded to 11009-2044)

$2.49

$

Usually ships in 2-5 days

0

11009A

Kawasaki 11009-2876

GASKET,FUEL TAP

$4.99

$

In Stock, only 2 left!

0

32052

Kawasaki 32052-2199-9H

BRACKET-TANK

$

$

Not available

49019

Kawasaki 49019-2051

FILTER-FUEL
(Superseded to 49019-2003)

$6.99

$

In Stock, only 1 left!

0

49019A

Kawasaki 49019-2095

FILTER-FUEL
(Superseded to 49019-2101)

$6.49

$

In Stock, Qty 9

0

51001

Kawasaki 51001-2222-9H

TANK-COMP-FUEL

$191.99

$

Usually ships in 2-5 days

0

51023

Kawasaki 51023-2148

TAP-ASSY

$34.99

$

In Stock, only 3 left!

0

51036

Kawasaki 51036-2071

CUP,FUEL TAP

$8.99

$

In Stock, Qty 8

0

51048

Kawasaki 51048-2055

CAP-ASSY-TANK
(Superseded to 51048-2071)

$12.99

$

In Stock, only 1 left!

0

52005

Kawasaki 52005-2100

GAUGE

$17.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2021

SCREW
(Superseded to 314401-6732A)

$0.99

$

In Stock, only 3 left!

0

92081

Kawasaki 92081-2036

SPRING

$2.49

$

In Stock, only 1 left!

0

92150

Kawasaki 92150-2197

BOLT

$3.49

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2042

CLAMP

$1.49

$

In Stock, Qty 15

0

92170A

Kawasaki 92170-2082

CLAMP

$0.99

$

Usually ships in 2-5 days

0

92190

Kawasaki 92190-2073

TUBE,7X12X205

$3.49

$

Usually ships in 2-5 days

0

92190A

Kawasaki 92190-2118

TUBE,6X10X120

$2.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130G0816

BOLT-FLANGED
(Superseded to 130BA0816)

$1.99

$

In Stock, only 4 left!

0

187

Kawasaki 187J0612

BOLT-UPSET-WSP

$

$

Not available

221

Kawasaki 221C0512

SCREW-CSK-CROS
(Superseded to 221AB0512)

$0.99

$

In Stock, Qty 12

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 6

0
