FE250D-DS05 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

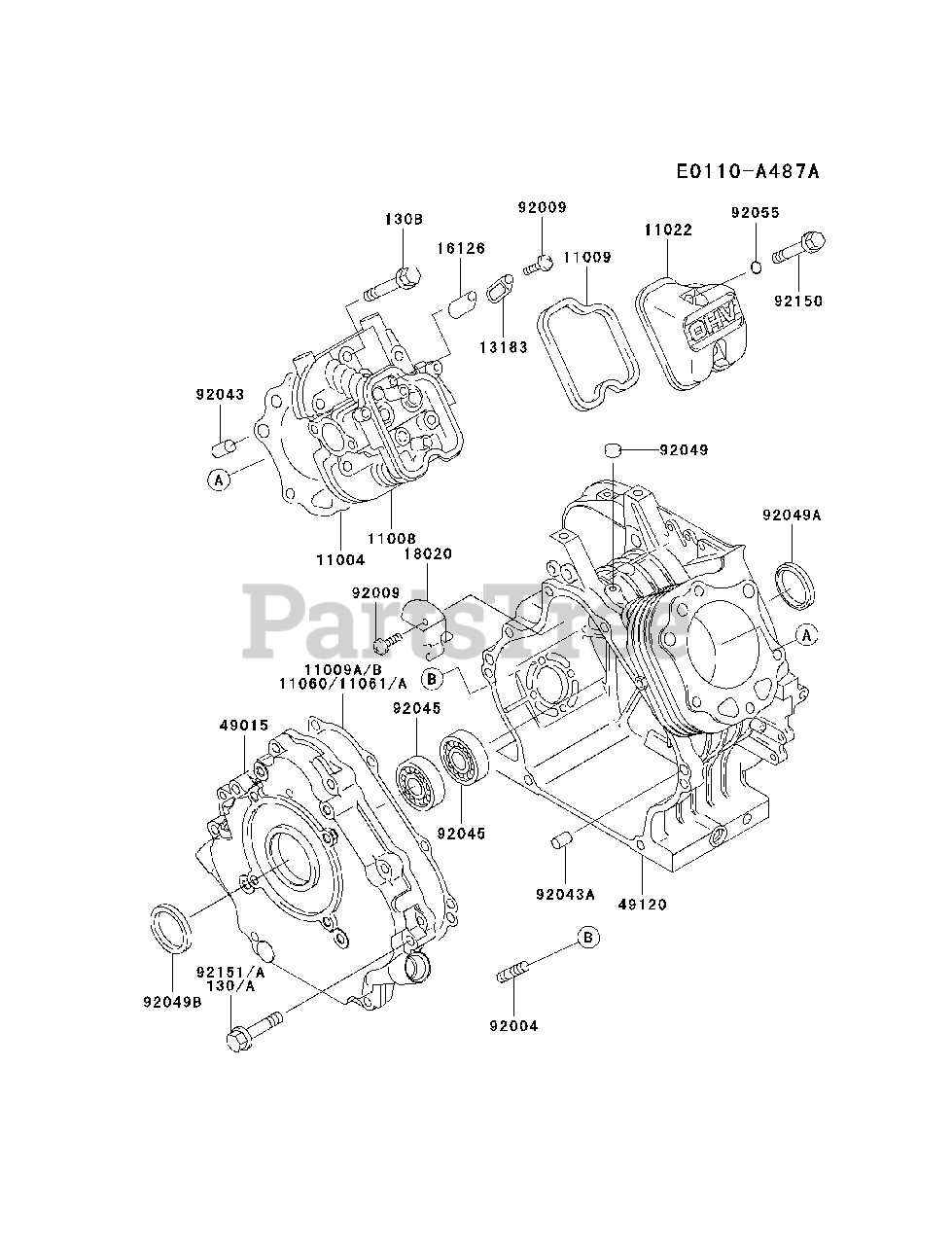

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 11004-2106

GASKET-HEAD

$12.99

$

In Stock, only 1 left!

0

11008

Kawasaki 11008-2086

HEAD-COMP-CYLINDER
(Superseded to 11008-2111)

$261.99

$

Usually ships in 2-5 days

0

11009

Kawasaki 11009-2923

GASKET,ROCKER CASE

$9.49

$

In Stock, only 1 left!

0

11022

Kawasaki 11022-6002

CASE-ROCKER

$35.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-2069

GASKET
(Superseded to 11009-2924)

$37.99

$

In Stock, only 1 left!

0

13183

Kawasaki 13183-2299

PLATE

$1.49

$

In Stock, Qty 7

0

16126

Kawasaki 16126-2107

VALVE

$0.99

$

In Stock, Qty 6

0

18020

Kawasaki 18020-2073

BAFFLE

$

$

Not available

49015

Kawasaki 49015-6107

COVER-CRANKCASE

$

$

Not available

49120

Kawasaki 49120-2224

CRANKCASE-COMP

$

$

Not available

92004

Kawasaki 92004-2083

STUD,6X14

$1.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92043

Kawasaki 92043-1037

PIN

$0.99

$

In Stock, Qty 20+

0

92043A

Kawasaki 92043-1263

PIN

$0.99

$

In Stock, Qty 5

0

92045

Kawasaki 92045-2188

BEARING-BALL,6206CM

$22.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 92049-2097

SEAL-OIL,VC6X10X2.5

$2.49

$

In Stock, only 3 left!

0

92049A

Kawasaki 92049-2199

SEAL-OIL

$6.49

$

In Stock, only 1 left!

0

92049B

Kawasaki 92049-2220

SEAL-OIL

$9.49

$

In Stock, Qty 18

0

92055

Kawasaki 92055-1343

RING-O

$0.99

$

In Stock, Qty 5

0

92150

Kawasaki 92150-2145

BOLT,6X35

$0.99

$

In Stock, Qty 10

0

92151

Kawasaki 92151-2130

BOLT,8X40

$2.49

$

Usually ships in 2-5 days

0

130B

Kawasaki 130T0845

BOLT-FLANGED,8X45
(Superseded to 130CA0845)

$1.49

$

In Stock, Qty 5

0
