FE250D-BS01 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

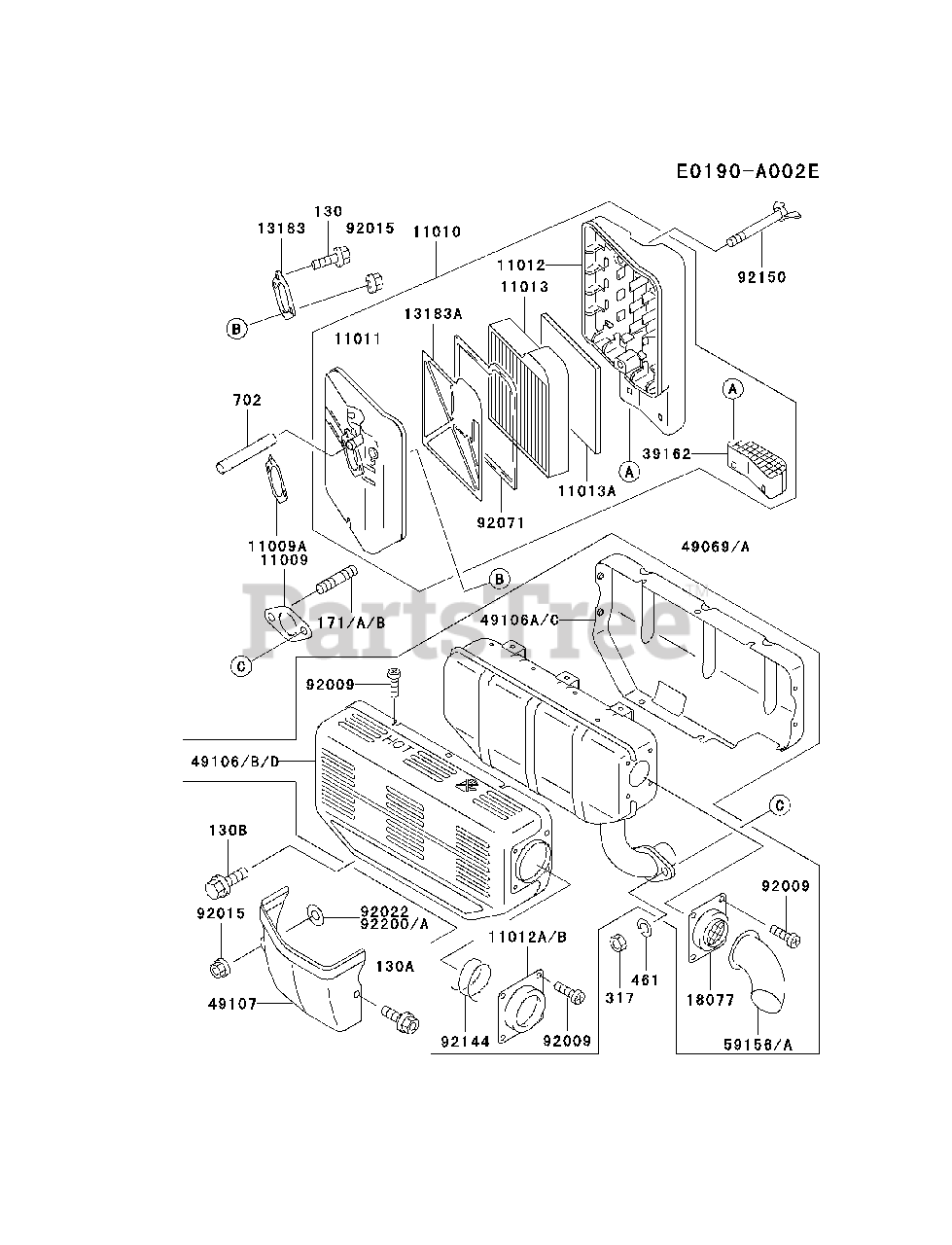

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11009

Kawasaki 11009-2487

GASKET,MUFFLER
(Superseded to 11009-2163)

$4.99

$

In Stock, only 1 left!

0

11009A

Kawasaki 11009-2925

GASKET,AIR FILTER
(Superseded to 11060-2334)

$1.99

$

In Stock, only 2 left!

0

11010

Kawasaki 11010-2404

FILTER-ASSY-AIR
(Superseded to 11010-2393)

$94.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 11011-2221

CASE-AIR FILTER
(Superseded to 11011-2214)

$23.99

$

Usually ships in 2-5 days

0

11012

Kawasaki 11012-2276

CAP,AIR FILTER

$17.99

$

In Stock, only 3 left!

0

11012B

Kawasaki 11012-2322-9X

CAP

$10.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-2128

ELEMENT-AIR FILTER

$20.99

$

In Stock, only 1 left!

0

11013A

Kawasaki 11013-2129

ELEMENT-AIR FILTER

$2.99

$

In Stock, Qty 14

0

13183

Kawasaki 13183-2322

PLATE

$2.49

$

In Stock, only 3 left!

0

13183A

Kawasaki 13183-2388

PLATE,AIR FILTER
(Superseded to 13183-2342)

$10.99

$

In Stock, only 4 left!

0

18077

Kawasaki 18077-2094

ARRESTER-SPARK

$12.99

$

Usually ships in 2-5 days

0

39162

Kawasaki 39162-2052

SILENCER-INTAKE

$3.49

$

In Stock, only 2 left!

0

49069

Kawasaki 49069-2277-9X

MUFFLER-ASSY

$

$

Not available

49106B

Kawasaki 49106-2545-9X

COVER-MUFFLER

$

$

Not available

49106C

Kawasaki 49106-2546-9X

COVER-MUFFLER

$

$

Not available

49107

Kawasaki 49107-2129-9H

COVER-EXHAUST PIPE

$27.99

$

Usually ships in 2-5 days

0

59156

Kawasaki 59156-2230-9X

PIPE-TAIL
(Superseded to 59156-2230)

$25.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2322

SCREW

$0.99

$

In Stock, only 4 left!

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

92071

Kawasaki 92071-2136

GROMMET

$11.99

$

In Stock, only 3 left!

0

92144

Kawasaki 92144-2262

SPRING

$4.99

$

In Stock, only 1 left!

0

92150

Kawasaki 92150-2167

BOLT

$

$

Not available

92200

Kawasaki 92200-2070

WASHER
(Superseded to 92022-2374)

$1.49

$

In Stock, only 4 left!

0

130

Kawasaki 130B0618

BOLT-FLANGED
(Superseded to 130AA0618)

$1.49

$

In Stock, Qty 5

0

130A

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130G0816

BOLT-FLANGED
(Superseded to 130BA0816)

$1.99

$

In Stock, only 4 left!

0

171A

Kawasaki 171G0818

BOLT-STUD
(Superseded to 171BA0818)

$1.99

$

In Stock, only 1 left!

0

171B

Kawasaki 171G0820

BOLT-STUD
(Superseded to 171BA0820)

$1.99

$

In Stock, Qty 6

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 18

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

702

Kawasaki 702A081000

TUBE-RUBBER

$12.99

$

In Stock, only 1 left!

0
