FE250D-AS08 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

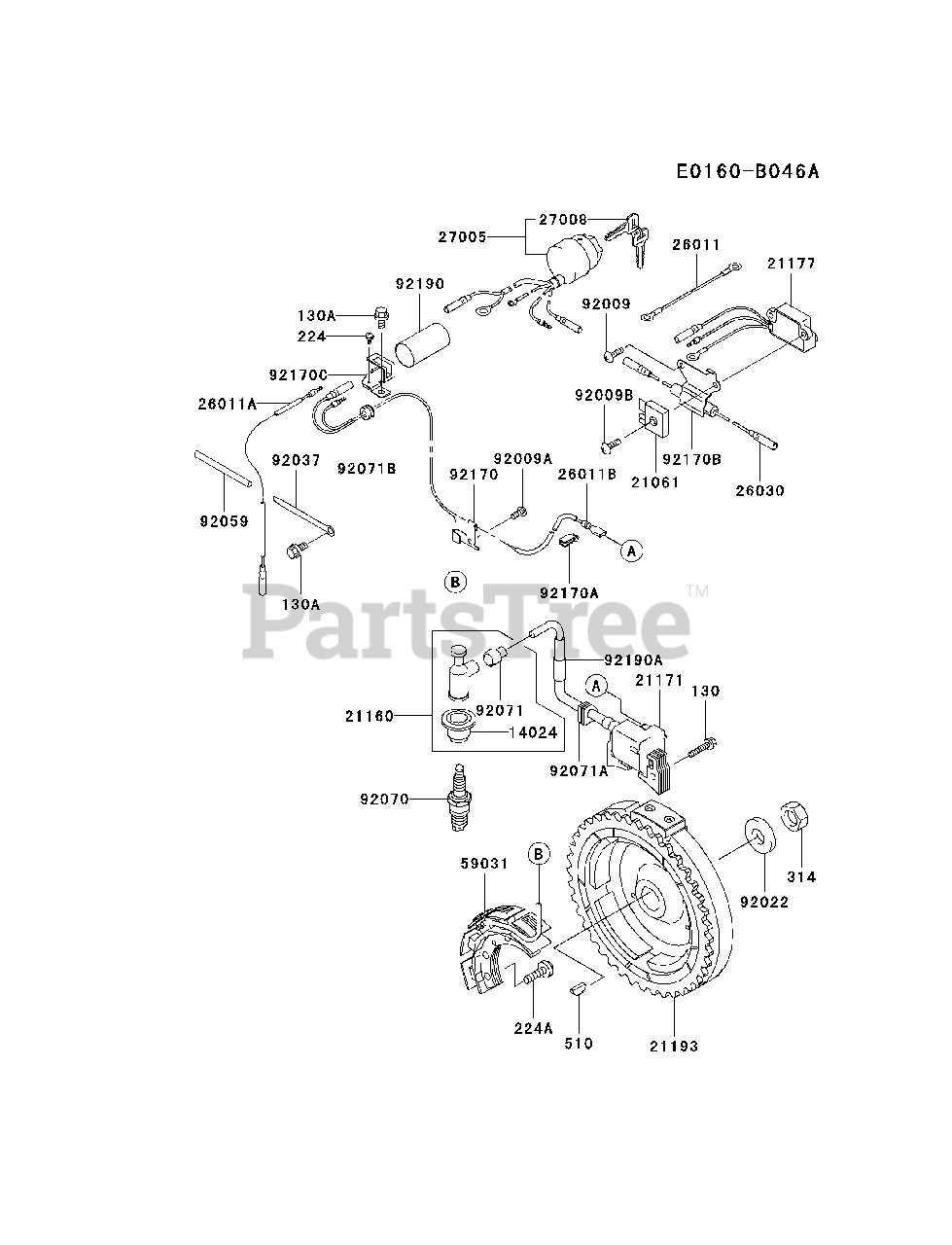

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
14024

$3.49

$

In Stock, only 1 left!

0

21061

$17.99

$

Usually ships in 2-5 days

0

21160

Kawasaki 21160-2051

CAP-ASSY-PLUG

$20.99

$

In Stock, only 1 left!

0

21171

Kawasaki 21171-2206

COIL-ASSY-IGNITION

$130.99

$

Usually ships in 2-5 days

0

21177

Kawasaki 21177-2064

CONTROLLER

$46.99

$

In Stock, only 1 left!

0

21193

Kawasaki 21193-2122

FLYWHEEL-ASSY

$316.99

$

Usually ships in 2-5 days

0

26011

$

$

Not available

26011A

$3.49

$

Usually ships in 2-5 days

0

26011B

Kawasaki 26011-2351

WIRE-LEAD,L=420MM

$3.99

$

Usually ships in 2-5 days

0

26030

$7.99

$

Usually ships in 2-5 days

0

27005

Kawasaki 27005-2055

SWITCH-ASSY-IGNITION
(Superseded to 27006-2054)

$58.99

$

Usually ships in 2-5 days

0

27008

$13.99

$

Usually ships in 2-5 days

0

59031

Kawasaki 59031-2091

COIL-CHARGING

$67.99

$

Usually ships in 2-5 days

0

92009

$2.99

$

In Stock, Qty 20+

0

92009A

$0.99

$

In Stock, Qty 10

0

92009B

$

$

Not available

92022

$2.99

$

Usually ships in 2-5 days

0

92037

$1.49

$

Usually ships in 2-5 days

0

92059

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2077

PLUG-SPARK,BPR5ES,SOLID
(Superseded to 4006)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92071

$1.49

$

Usually ships in 2-5 days

0

92071A

$6.99

$

Usually ships in 2-5 days

0

92071B

$1.99

$

In Stock, only 1 left!

0

92170

$2.99

$

In Stock, only 1 left!

0

92170A

$4.49

$

Usually ships in 2-5 days

0

92170B

$3.49

$

Usually ships in 2-5 days

0

92170C

$

$

Not available

92190

Kawasaki 92190-2052

TUBE,25X26X50

$1.49

$

In Stock, only 3 left!

0

92190A

Kawasaki 92190-2069

TUBE,7.5X10X35

$0.99

$

In Stock, only 4 left!

0

130

Kawasaki 130B0525

BOLT-FLANGED
(Superseded to 130AA0525)

$0.99

$

In Stock, only 1 left!

0

130A

Kawasaki 130G0612

BOLT-FLANGED
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

224

Kawasaki 224B0408

SCREW-PAN-WP-CROS
(Superseded to 224AA0408)

$0.99

$

In Stock, Qty 8

0

224A

Kawasaki 224B0620

SCREW-PAN-WP-CROS
(Superseded to 224AA0620)

$0.99

$

In Stock, only 2 left!

0

314

Kawasaki 314G1600

NUT-HEX-FINE
(Superseded to 314BA1600)

$2.49

$

In Stock, only 1 left!

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
