FE250D-AS02 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

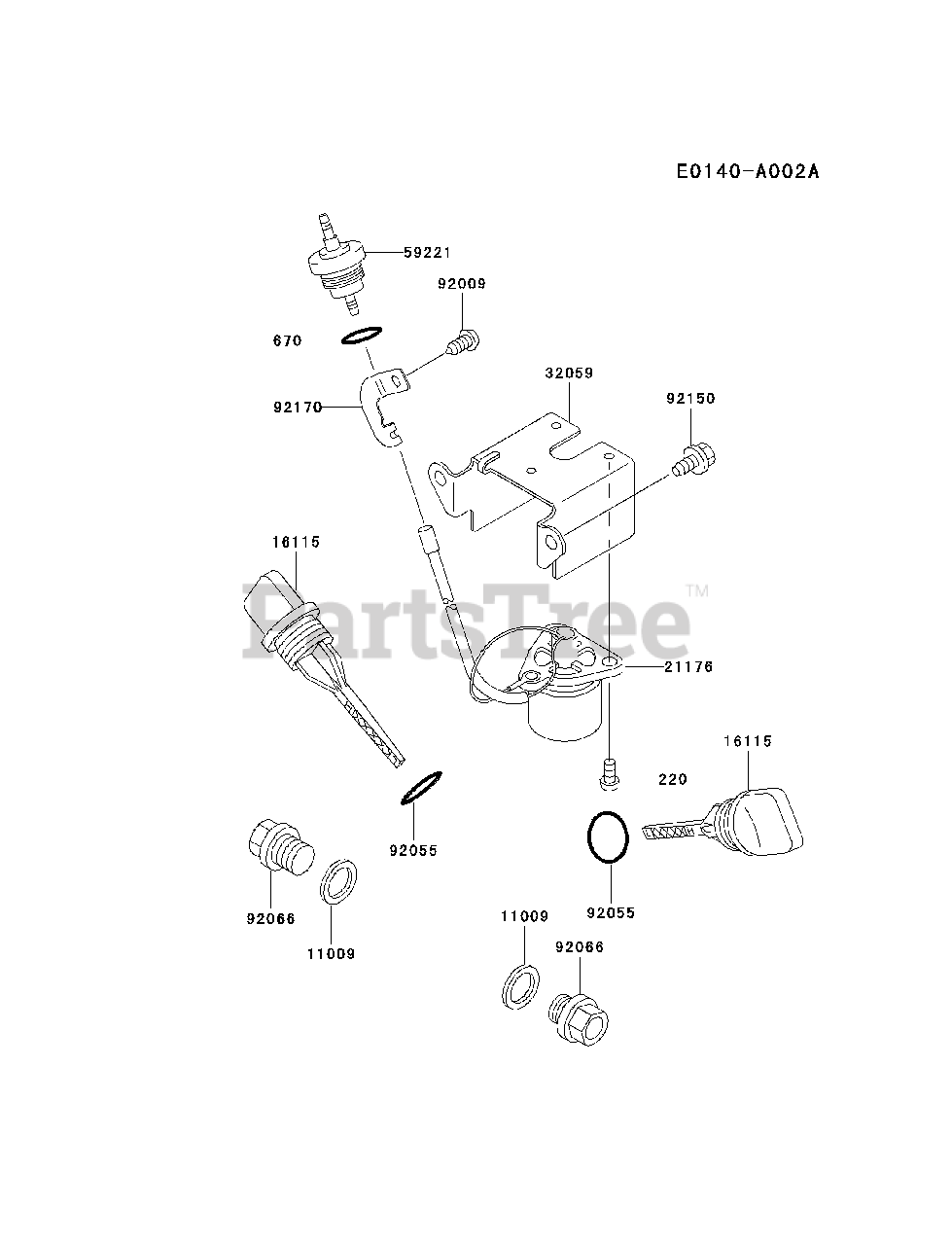

LUBRICATION-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2175

GASKET
(Superseded to 317370-7883-00)

$1.99

$

In Stock, Qty 15

0

16115

Kawasaki 16115-2079

CAP-OIL FILLER

$5.49

$

Usually ships in 2-5 days

0

21176

$57.99

$

Usually ships in 2-5 days

0

32059

Kawasaki 32059-2089

BRACKET-SWITCH

$

$

Not available

59221

Kawasaki 59221-2123

CONNECTOR-CORD
(Superseded to 59221-2054)

$51.99

$

In Stock, only 1 left!

0

92009

$0.99

$

In Stock, Qty 10

0

92055

Kawasaki 92055-2064

RING-O
(Superseded to 92055-2185)

$1.49

$

In Stock, only 2 left!

0

92066

Kawasaki 92066-2203

PLUG,DRAIN
(Superseded to 92066-2253)

$2.49

$

In Stock, only 2 left!

0

92150

Kawasaki 92150-2212

BOLT
(Superseded to 92151-2166)

$0.99

$

In Stock, Qty 10

0

92170

$

$

Not available

220

Kawasaki 220B0408

SCREW-PAN-CROS
(Superseded to 220AA0408)

$0.99

$

In Stock, Qty 12

0

670

$1.49

$

In Stock, only 4 left!

0
