FE250D-AS01 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

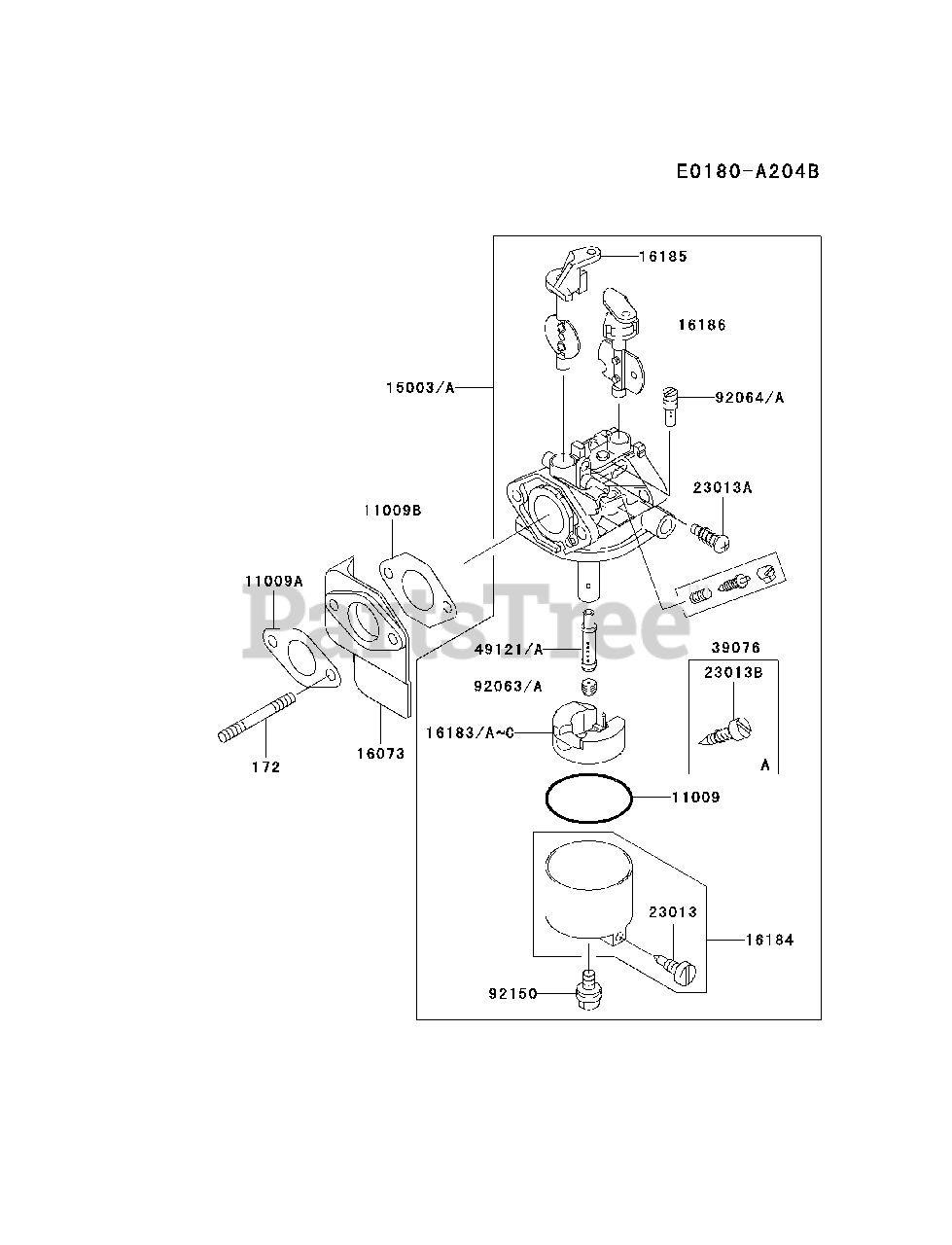

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 11009-2919

GASKET

$10.99

$

In Stock, Qty 15

0

11009A

Kawasaki 11009-2927

GASKET,INSULATOR
(Superseded to 11060-2335)

$1.99

$

In Stock, Qty 14

0

11009B

Kawasaki 11009-2928

GASKET,CARBURETOR
(Superseded to 11060-2336)

$1.49

$

In Stock, Qty 16

0

15003

Kawasaki 15003-2174

CARBURETOR-ASSY.
(Superseded to 15003-2150)

$192.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2150

INSULATOR

$5.49

$

In Stock, Qty 5

0

16183

Kawasaki 16183-2001

FLOAT-ASSY
(Superseded to 16183-2005)

$49.99

$

Usually ships in 2-5 days

0

16183B

Kawasaki 16183-2004

FLOAT-ASSY
(Superseded to 16183-2005)

$49.99

$

Usually ships in 2-5 days

0

16184

Kawasaki 16184-2002

CHAMBER-ASSY-FLOAT

$50.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 16185-2003

VALVE-ASSY-THROTTLE

$58.99

$

In Stock, only 1 left!

0

16186

Kawasaki 16186-2002

VALVE-ASSY-CHOKE

$65.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 23013-2053

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

23013A

Kawasaki 23013-2054

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

23013B

Kawasaki 23013-2055

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 49121-2156

NOZZLE-MAIN

$

$

Not available

92063

Kawasaki 92063-2209

JET-MAIN,#85

$16.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 92064-2082

JET-PILOT,#42

$20.99

$

Usually ships in 2-5 days

0

92150

Kawasaki 92150-2209

BOLT

$7.49

$

In Stock, only 1 left!

0

172

Kawasaki 172G0677

BOLT-STUD
(Superseded to 172BA0677)

$2.49

$

In Stock, only 2 left!

0
