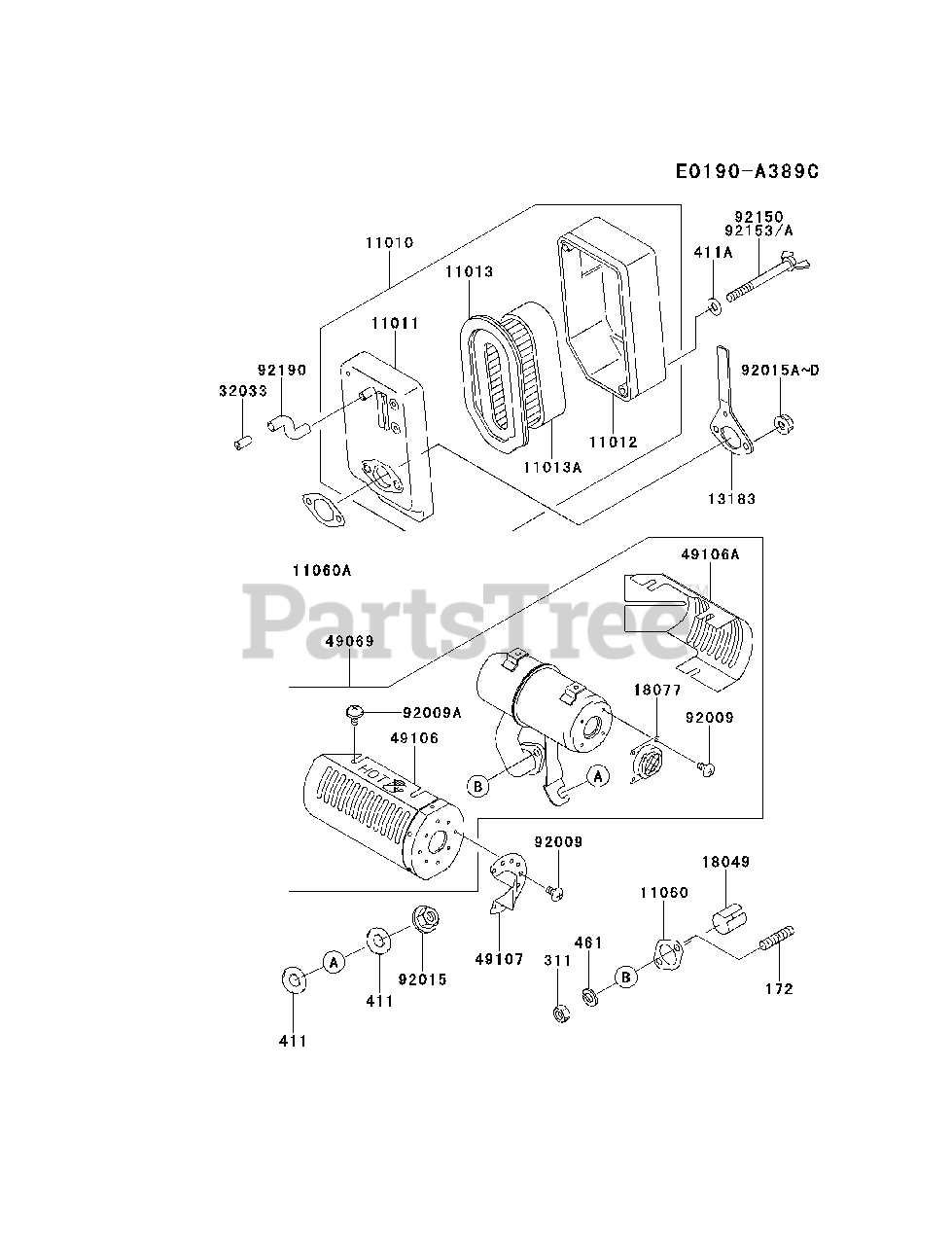

FE170D-AS04 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11010

Kawasaki 11010-2459

FILTER-ASSY-AIR
(Superseded to 11010-2444)

$82.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 11011-2241

CASE-AIR FILTER
(Superseded to 11011-2218)

$18.99

$

Usually ships in 2-5 days

0

11012

Kawasaki 11012-2325

CAP,AIR FILTER
(Superseded to 11012-2293)

$15.99

$

In Stock, only 3 left!

0

11013

Kawasaki 11013-2132

ELEMENT-AIR FILTER

$20.99

$

In Stock, Qty 14

0

11013A

Kawasaki 11013-2133

ELEMENT-AIR FILTER

$6.99

$

In Stock, Qty 20+

0

11060

Kawasaki 11060-2037

GASKET,MUFFLER
(Superseded to 11009-2124)

$4.99

$

Usually ships in 2-5 days

0

11060A

Kawasaki 11060-2049

GASKET,AIR FILTER

$1.49

$

In Stock, Qty 6

0

13183

Kawasaki 13183-2527

PLATE
(Superseded to 13183-2416)

$9.49

$

In Stock, only 1 left!

0

18049

Kawasaki 18049-2202

PIPE-EXHAUST

$3.49

$

Usually ships in 2-5 days

0

18077

Kawasaki 18077-2096

ARRESTER-SPARK

$17.99

$

In Stock, only 4 left!

0

32033

Kawasaki 32033-2001

PIPE
(Superseded to 32032-2001)

$0.99

$

In Stock, only 3 left!

0

49069

Kawasaki 49069-2267-9X

MUFFLER-ASSY
(Superseded to 49069-2267-9Y)

$209.99

$

Usually ships in 2-5 days

0

49106

Kawasaki 49106-2571-9X

COVER-MUFFLER
(Superseded to 49106-2571-9Y)

$57.99

$

Usually ships in 2-5 days

0

49106A

Kawasaki 49106-2572-9X

COVER-MUFFLER

$20.99

$

In Stock, only 1 left!

0

49107

Kawasaki 49107-2112-YM

COVER-EXHAUST PIPE

$9.99

$

Usually ships in 2-5 days

0

92009

$0.99

$

In Stock, only 1 left!

0

92009A

$0.99

$

In Stock, only 4 left!

0

$0.99

$

In Stock, Qty 10

0

92015A

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92150

Kawasaki 92150-2226

BOLT
(Superseded to 92153-2085)

$3.99

$

In Stock, only 3 left!

0

92153A

$3.99

$

In Stock, only 3 left!

0

92190

$2.99

$

In Stock, only 4 left!

0

172

Kawasaki 172BA0616

BOLT-STUD,6X16
(Superseded to 172B0616)

$1.49

$

In Stock, only 1 left!

0

311

Kawasaki 311R0600

NUT-HEX,6MM
(Superseded to 310R0600)

$

$

Not available

411

Kawasaki 411AA0800

WASHER-PLAIN,8MM
(Superseded to 21026-004)

$0.99

$

Usually ships in 2-5 days

0

411A

Kawasaki 411AB0500

WASHER-PLAIN,5MM
(Superseded to 411C0500)

$

$

Not available

461

Kawasaki 461DA0600

WASHER-SPRING,6MM
(Superseded to 92022-1580)

$0.99

$

In Stock, Qty 6

0
