FE170D-AS01 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

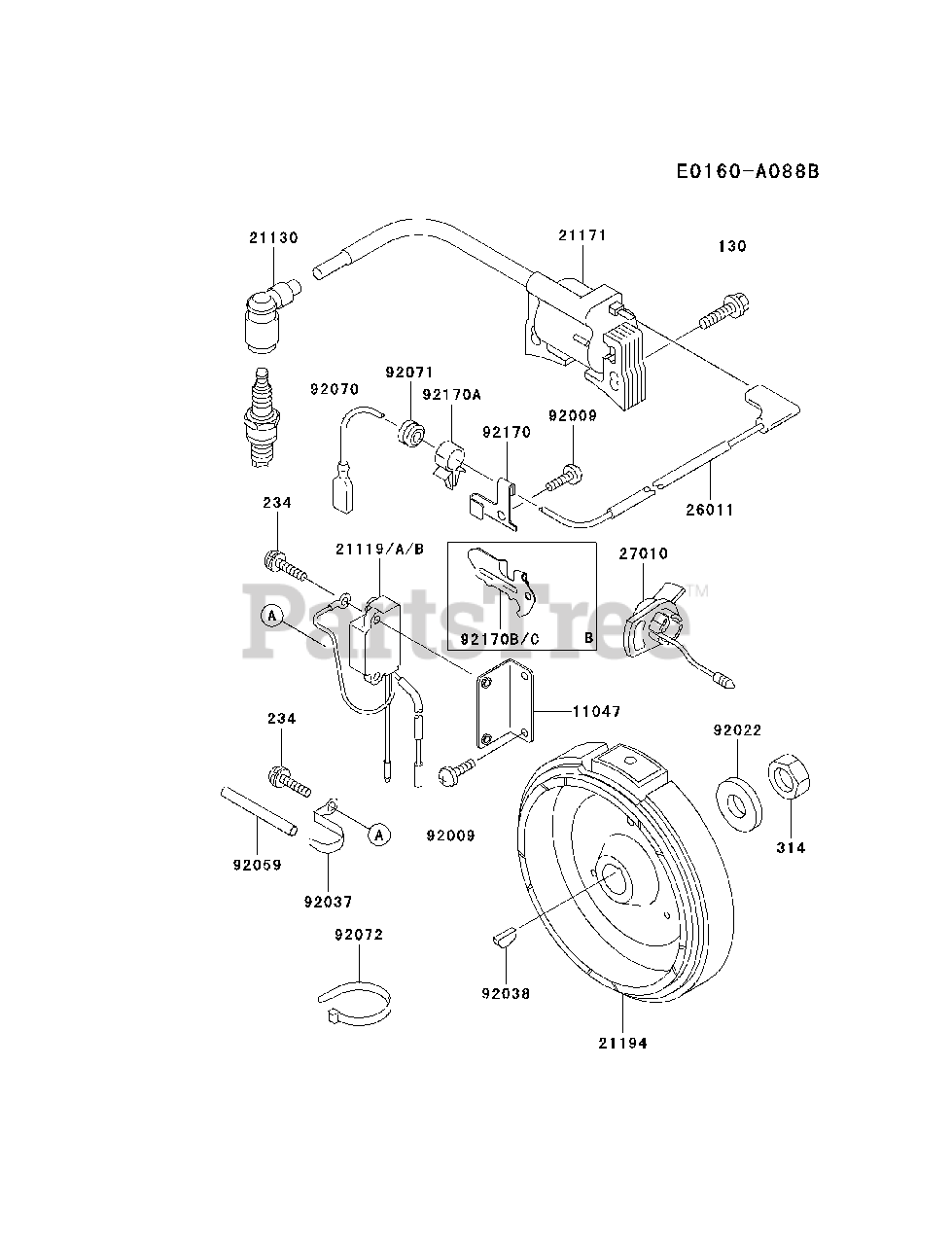

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11047

Kawasaki 11047-2062

BRACKET

$5.99

$

Usually ships in 2-5 days

0

21119

Kawasaki 21119-2143

IGNITER

$

$

Not available

21119B

Kawasaki 21119-2149

IGNITER

$

$

Not available

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, only 1 left!

0

21171

Kawasaki 21171-2174

COIL-ASSY-IGNITION

$103.99

$

Usually ships in 2-5 days

0

21194

Kawasaki 21194-2239

FLYWHEEL-COMP
(Superseded to 21194-2376)

$172.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-2277

WIRE-LEAD

$

$

Not available

27010

Kawasaki 27010-2052

SWITCH
(Superseded to 315801-8511A)

$13.99

$

In Stock, only 2 left!

0

92009

Kawasaki 92009-2166

SCREW,5X8

$0.99

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2102

WASHER

$13.99

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-2006

CLAMP

$1.49

$

Usually ships in 2-5 days

0

92038

Kawasaki 92038-2077

KEY

$2.99

$

In Stock, Qty 14

0

92059

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2077

PLUG-SPARK,BPR5ES
(Superseded to 4006)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92071

Kawasaki 92071-2125

GROMMET

$1.99

$

In Stock, only 1 left!

0

92072

Kawasaki 92072-2003

BAND
(Superseded to 92037-1173)

$3.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2016

CLAMP

$2.99

$

In Stock, only 1 left!

0

92170A

Kawasaki 92170-2047

CLAMP

$

$

Not available

92170C

Kawasaki 92170-2070

CLAMP

$3.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0525

BOLT-FLANGED
(Superseded to 130AA0525)

$0.99

$

In Stock, only 2 left!

0

234

Kawasaki 234B0514

SCREW-PAN-WSP+-
(Superseded to 234AA0514)

$0.99

$

Usually ships in 2-5 days

0

314

Kawasaki 314G1400

NUT-HEX-FINE
(Superseded to 314G1400A)

$1.49

$

In Stock, Qty 7

0
