FE120G-QS00 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

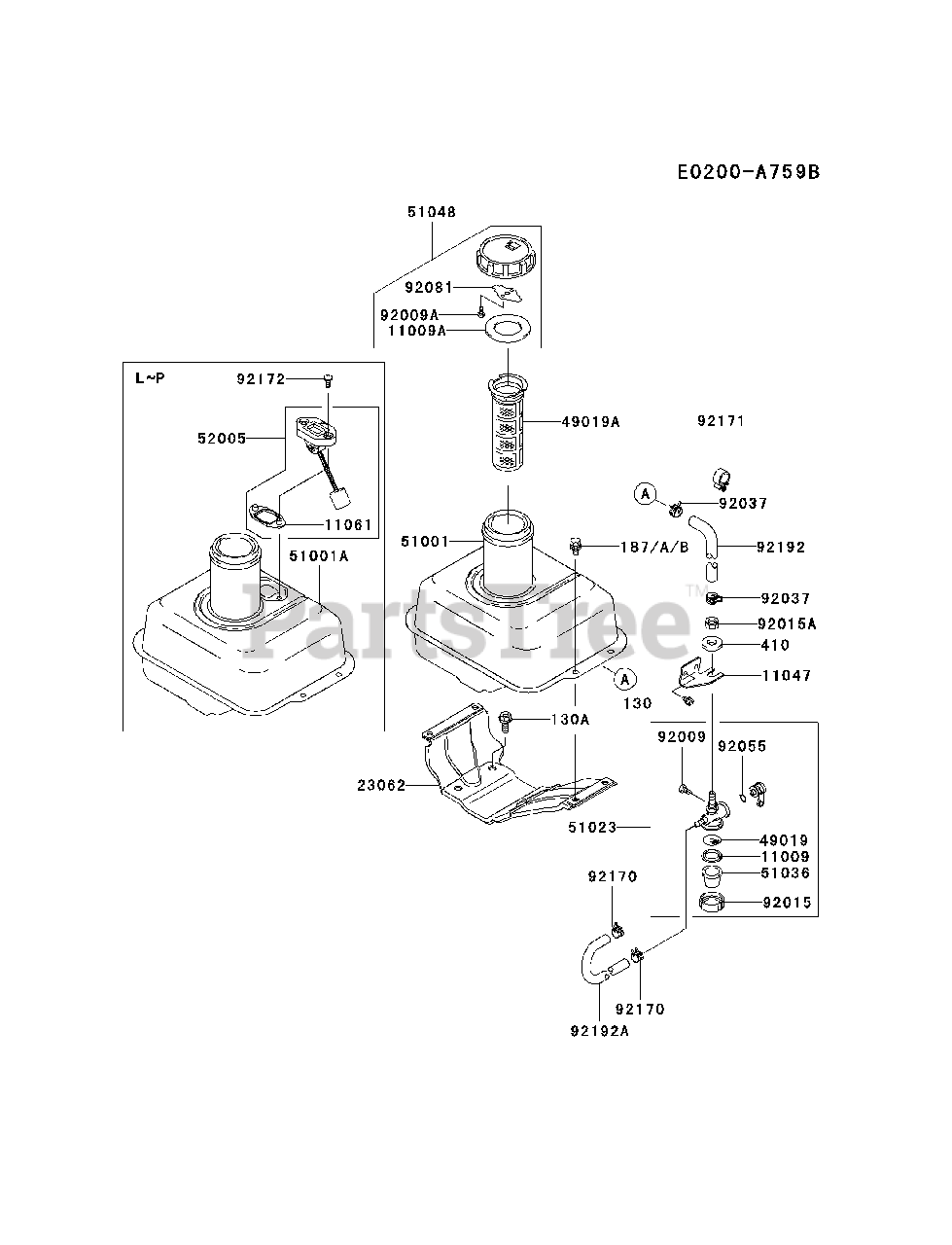

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title
11009

Kawasaki 11009-2021

GASKET
(Superseded to 313650-6518-02)

$

$

Not available

11009A

Kawasaki 11009-2115

GASKET
(Superseded to 11009-2044)

$2.49

$

Usually ships in 2-5 days

0

11047

$3.49

$

Usually ships in 2-5 days

0

23062

Kawasaki 23062-2061-9H

BRACKET-COMP

$71.99

$

Usually ships in 2-5 days

0

49019

Kawasaki 49019-2095

FILTER-FUEL
(Superseded to 49019-2101)

$6.49

$

In Stock, Qty 9

0

49019A

Kawasaki 49019-2106

FILTER-FUEL

$27.99

$

Usually ships in 2-5 days

0

51001

Kawasaki 51001-2275-9H

TANK-COMP-FUEL

$201.99

$

Usually ships in 2-5 days

0

51023

Kawasaki 51023-2131

TAP-ASSY
(Superseded to 51023-2001)

$

$

Not available

51036

Kawasaki 51036-2063

CUP,FUEL TAP
(Superseded to 51036-2001)

$3.99

$

In Stock, only 4 left!

0

51048

Kawasaki 51048-2055

CAP-ASSY-TANK
(Superseded to 51048-2071)

$12.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2004

SCREW
(Superseded to 313650-6517-00)

$0.99

$

In Stock, only 3 left!

0

92009A

Kawasaki 92009-2021

SCREW
(Superseded to 314401-6732A)

$0.99

$

In Stock, only 3 left!

0

$6.49

$

Usually ships in 2-5 days

0

92015A

$1.49

$

In Stock, Qty 9

0

92037

Kawasaki 92037-1181

CLAMP,HOSE CLIP

$3.99

$

Usually ships in 2-5 days

0

92055

$

$

Not available

92081

$2.49

$

In Stock, only 1 left!

0

92170

$1.49

$

In Stock, Qty 14

0

92171

$6.99

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-2108

TUBE,6.2X13.2X200

$

$

Not available

92192A

Kawasaki 92192-2118

TUBE,4X11X160

$18.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0508

BOLT-FLANGED,5X8
(Superseded to 130B0508)

$0.99

$

In Stock, Qty 8

0

130A

Kawasaki 130AA0818

BOLT-FLANGED,8X18

$1.49

$

Usually ships in 2-5 days

0

187

Kawasaki 187BB0616

BOLT-UPSET-WSP,6X16
(Superseded to 187J0616)

$1.49

$

Usually ships in 2-5 days

0

410

Kawasaki 410AA1000

WASHER-PLAIN-SMALL,10MM
(Superseded to 92026058)

$

$

Not available
