FE120G-LS00 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

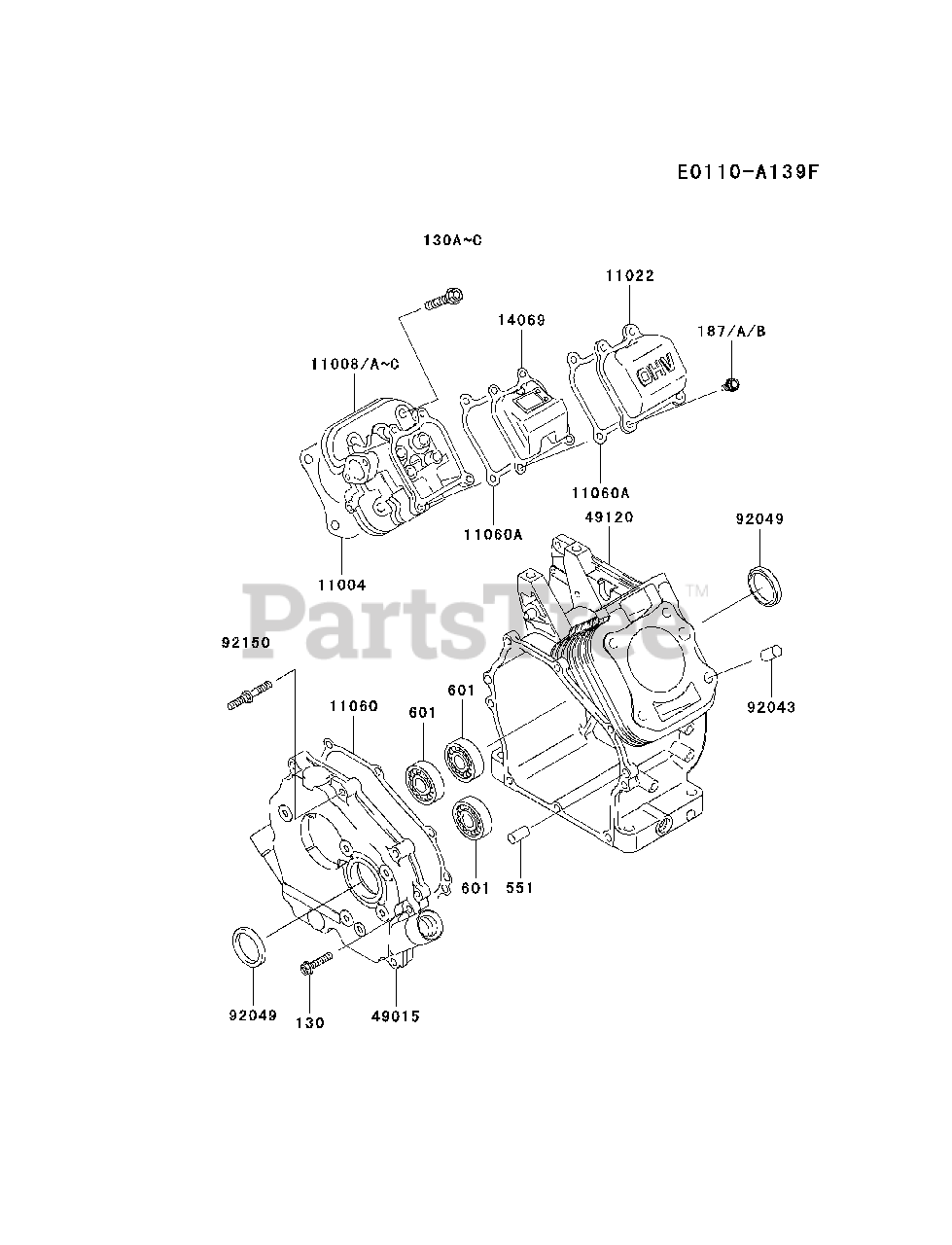

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 11004-2113

GASKET-HEAD

$11.99

$

In Stock, Qty 7

0

11008

Kawasaki 11008-2092

HEAD-COMP-CYLINDER
(Superseded to 11008-2109)

$222.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 11022-2065-9H

CASE-ROCKER

$23.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2044

GASKET,CRANKCASE COVER

$11.99

$

In Stock, only 1 left!

0

11060A

Kawasaki 11060-2291

GASKET,ROCKER CASE
(Superseded to 11060-2048)

$3.99

$

In Stock, Qty 7

0

14069

Kawasaki 14069-2080

BREATHER

$13.99

$

Usually ships in 2-5 days

0

49015

Kawasaki 49015-6103

COVER-CRANKCASE

$126.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-2241

CRANKCASE-COMP

$

$

Not available

92043

Kawasaki 92043-1037

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-2001

SEAL-OIL

$5.49

$

In Stock, Qty 12

0

92150

Kawasaki 92150-2261

BOLT

$6.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130BA0630

BOLT-FLANGED,6X30
(Superseded to 130B0630)

$1.99

$

In Stock, only 3 left!

0

130B

Kawasaki 130CA0845

BOLT-FLANGED,8X45
(Superseded to 130T0845)

$1.49

$

In Stock, Qty 5

0

130C

Kawasaki 130T0845

BOLT-FLANGED,8X45
(Superseded to 130CA0845)

$1.49

$

In Stock, Qty 5

0

187A

Kawasaki 187BB0616

BOLT-UPSET-WSP,6X16
(Superseded to 187J0616)

$1.49

$

Usually ships in 2-5 days

0

187B

Kawasaki 187L0616

BOLT-UPSET-WSP,6X16
(Superseded to 187BB0616)

$1.49

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0612

PIN-DOWEL,6X12

$0.99

$

Usually ships in 2-5 days

0

601

Kawasaki 601A6204

BEARING-BALL

$16.99

$

In Stock, only 3 left!

0
