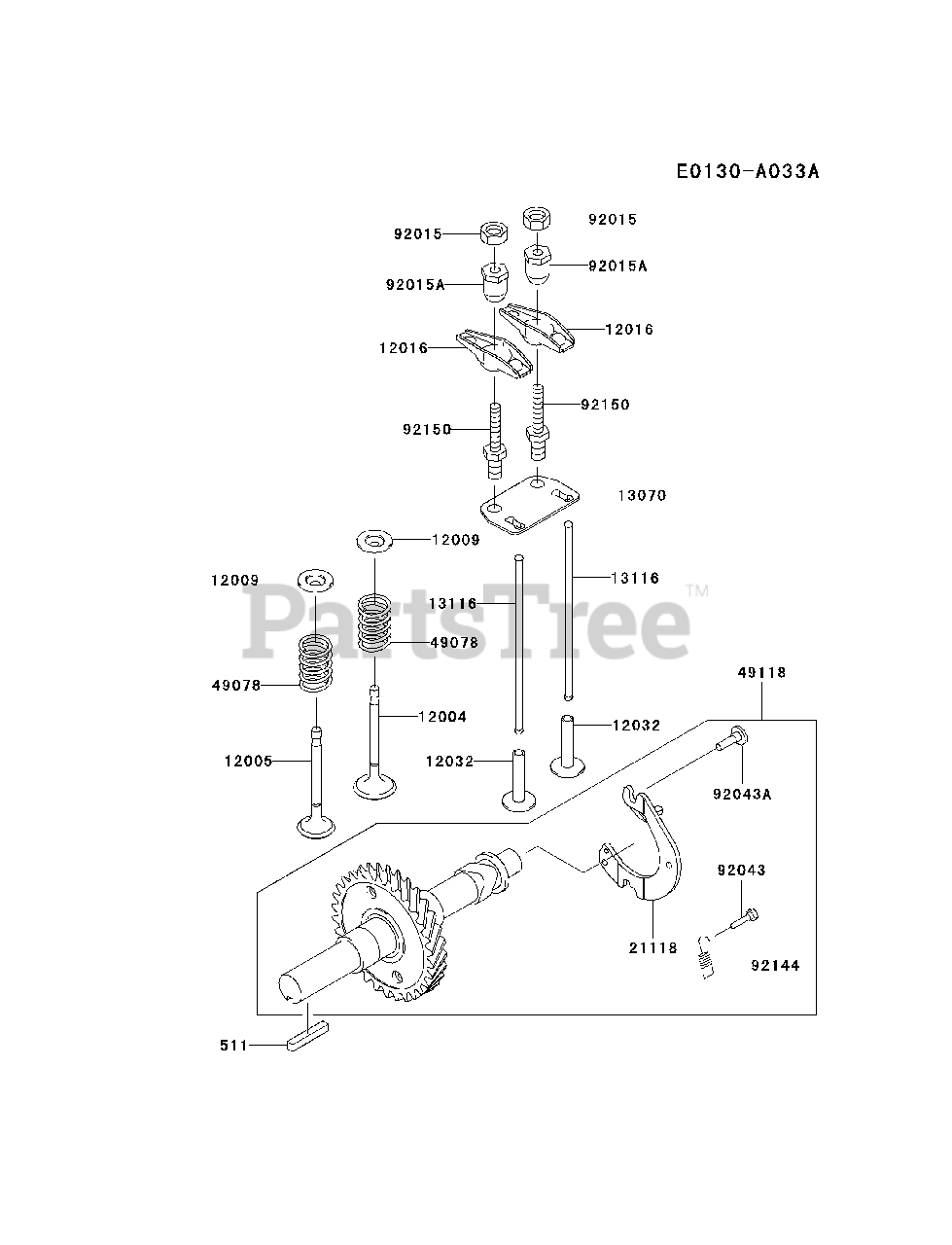

FE120G-HS00 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

VALVE/CAMSHAFT Parts Diagram

  • Title
12004

Kawasaki 12004-2098

VALVE-INTAKE

$23.99

$

Usually ships in 2-5 days

0

12005

Kawasaki 12005-2087

VALVE-EXHAUST

$29.99

$

Usually ships in 2-5 days

0

12009

Kawasaki 12009-2062

RETAINER-VALVE SPRING
(Superseded to 12009-2068)

$1.49

$

Usually ships in 2-5 days

0

12016

Kawasaki 12016-2059

ARM-ROCKER

$5.49

$

Usually ships in 2-5 days

0

12032

$11.99

$

In Stock, only 1 left!

0

13070

Kawasaki 13070-2083

GUIDE
(Superseded to 13070-2117)

$2.49

$

In Stock, only 3 left!

0

13116

$5.49

$

Usually ships in 2-5 days

0

21118

Kawasaki 21118-2084

DECOMPRESSOR

$

$

Not available

49078

Kawasaki 49078-2064

SPRING-ENGINE VALVE
(Superseded to 49078-7001)

$6.99

$

In Stock, Qty 20+

0

49118

Kawasaki 49118-6081

CAMSHAFT-COMP

$180.99

$

Usually ships in 2-5 days

0

$0.99

$

In Stock, only 3 left!

0

92015A

$4.49

$

In Stock, Qty 20+

0

$3.49

$

Usually ships in 2-5 days

0

92043A

$

$

Not available

92144

$5.49

$

Usually ships in 2-5 days

0

92150

$3.49

$

In Stock, only 4 left!

0

511

$

$

Not available
