FE120G-BS03 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

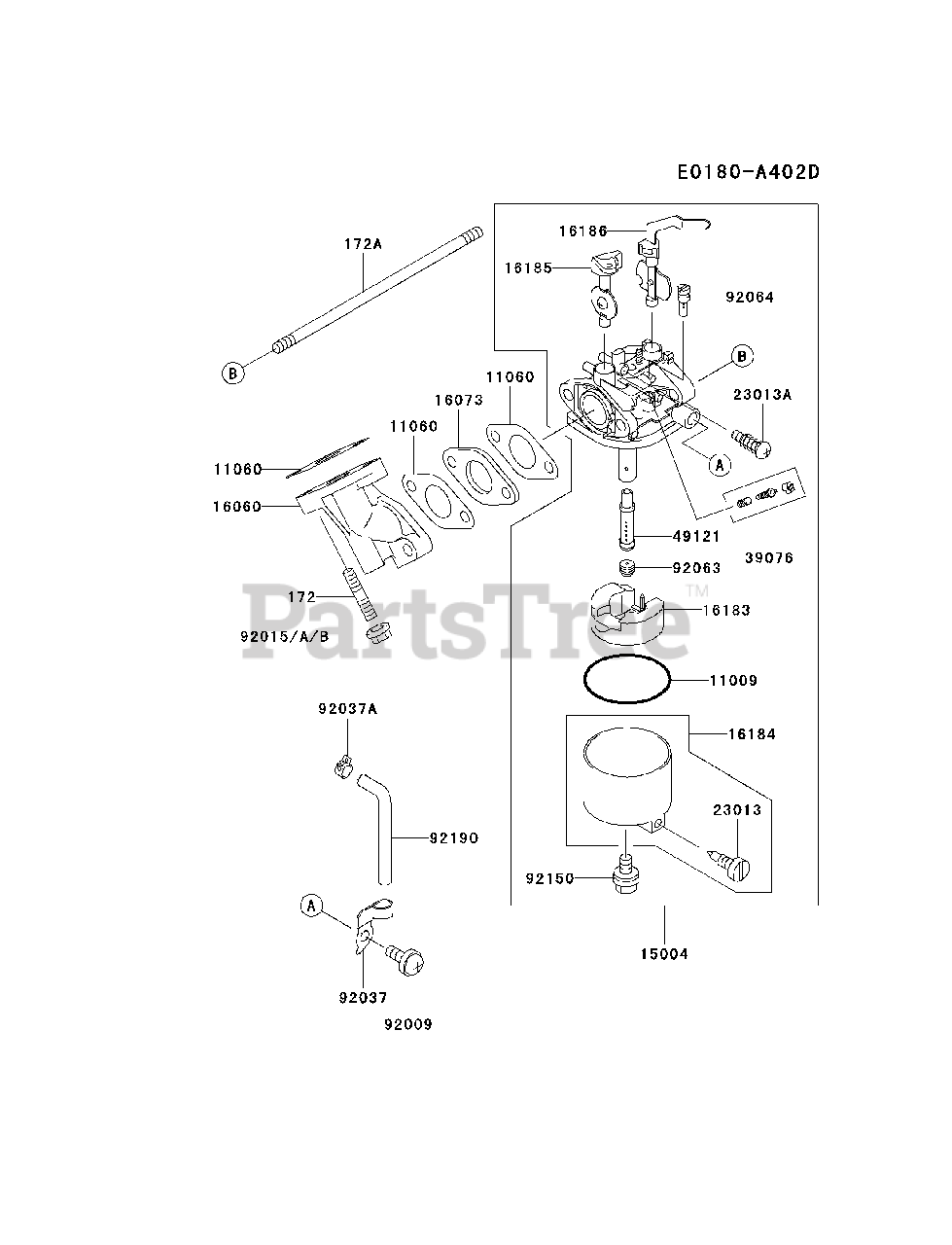

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 11009-2919

GASKET

$10.99

$

In Stock, Qty 18

0

11060

Kawasaki 11060-2051

GASKET,CARBURETOR
(Superseded to 11009-2142)

$1.99

$

In Stock, Qty 7

0

15004

Kawasaki 15004-2030

CARBURETOR-ASSY

$206.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-2160

PIPE-INTAKE

$23.99

$

In Stock, only 1 left!

0

16073

Kawasaki 16073-2180

INSULATOR
(Superseded to 16073-2147)

$2.49

$

In Stock, only 2 left!

0

16183

Kawasaki 16183-2003

FLOAT-ASSY

$49.99

$

Usually ships in 2-5 days

0

16184

Kawasaki 16184-2002

CHAMBER-ASSY-FLOAT

$50.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 16185-2022

VALVE-ASSY-THROTTLE

$58.99

$

Usually ships in 2-5 days

0

16186

Kawasaki 16186-2047

VALVE-ASSY-CHOKE

$57.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 23013-2053

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

23013A

Kawasaki 23013-2054

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

39076

Kawasaki 39076-2055

LIMITER

$12.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 49121-2263

NOZZLE-MAIN

$

$

Not available

92009

Kawasaki 92009-2322

SCREW

$0.99

$

In Stock, only 4 left!

0

92015A

Kawasaki 92015-1367

NUT

$4.49

$

In Stock, only 2 left!

0

92037

Kawasaki 92037-2085

CLAMP

$2.99

$

Usually ships in 2-5 days

0

92037A

Kawasaki 92037-2139

CLAMP

$0.99

$

In Stock, only 4 left!

0

92063

Kawasaki 92063-2315

JET-MAIN,#65

$15.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 92064-2086

JET-PILOT,#40

$14.99

$

Usually ships in 2-5 days

0

92150

Kawasaki 92150-2209

BOLT

$7.49

$

In Stock, only 1 left!

0

92190

Kawasaki 92190-2105

TUBE

$1.99

$

In Stock, only 4 left!

0

172

Kawasaki 172BA0618

BOLT-STUD,6X18
(Superseded to 172G0618)

$1.49

$

In Stock, only 1 left!

0

172A

Kawasaki 172BA0673

BOLT-STUD,6X73
(Superseded to 172G0673)

$1.99

$

Usually ships in 2-5 days

0
