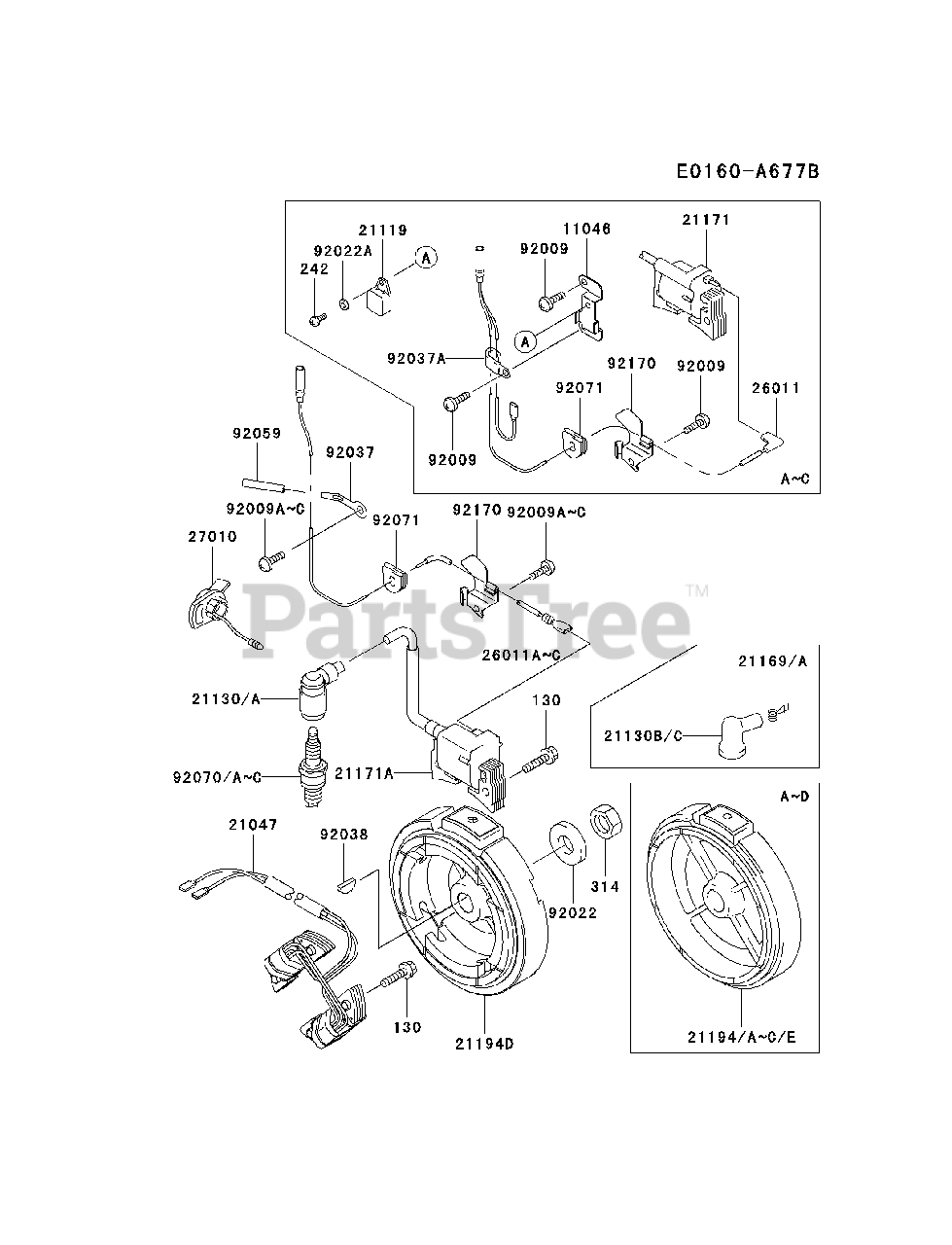

FE120G-AS00 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11046

Kawasaki 11046-2142

BRACKET

$3.49

$

Usually ships in 2-5 days

0

21119

Kawasaki 21119-2139

IGNITER
(Superseded to 21119-2119)

$102.99

$

Usually ships in 2-5 days

0

21130B

Kawasaki 21130-2066

CAP-SPARK PLUG
(Superseded to 21130-2001)

$2.49

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2004

TERMINAL
(Superseded to 21169-2057)

$

$

Not available

21171

Kawasaki 21171-2188

COIL-ASSY-IGNITION

$

$

Not available

21194

Kawasaki 21194-2245

FLYWHEEL-COMP
(Superseded to 21194-2330)

$166.99

$

Usually ships in 2-5 days

0

21194C

Kawasaki 21194-2280

FLYWHEEL-COMP
(Superseded to 21194-2330)

$166.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-2270

WIRE-LEAD

$

$

Not available

92009

Kawasaki 92009-2166

SCREW,5X8

$0.99

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2102

WASHER

$13.99

$

Usually ships in 2-5 days

0

92022A

Kawasaki 92022-2105

WASHER

$5.49

$

Usually ships in 2-5 days

0

92037A

Kawasaki 92037-2171

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92038

Kawasaki 92038-2077

KEY

$2.99

$

In Stock, Qty 13

0

92070

Kawasaki 92070-1167

PLUG-SPARK,BP5ES,SOLID
(Superseded to BP5ES)

Note: NGK

$2.99

$

Usually ships in 2-5 days

0
