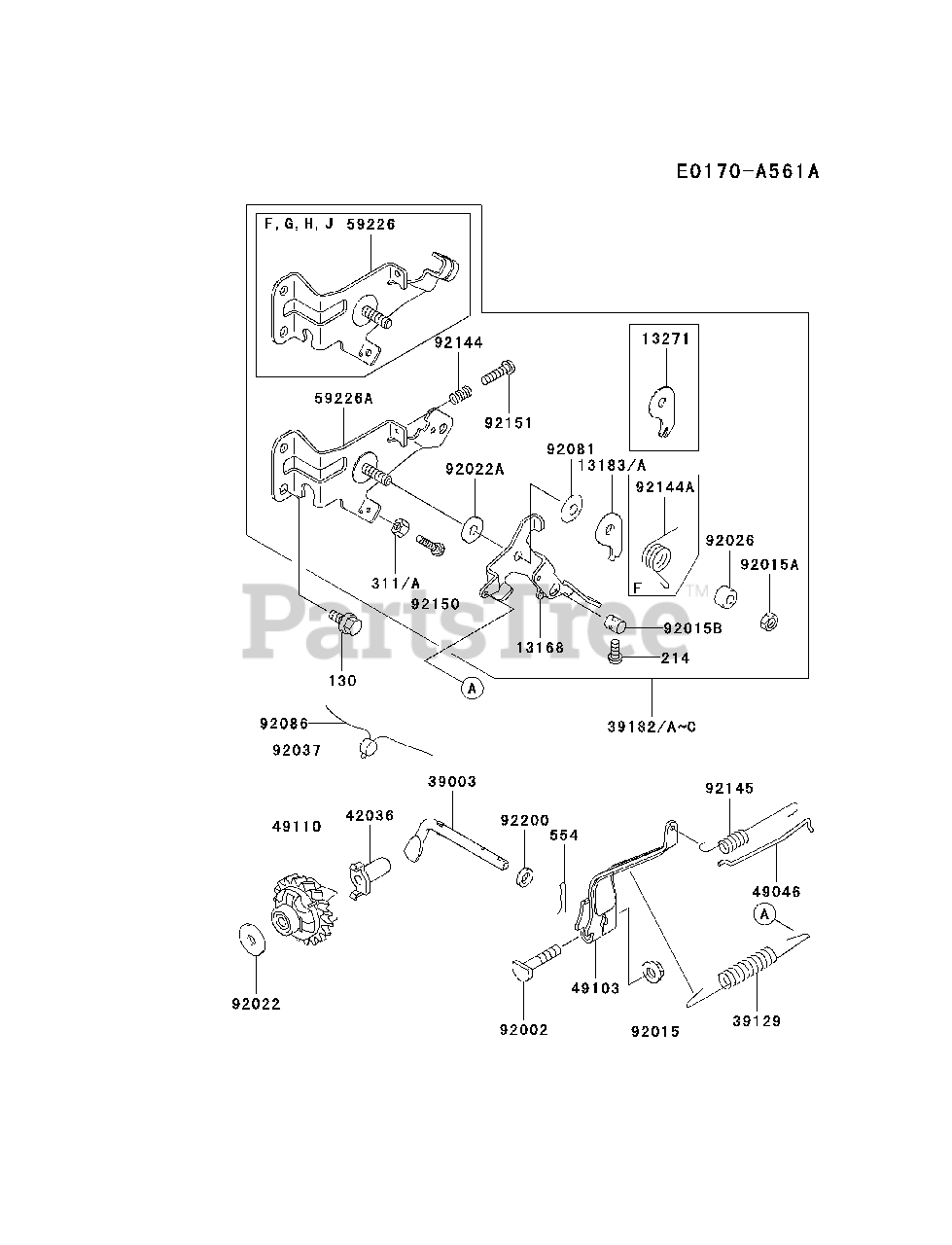

FE120D-JS02 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title
13168

Kawasaki 13168-2425

LEVER
(Superseded to 13168-2330)

$4.99

$

Usually ships in 2-5 days

0

13183

Kawasaki 13183-2371

PLATE
(Superseded to 13271-2112)

$1.49

$

In Stock, Qty 5

0

39003

$8.49

$

Usually ships in 2-5 days

0

39129

Kawasaki 39129-2072

SPRING-GOVERNOR

$2.49

$

Usually ships in 2-5 days

0

39182B

Kawasaki 39182-2177

PANEL-ASSY-CONTROL

$

$

Not available

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49046

Kawasaki 49046-2101

ROD-GOVERNOR

$1.99

$

In Stock, only 1 left!

0

49103

Kawasaki 49103-2124

ARM-GOVERNOR

$8.49

$

Usually ships in 2-5 days

0

49110

Kawasaki 49110-2076

GOVERNOR-ASSY
(Superseded to 49110-2081)

$

$

Not available

59226

Kawasaki 59226-2329

PANEL-CONTROL

$

$

Not available

92002

$1.99

$

In Stock, Qty 6

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92015A

Kawasaki 92015-2051

NUT
(Superseded to 920151339)

$1.99

$

In Stock, only 1 left!

0

92015B

$5.49

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2019

WASHER
(Superseded to 92200-2036)

$1.49

$

In Stock, Qty 12

0

92022A

$1.99

$

In Stock, only 3 left!

0

92026

$6.49

$

In Stock, Qty 5

0

92037

Kawasaki 92093-2052

SEAL
(Superseded to 92093-2131)

$0.99

$

Usually ships in 2-5 days

0

92081

$0.99

$

In Stock, only 3 left!

0

92086

$0.99

$

Usually ships in 2-5 days

0

92144

$5.49

$

Usually ships in 2-5 days

0

92145

$2.99

$

Usually ships in 2-5 days

0

92150

$

$

Not available

92151

$

$

Not available

92200

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

214

Kawasaki 214B0414

SCREW-PAN+-
(Superseded to 214AA0414)

$0.99

$

In Stock, only 2 left!

0

311

Kawasaki 311B0400

NUT-HEX
(Superseded to 311AA0400)

$0.99

$

In Stock, Qty 10

0

554

Kawasaki 554A0600

PIN-SNAP,6MM
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0
