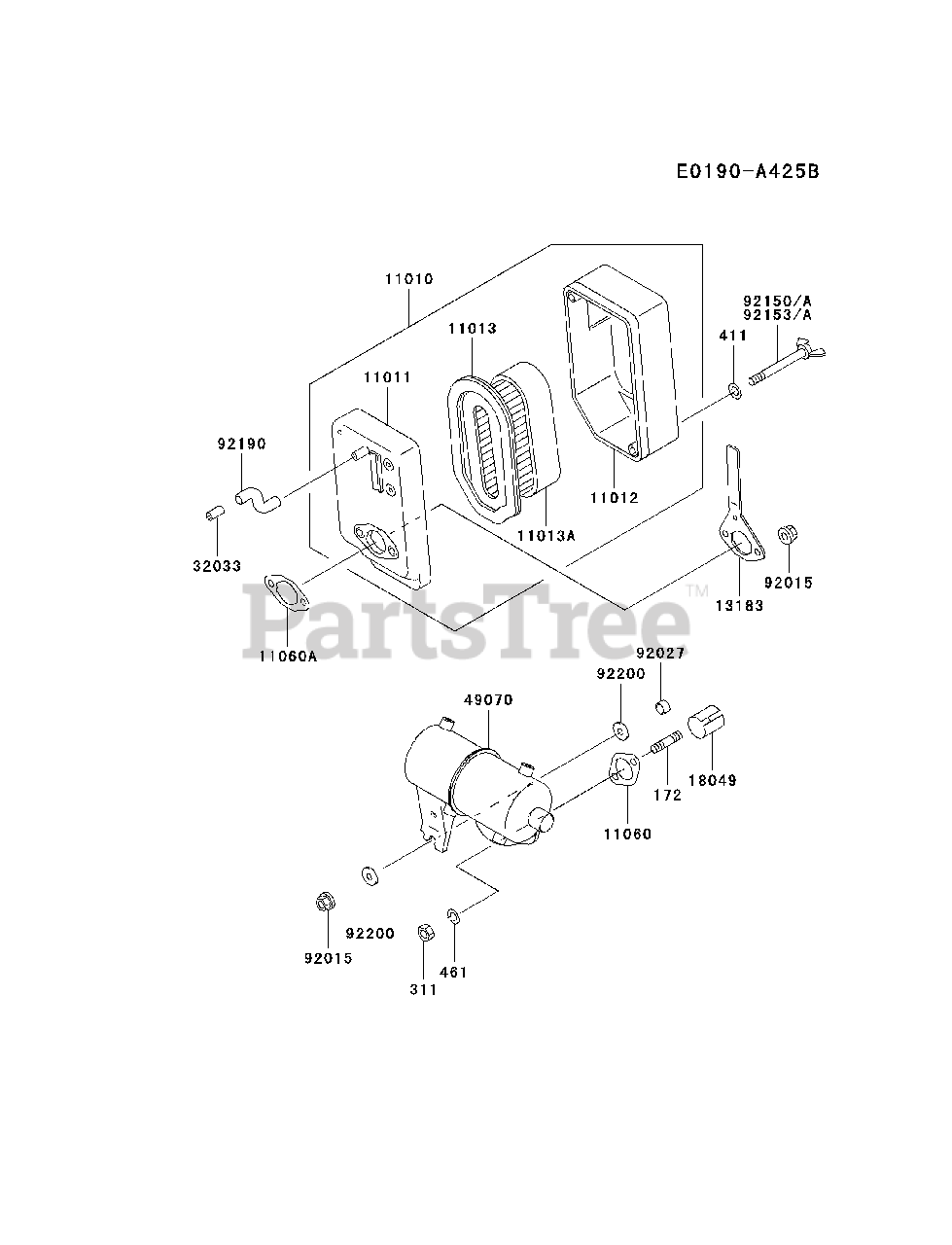

FE120D-GS02 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-2459

FILTER-ASSY-AIR
(Superseded to 11010-2444)

$82.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 11011-2241

CASE-AIR FILTER
(Superseded to 11011-2218)

$18.99

$

Usually ships in 2-5 days

0

11012

Kawasaki 11012-2325

CAP,AIR FILTER
(Superseded to 11012-2293)

$15.99

$

In Stock, only 3 left!

0

11013

Kawasaki 11013-2132

ELEMENT-AIR FILTER

$20.99

$

In Stock, Qty 14

0

11013A

Kawasaki 11013-2133

ELEMENT-AIR FILTER

$6.99

$

In Stock, Qty 5

0

11060

Kawasaki 11060-2037

GASKET,MUFFLER
(Superseded to 11009-2124)

$4.99

$

Usually ships in 2-5 days

0

11060A

Kawasaki 11060-2049

GASKET,AIR FILTER

$1.49

$

In Stock, Qty 6

0

13183

Kawasaki 13183-2527

PLATE
(Superseded to 13183-2416)

$9.49

$

In Stock, only 1 left!

0

18049

Kawasaki 18049-2220

PIPE-EXHAUST

$3.49

$

Usually ships in 2-5 days

0

32033

Kawasaki 32033-2001

PIPE
(Superseded to 32032-2001)

$0.99

$

In Stock, only 3 left!

0

49070

Kawasaki 49070-2725-9Y

MUFFLER-COMP

$203.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

92027

Kawasaki 92027-2086

COLLAR

$6.99

$

Usually ships in 2-5 days

0

92150A

Kawasaki 92150-2226

BOLT
(Superseded to 92153-2085)

$3.99

$

In Stock, only 3 left!

0

92153A

Kawasaki 92153-2085

BOLT

$3.99

$

In Stock, only 3 left!

0

92190

Kawasaki 92190-2043

TUBE

$2.99

$

In Stock, only 4 left!

0

92200

Kawasaki 92200-2037

WASHER,6.5X18X2.0

$0.99

$

In Stock, only 4 left!

0

172

Kawasaki 172G0616

BOLT-STUD
(Superseded to 172BA0616)

$1.49

$

In Stock, only 1 left!

0

311

Kawasaki 311R0600

NUT-HEX
(Superseded to 310R0600)

$

$

Not available

411

Kawasaki 411F0500

WASHER-PLAIN
(Superseded to 411AB0500)

$0.99

$

In Stock, Qty 7

0

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 10

0
