FE120D-ES02 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

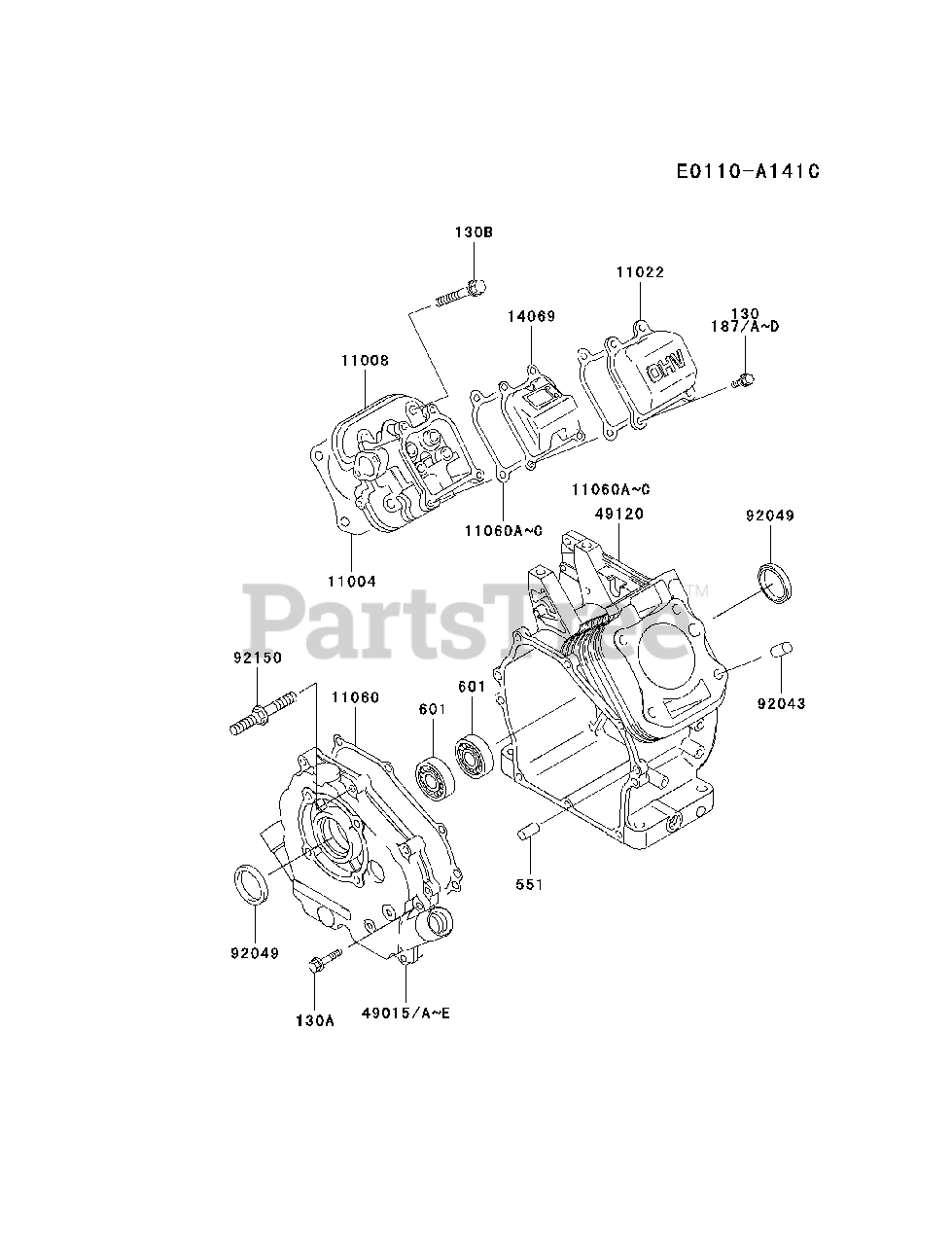

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 11004-2113

GASKET-HEAD

$11.99

$

In Stock, Qty 7

0

11008

Kawasaki 11008-2092

HEAD-COMP-CYLINDER
(Superseded to 11008-2109)

$222.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 11022-2065-9H

CASE-ROCKER

$23.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2044

GASKET,CRANKCASE COVER

$11.99

$

In Stock, only 1 left!

0

11060B

Kawasaki 11060-2291

GASKET,ROCKER CASE
(Superseded to 11060-2048)

$3.99

$

In Stock, Qty 7

0

14069

Kawasaki 14069-2080

BREATHER

$13.99

$

Usually ships in 2-5 days

0

49015D

Kawasaki 49015-6211

COVER-CRANKCASE
(Superseded to 49015-6118)

$125.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-2241

CRANKCASE-COMP

$

$

Not available

92043

Kawasaki 92043-1037

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-2001

SEAL-OIL

$5.49

$

In Stock, Qty 12

0

92150

Kawasaki 92150-2261

BOLT

$6.99

$

Usually ships in 2-5 days

0

130A

Kawasaki 130G0630

BOLT-FLANGED
(Superseded to 130BA0630)

$1.99

$

In Stock, Qty 15

0

130B

Kawasaki 130T0845

BOLT-FLANGED
(Superseded to 130CA0845)

$1.49

$

In Stock, Qty 5

0

187C

Kawasaki 187J0616

BOLT-UPSET-WSP
(Superseded to 187BB0616)

$1.49

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0612

PIN-DOWEL

$0.99

$

Usually ships in 2-5 days

0

601

Kawasaki 601A6204

BEARING-BALL

$16.99

$

In Stock, only 3 left!

0
