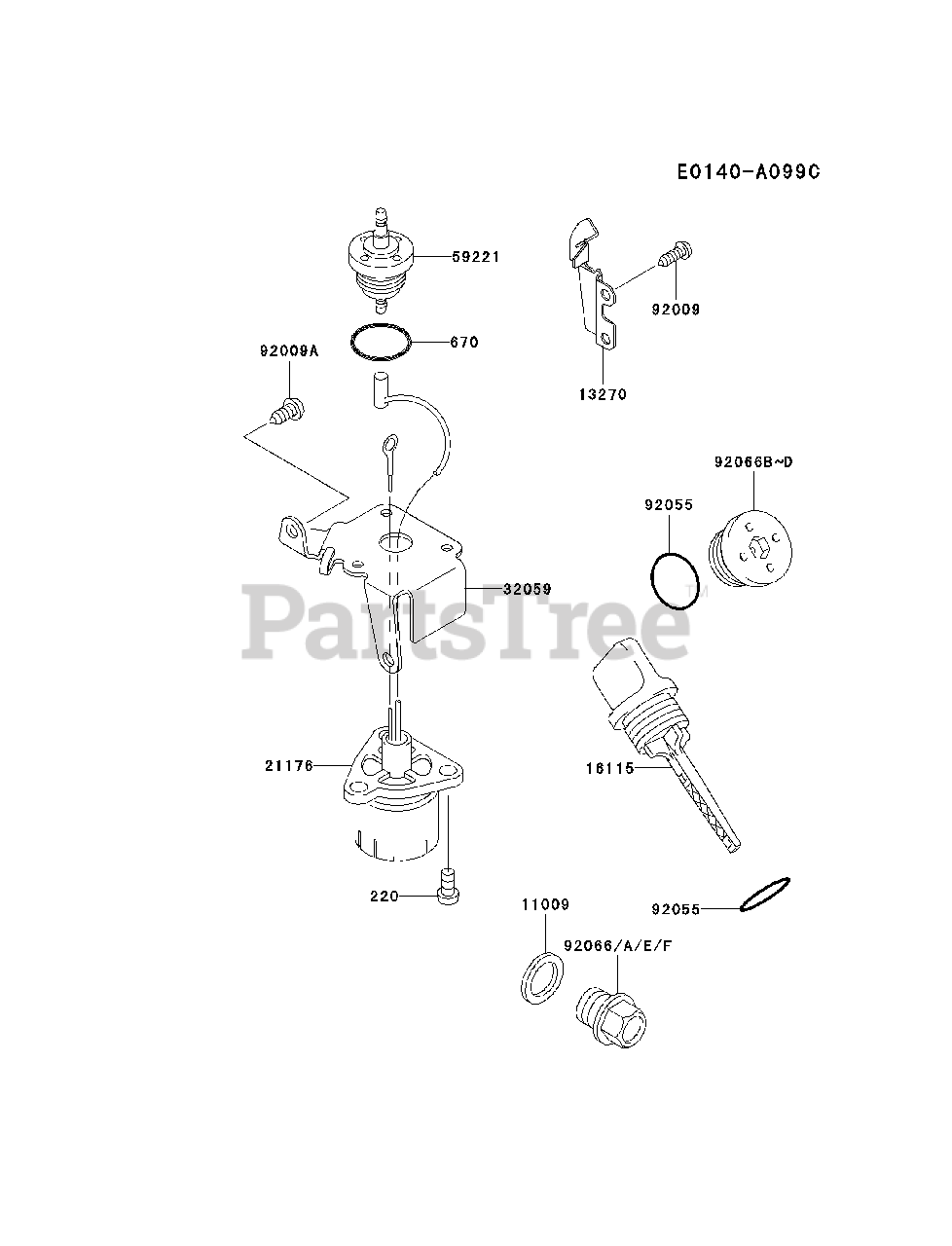

FE120D-CS04 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 11009-2175

GASKET,14.2X19X2
(Superseded to 317370-7883-00)

$1.99

$

In Stock, Qty 15

0

13270

Kawasaki 13270-2001

PLATE

$

$

Not available

16115

Kawasaki 16115-2091

CAP-OIL FILLER

$5.99

$

Usually ships in 2-5 days

0

21176

Kawasaki 21176-2100

SENSOR

$61.99

$

In Stock, only 3 left!

0

32059

Kawasaki 32059-2096

BRACKET-SWITCH

$

$

Not available

59221

Kawasaki 59221-2123

CONNECTOR-CORD
(Superseded to 59221-2054)

$51.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2307

SCREW

$0.99

$

In Stock, only 1 left!

0

92009A

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92055

Kawasaki 92055-2185

RING-O,20MM

$1.49

$

In Stock, only 2 left!

0

92066A

Kawasaki 92066-2203

PLUG,DRAIN
(Superseded to 92066-2253)

$2.49

$

In Stock, only 2 left!

0

92066C

Kawasaki 92066-2243

PLUG

$6.49

$

In Stock, only 1 left!

0

92066F

Kawasaki 92066-2253

PLUG,14X12

$2.49

$

In Stock, only 2 left!

0

220

Kawasaki 220AA0408

SCREW-PAN-CROS,4X8
(Superseded to 220B0408)

$0.99

$

In Stock, Qty 12

0

670

Kawasaki 670B2015

O RING,15MM

$1.49

$

In Stock, only 4 left!

0
