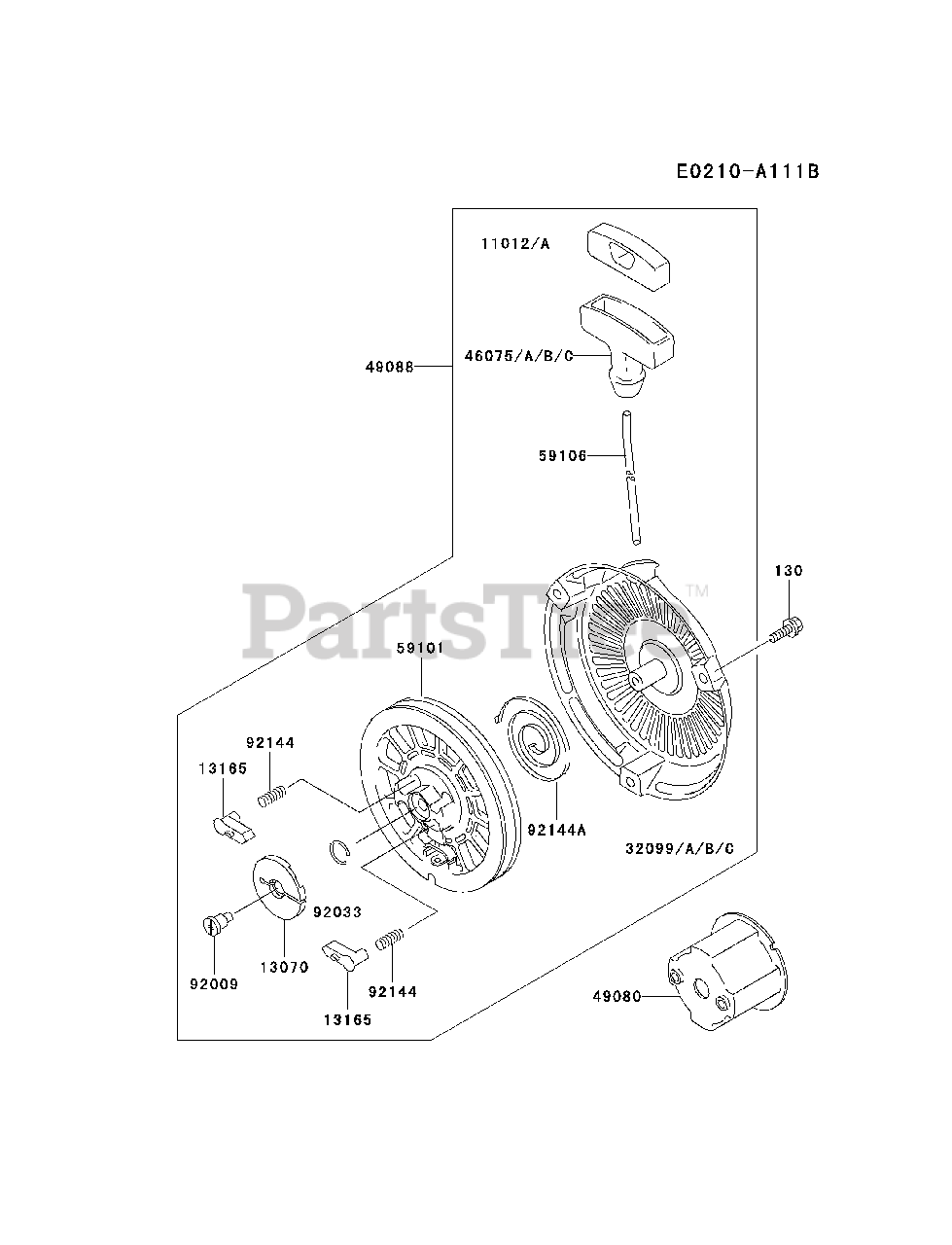

FE120D-CS00 - Kawasaki Engine STARTER Parts Diagram

Engine

STARTER Parts Diagram

  • Title
11012

$4.99

$

Usually ships in 2-5 days

0

13070

Kawasaki 13070-2088

GUIDE,PAWL

$6.49

$

In Stock, only 3 left!

0

13165

Kawasaki 13165-2082

PAWL,RECOIL STARTER

$4.99

$

In Stock, only 1 left!

0

32099B

Kawasaki 32099-2277-9H

CASE,RECOIL STARTER
(Superseded to 32099-2233-9H)

$57.99

$

Usually ships in 2-5 days

0

46075B

Kawasaki 46075-2091

GRIP,RECOIL STARTER
(Superseded to 46075-2003)

$9.49

$

Usually ships in 2-5 days

0

49080

Kawasaki 49080-2163

PULLEY-STARTING

$10.99

$

Usually ships in 2-5 days

0

49088

Kawasaki 49088-2409-9H

STARTER-RECOIL

$90.99

$

In Stock, Qty 9

0

59101

Kawasaki 59101-2086

REEL,RECOIL STARTER

$29.99

$

In Stock, only 2 left!

0

59106

Kawasaki 59106-2119

ROPE,4X1500

$12.99

$

Usually ships in 2-5 days

0

92009

$2.99

$

Usually ships in 2-5 days

0

92033

$0.99

$

In Stock, Qty 5

0

92144

Kawasaki 92144-2177

SPRING,RETURN

$0.99

$

In Stock, Qty 6

0

92144A

$20.99

$

In Stock, only 1 left!

0

130

Kawasaki 130B0608

BOLT-FLANGED
(Superseded to 130AA0608)

$0.99

$

In Stock, Qty 20+

0
