FE120D-CS00 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

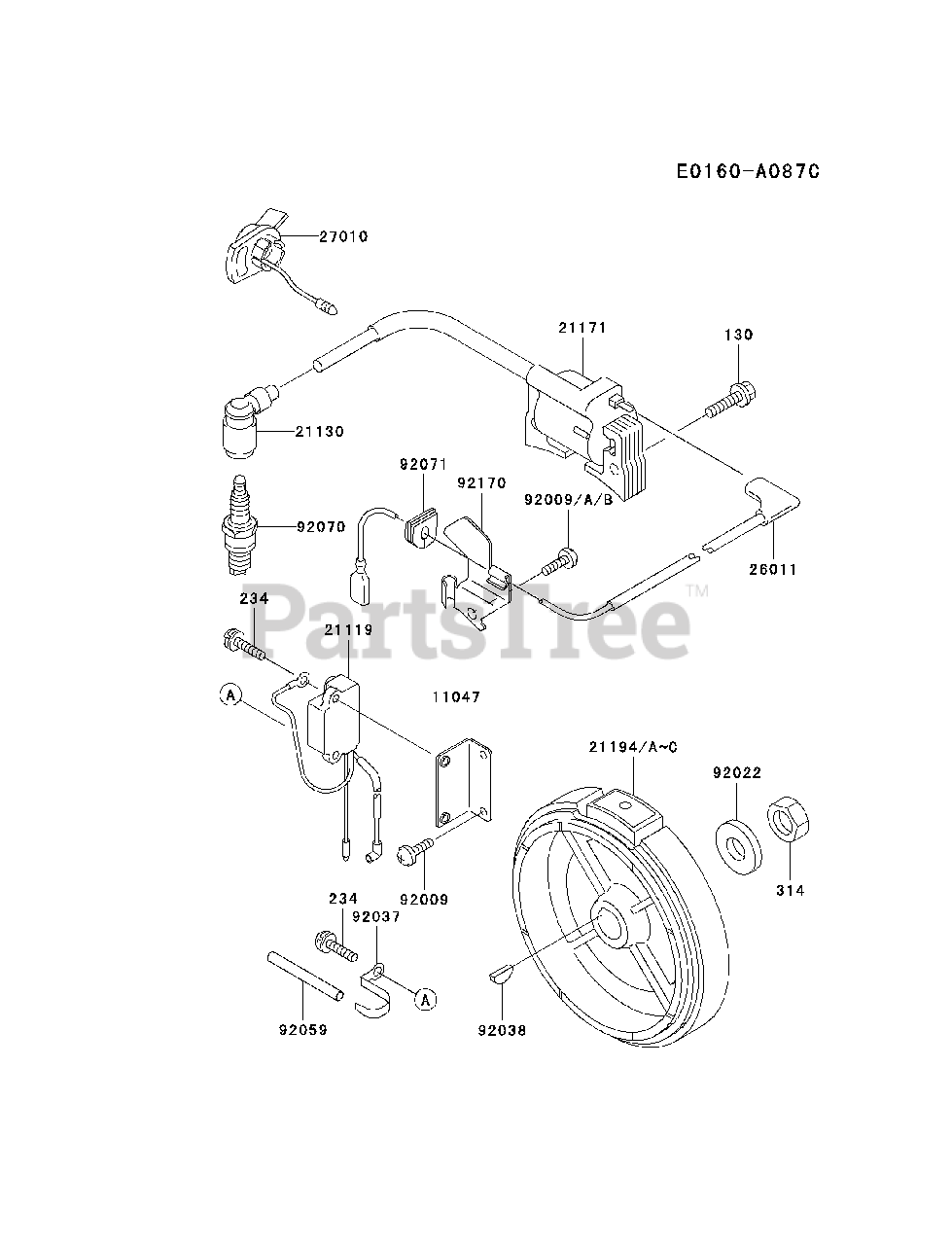

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11047

Kawasaki 11047-2062

BRACKET

$5.99

$

Usually ships in 2-5 days

0

21119

Kawasaki 21119-2149

IGNITER

$

$

Not available

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21171

Kawasaki 21171-2188

COIL-ASSY-IGNITION

$

$

Not available

21194C

Kawasaki 21194-2330

FLYWHEEL-COMP
(Superseded to 21194-2245)

$166.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-2277

WIRE-LEAD

$

$

Not available

27010

Kawasaki 27010-2052

SWITCH
(Superseded to 315801-8511A)

$13.99

$

In Stock, only 2 left!

0

92009

Kawasaki 92009-2166

SCREW,5X8

$0.99

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2166

SCREW,5X8

$0.99

$

Usually ships in 2-5 days

0

92009B

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92022

Kawasaki 92022-2102

WASHER

$13.99

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-2006

CLAMP

$1.49

$

Usually ships in 2-5 days

0

92038

Kawasaki 92038-2077

KEY

$2.99

$

In Stock, Qty 13

0

92059

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2077

PLUG-SPARK,BPR5ES,SOLID
(Superseded to 4006)

$3.99

$

In Stock, Qty 20+

0

92071

Kawasaki 92071-2135

GROMMET
(Superseded to 92071-2159)

$1.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2062

CLAMP

$

$

Not available

130

Kawasaki 130B0625

BOLT-FLANGED
(Superseded to 130AA0625)

$0.99

$

In Stock, Qty 20+

0

234

Kawasaki 234B0514

SCREW-PAN-WSP+-
(Superseded to 234AA0514)

$0.99

$

Usually ships in 2-5 days

0

314

Kawasaki 314G1400

NUT-HEX-FINE
(Superseded to 314G1400A)

$1.49

$

In Stock, Qty 7

0
