FD851D-PS04 - Kawasaki Engine STARTER Parts Diagram

Engine

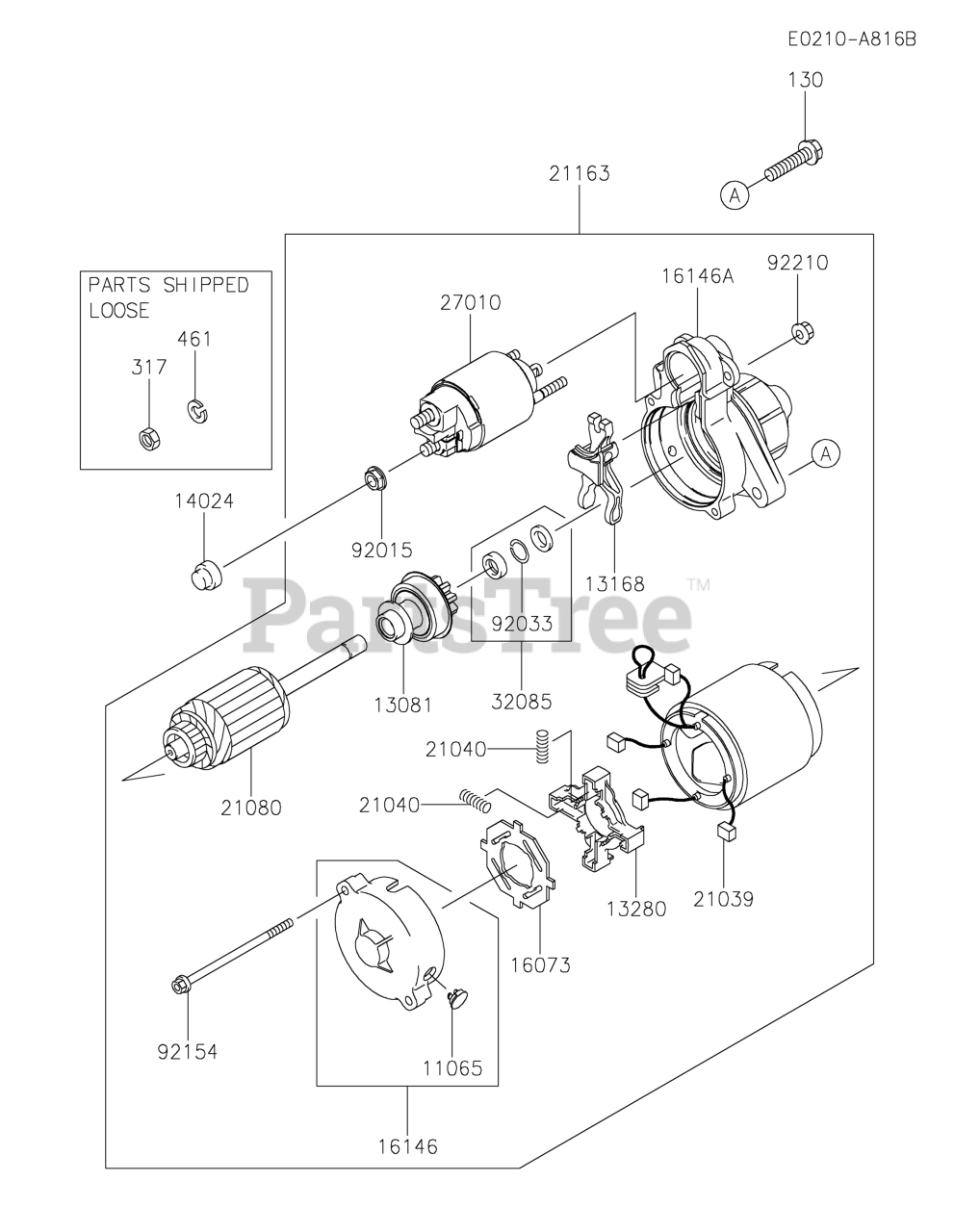

STARTER Parts Diagram

  • Title

11065

Kawasaki 11065-2118

CAP
(Superseded to 14091-7042)

$3.99

$

Usually ships in 2-5 days

0

13081

Kawasaki 13081-0711

CLUTCH-ASSY

$

$

Currently unavailable

13168

Kawasaki 13168-0907

LEVER

$

$

Currently unavailable

13280

Kawasaki 13280-0873

HOLDER,BRUSH
(Superseded to 130912068)

$29.99

$

Usually ships in 2-5 days

0

14024

Kawasaki 14024-2205

COVER

$1.49

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-0854

INSULATOR
(Superseded to 160732098)

$10.99

$

Usually ships in 2-5 days

0

16146

Kawasaki 16146-0889

COVER-ASSY

$

$

Currently unavailable

16146A

Kawasaki 16146-0890

COVER-ASSY

$

$

Currently unavailable

21039

Kawasaki 21039-0011

BRUSH,STARTER-ELECTRIC
(Superseded to 210392059)

$15.99

$

In Stock, only 1 left!

0

21040

Kawasaki 21040-0005

SPRING-BRUSH
(Superseded to 210402052)

$3.99

$

Usually ships in 2-5 days

0

21080

Kawasaki 21080-0013

ARMATURE

$

$

Currently unavailable

21163

Kawasaki 21163-0798

STARTER-ELECTRIC

$

$

Currently unavailable

27010

Kawasaki 27010-0843

SWITCH,MAGNET
(Superseded to 270107005)

$189.99

$

In Stock, Qty 10

0

32085

Kawasaki 32085-0797

STOPPER,PINION
(Superseded to 320852097)

$15.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-2147

NUT

$7.49

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-0777

RING-SNAP
(Superseded to 920332081)

$6.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-2116

BOLT
(Superseded to 920022277)

$13.99

$

In Stock, Qty 5

0

92210

Kawasaki 92210-1493

NUT
(Superseded to 920152146)

$1.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130BA0835

BOLT-FLANGED,8X35
(Superseded to 130G0835)

$1.99

$

In Stock, only 3 left!

0

317

Kawasaki 317AA0800

NUT-HEX-SMALL,8MM
(Superseded to 92017-006)

$0.99

$

In Stock, Qty 19

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
