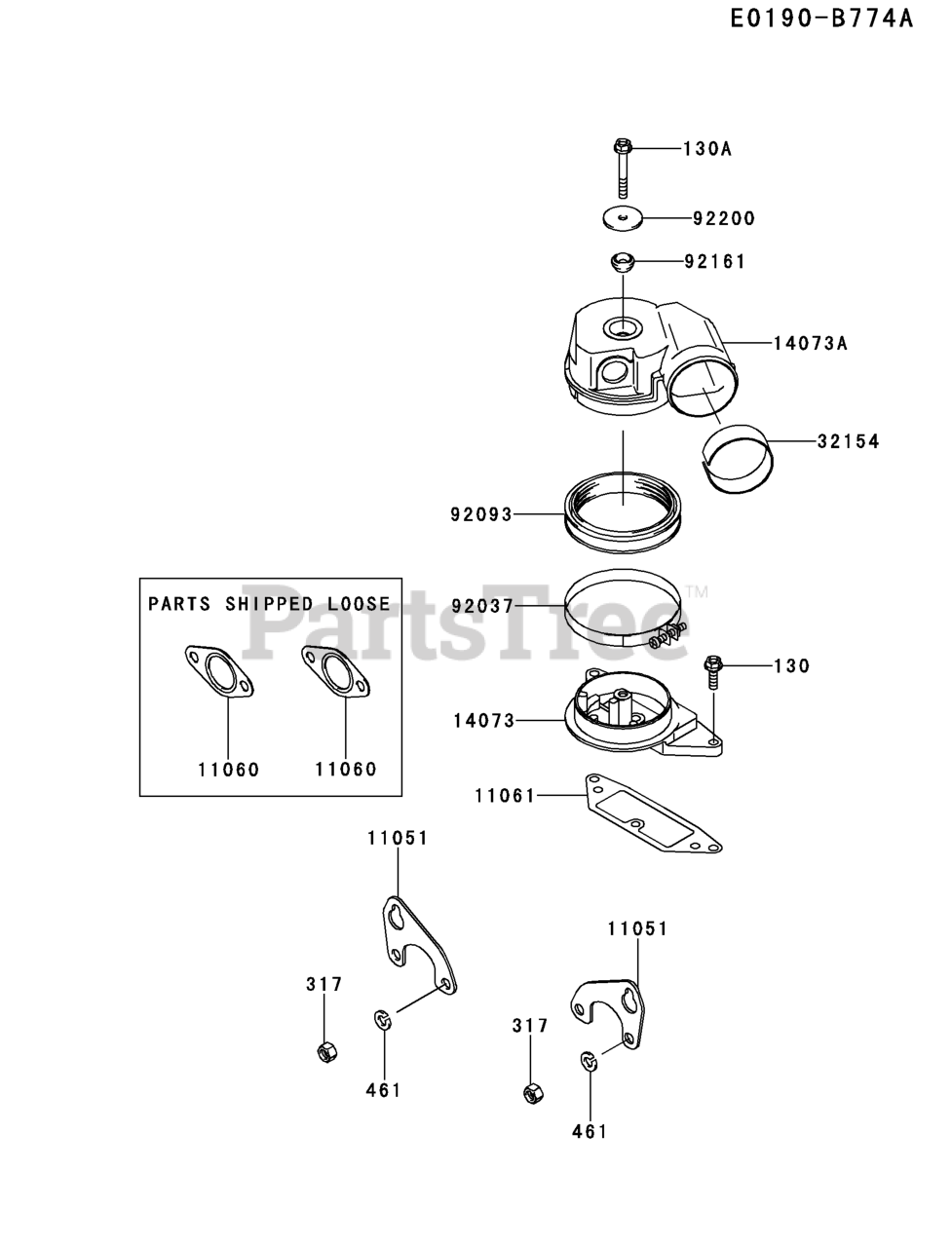

FD851D-PS01 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11051

Kawasaki 11051-2088

BRACKET

$8.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2467

GASKET,MUFFLER

$6.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-2085

GASKET
(Superseded to 11060-2474)

$5.49

$

In Stock, Qty 10

0

14073

Kawasaki 14073-2084

DUCT,LOW
(Superseded to 14073-2075)

$29.99

$

In Stock, only 1 left!

0

14073A

Kawasaki 14073-2086

DUCT

$73.99

$

Usually ships in 2-5 days

0

32154

Kawasaki 32154-2059

PIPE,INSIDE DUCT

$6.99

$

In Stock, only 1 left!

0

92037

Kawasaki 92037-1654

CLAMP

$13.99

$

Usually ships in 2-5 days

0

92093

Kawasaki 92093-2118

SEAL

$12.99

$

In Stock, only 1 left!

0

92161

Kawasaki 92161-2058

DAMPER

$2.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2144

WASHER

$2.49

$

In Stock, Qty 9

0

130

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

130A

Kawasaki 130CA0645

BOLT-FLANGED,6X45
(Superseded to 130P0645)

$

$

Not available

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
