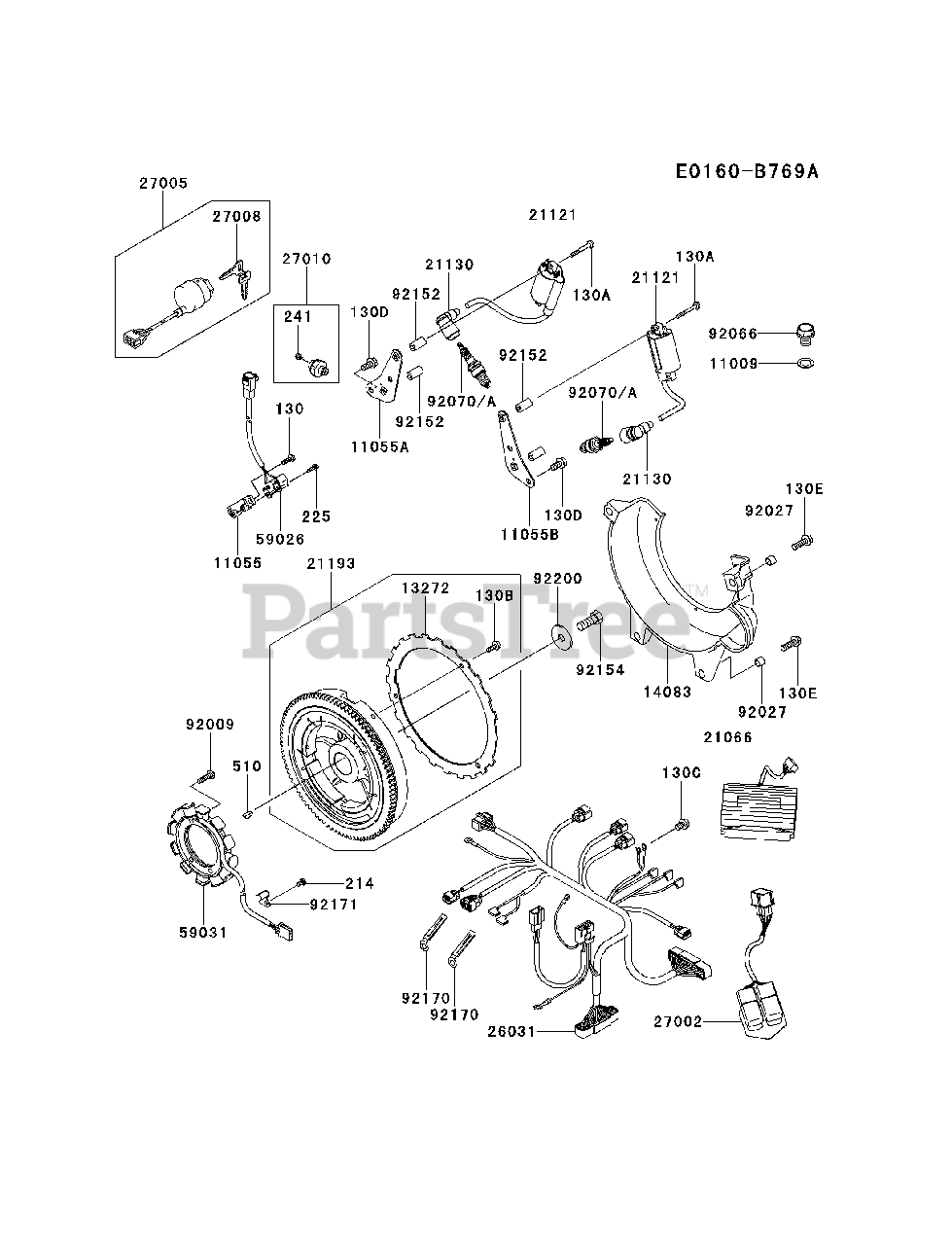

FD851D-NS01 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 11009-2566

GASKET,DRAIN PLUG

$0.99

$

In Stock, Qty 8

0

11055

Kawasaki 11055-2037

BRACKET,PULSE COIL

$18.99

$

Usually ships in 2-5 days

0

11055A

Kawasaki 11055-2043

BRACKET,COIL-IGNITION

$11.99

$

Usually ships in 2-5 days

0

11055B

Kawasaki 11055-2044

BRACKET,COIL-IGNITION

$11.99

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-2029

PLATE

$25.99

$

Usually ships in 2-5 days

0

14083

Kawasaki 14083-2055

COVER-FLYWHEEL

$41.99

$

Usually ships in 2-5 days

0

21066

Kawasaki 21066-2079

REGULATOR-VOLTAGE

$280.99

$

Usually ships in 2-5 days

0

21121

Kawasaki 21121-2107

COIL-IGNITION

$87.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, Qty 8

0

21193

Kawasaki 21193-0011

FLYWHEEL-ASSY

$393.99

$

Usually ships in 2-5 days

0

26031

Kawasaki 26031-1710

HARNESS

$480.99

$

Usually ships in 2-5 days

0

27002

Kawasaki 27002-0057

RELAY-ASSY

$75.99

$

Usually ships in 2-5 days

0

27005

Kawasaki 27005-2056

SWITCH-ASSY-IGNITION

$

$

Not available

27008

Kawasaki 27008-2055

KEY-LOCK

$13.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 27010-2234

SWITCH
(Superseded to 27010-0851)

$19.99

$

In Stock, Qty 8

0

59026

Kawasaki 59026-2065

COIL-PULSING

$

$

Not available

59031

Kawasaki 59031-2127

COIL-CHARGING

$207.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2273

SCREW,6X25

$1.49

$

Usually ships in 2-5 days

0

92027

Kawasaki 92027-1568

COLLAR,8.3X11.5X9

$1.99

$

In Stock, only 4 left!

0

92066

Kawasaki 92066-2099

PLUG,DRAIN

$15.99

$

In Stock, only 2 left!

0

92070

Kawasaki 92070-2112

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92070A

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92152

Kawasaki 92152-2098

COLLAR,5.5X12X23

$5.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92170

Kawasaki 92170-2060

CLAMP

$3.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-2060

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2119

WASHER,12.2X40X3.0

$6.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130BA0516

BOLT-FLANGED,5X16
(Superseded to 130G0516)

$0.99

$

Usually ships in 2-5 days

0

130A

Kawasaki 130BA0540

BOLT-FLANGED,5X40

$1.49

$

Usually ships in 2-5 days

0

130B

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, only 2 left!

0

130C

Kawasaki 130BA0812

BOLT-FLANGED,8X12
(Superseded to 92002-2086)

$1.49

$

In Stock, only 4 left!

0

130D

Kawasaki 130BA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

130E

Kawasaki 130BA0825

BOLT-FLANGED,8X25
(Superseded to 130D0825)

$1.49

$

In Stock, Qty 6

0

214

Kawasaki 214AA0510

SCREW-PAN+-,5X10
(Superseded to 214B0510)

$0.99

$

In Stock, Qty 13

0

225

Kawasaki 225AA0414

SCREW-PAN-WSP-CROS,4X14
(Superseded to 225B0414)

$0.99

$

In Stock, Qty 6

0

241

Kawasaki 241AA0406

SCREW-PAN-WP+-,4X6
(Superseded to 223AA0406)

$

$

Not available

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
