FD851D-MS04 - Kawasaki Engine THROTTLE - EQUIPMENT Parts Diagram

Engine

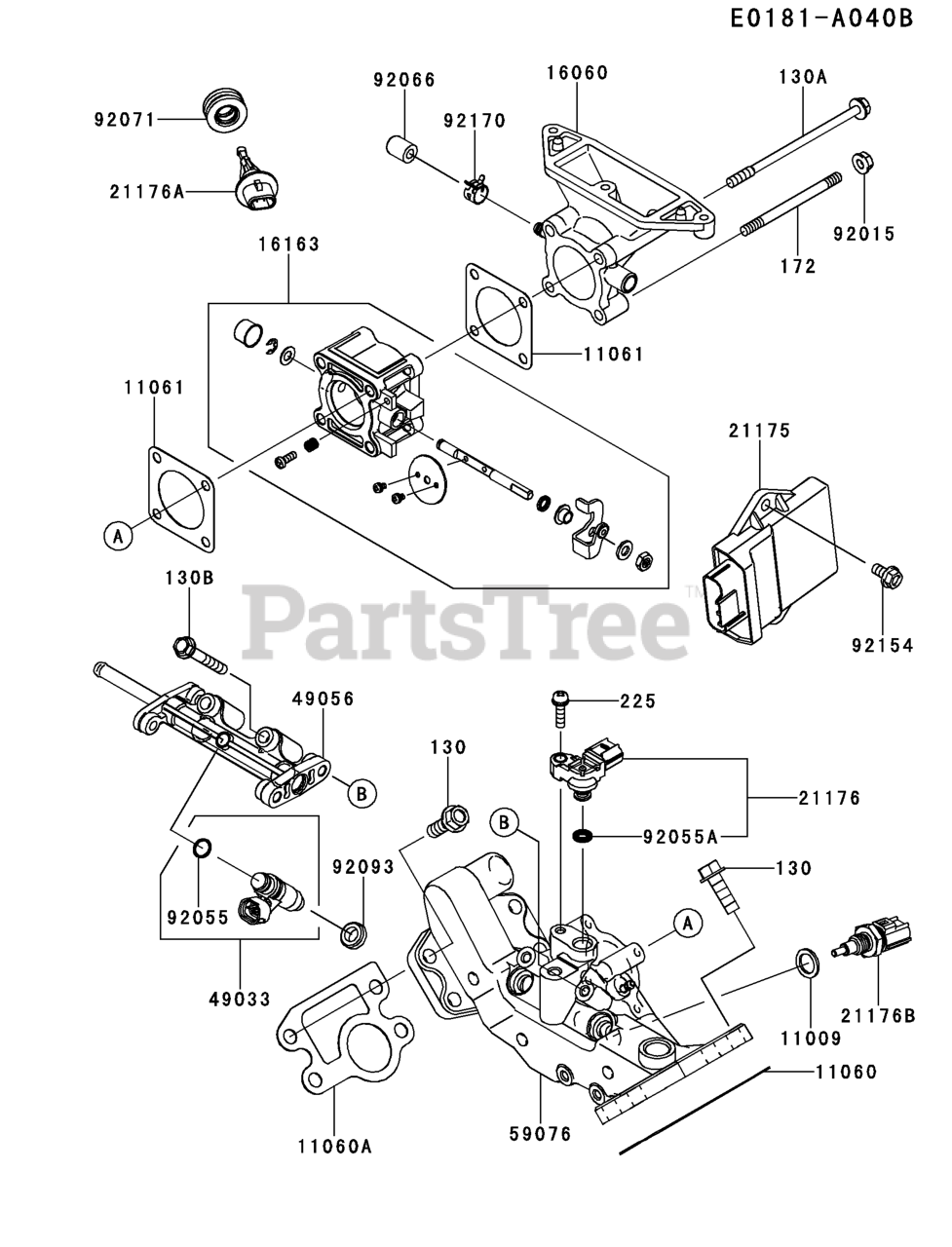

THROTTLE - EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-1376

GASKET,12.4X17X1.5
(Superseded to 11060-2179)

$1.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2468

GASKET,INTAKE MANIFOLD

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-2469

GASKET,INTAKE MANIFOLD

$5.49

$

In Stock, Qty 20+

0

11061

$4.49

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-6010

PIPE-INTAKE

$56.99

$

Usually ships in 2-5 days

0

16163

Kawasaki 16163-0978

THROTTLE-ASSY

$136.99

$

Usually ships in 2-5 days

0

21175

Kawasaki 21175-1659

CONTROL UNIT-ELECTRONIC

$528.99

$

Usually ships in 2-5 days

0

21176

$108.99

$

Usually ships in 2-5 days

0

21176A

Kawasaki 21176-2106

SENSOR
(Superseded to 21176-2096)

$27.99

$

In Stock, only 1 left!

0

21176B

$44.99

$

Usually ships in 2-5 days

0

49033

Kawasaki 49033-2060

NOZZLE-INJECTION

$163.99

$

Usually ships in 2-5 days

0

49056

Kawasaki 49056-6001

PIPE-INJECTION
(Superseded to 32153-2089)

$94.99

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-2095

MANIFOLD-INTAKE

$294.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92055

Kawasaki 92055-1622

RING-O,INJECTION NOZZ

$2.49

$

Usually ships in 2-5 days

0

92055A

Kawasaki 92055-2220

RING-O,7.8MM

$5.99

$

Usually ships in 2-5 days

0

92066

$1.99

$

In Stock, only 2 left!

0

92071

$4.99

$

Usually ships in 2-5 days

0

92093

$2.99

$

Usually ships in 2-5 days

0

92154

$0.99

$

In Stock, Qty 20+

0

92170

$1.49

$

In Stock, Qty 14

0

130

Kawasaki 130BA0825

BOLT-FLANGED,8X25
(Superseded to 130D0825)

$1.49

$

In Stock, Qty 6

0

130A

Kawasaki 130CA06110

BOLT-FLANGED,6X110
(Superseded to 130T06110)

$2.49

$

In Stock, Qty 8

0

130B

Kawasaki 130CA0645

BOLT-FLANGED,6X45
(Superseded to 130P0645)

$

$

Not available

172

Kawasaki 172BA0670

BOLT-STUD,6X70
(Superseded to 172G0670)

$2.49

$

Usually ships in 2-5 days

0

225

Kawasaki 225AA0520

SCREW-PAN-WSP-CROS,5X20
(Superseded to 225B0520)

$0.99

$

Usually ships in 2-5 days

0
