FD851D-MS02 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

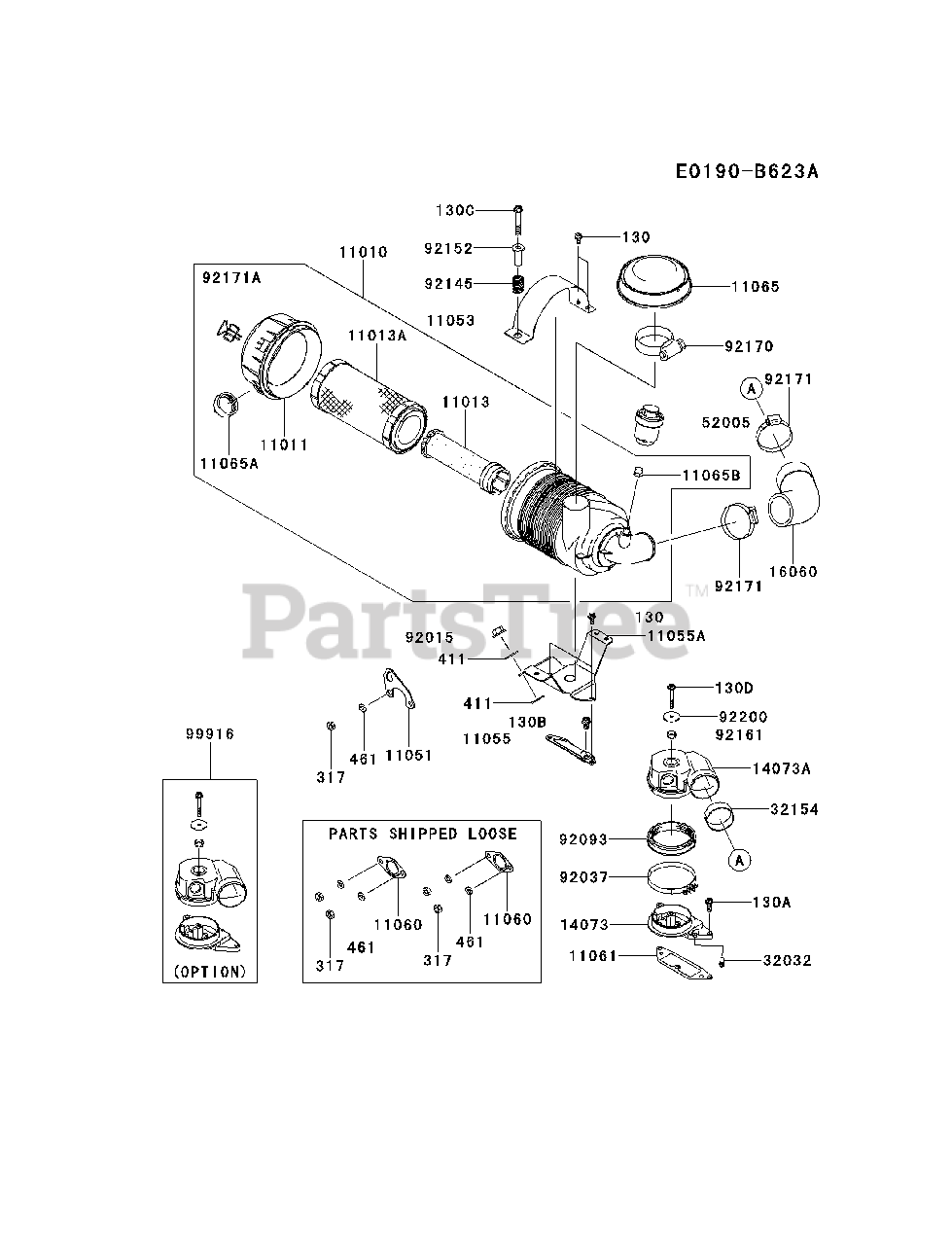

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-2571

FILTER-ASSY-AIR
(Superseded to 11010-7028)

$118.99

$

In Stock, Qty 20+

0

11011

Kawasaki 11011-7014

CASE-AIR FILTER

$54.99

$

In Stock, only 1 left!

0

11013

Kawasaki 11013-7019

ELEMENT-AIR FILTER

$31.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7020

ELEMENT-AIR FILTER

$28.99

$

In Stock, Qty 13

0

11051

Kawasaki 11051-2088

BRACKET

$8.99

$

Usually ships in 2-5 days

0

11053

Kawasaki 11053-2056-9H

BRACKET,UPPER

$7.49

$

In Stock, only 1 left!

0

11055

Kawasaki 11055-2040

BRACKET,FILTER-AIR

$17.99

$

Usually ships in 2-5 days

0

11055A

Kawasaki 11055-2041-9H

BRACKET,FILTER-AIR,LOW

$34.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2467

GASKET,MUFFLER

$6.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-2085

GASKET
(Superseded to 11060-2474)

$5.49

$

In Stock, Qty 10

0

11065

Kawasaki 11065-7006

CAP
(Superseded to 11065-7025)

$41.99

$

In Stock, Qty 20+

0

11065A

Kawasaki 11065-7008

CAP

$19.99

$

In Stock, Qty 20+

0

11065B

Kawasaki 11065-7009

CAP

$10.99

$

In Stock, only 1 left!

0

14073

Kawasaki 14073-2086

DUCT,UPP

$73.99

$

Usually ships in 2-5 days

0

14073A

Kawasaki 14073-2103

DUCT,LOW
(Superseded to 14073-6001)

$34.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-2208

PIPE-INTAKE
(Superseded to 16060-2199)

$24.99

$

In Stock, only 2 left!

0

32032

Kawasaki 32032-3001

PIPE,PULSE

$

$

Not available

32154

Kawasaki 32154-2059

PIPE,INSIDE DUCT

$6.99

$

In Stock, only 1 left!

0

52005

Kawasaki 52005-2152

GAUGE

$

$

Not available

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92037

Kawasaki 92037-1654

CLAMP

$13.99

$

Usually ships in 2-5 days

0

92093

Kawasaki 92093-2118

SEAL

$12.99

$

In Stock, only 1 left!

0

92145

Kawasaki 92145-2120

SPRING

$2.49

$

In Stock, only 1 left!

0

92152

Kawasaki 92152-2083

COLLAR

$12.99

$

In Stock, only 1 left!

0

92161

Kawasaki 92161-2058

DAMPER

$2.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2075

CLAMP

$10.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-2076

CLAMP

$10.99

$

In Stock, only 2 left!

0

92171A

Kawasaki 92171-7009

CLAMP

$12.99

$

In Stock, Qty 7

0

92200

Kawasaki 92200-2144

WASHER

$2.49

$

In Stock, Qty 9

0

99916

Kawasaki 99916-2183

KIT-KHI PARTS,DUCT-SET

$

$

Not available

130

Kawasaki 130BA0614

BOLT-FLANGED,6X14
(Superseded to 92001-1627)

$3.99

$

In Stock, Qty 6

0

130A

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

130B

Kawasaki 130BA0814

BOLT-FLANGED,8X14
(Superseded to 130B0814)

$

$

Not available

130C

Kawasaki 130BA0855

BOLT-FLANGED,8X55
(Superseded to 130D0855)

$

$

Not available

130D

Kawasaki 130CA0645

BOLT-FLANGED,6X45
(Superseded to 130P0645)

$

$

Not available

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, Qty 12

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
