FD851D-MS01 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

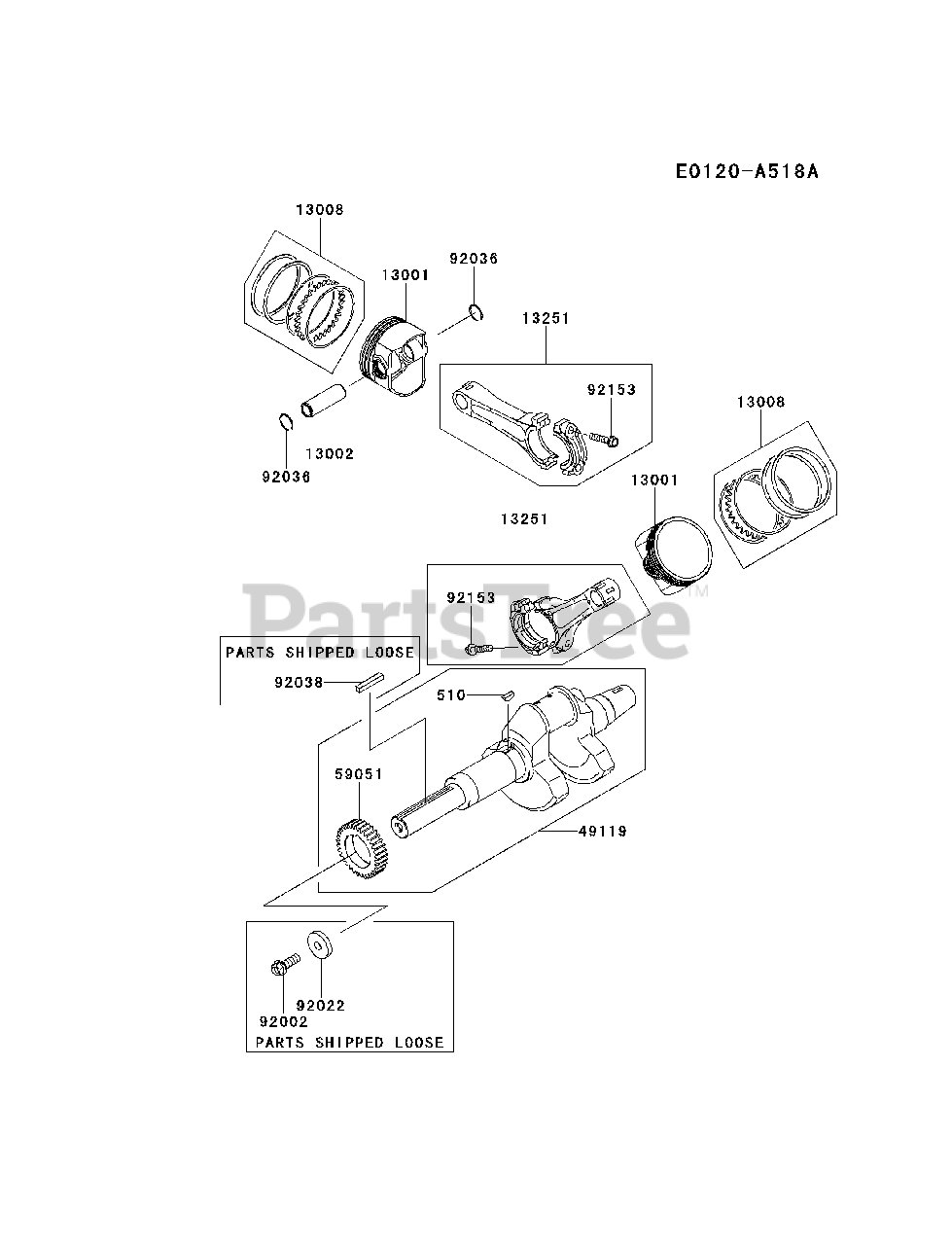

PISTON/CRANKSHAFT Parts Diagram

  • Title
13001

Kawasaki 13001-7013

PISTON-ENGINE
(Superseded to 13001-7016)

$65.99

$

Usually ships in 2-5 days

0

13002

Kawasaki 13002-7003

PIN-PISTON

$7.99

$

Usually ships in 2-5 days

0

13008

Kawasaki 13008-6063

RING-SET-PISTON

$39.99

$

Usually ships in 2-5 days

0

13251

Kawasaki 13251-2084

ROD-ASSY-CONNECTING
(Superseded to 13251-2058)

$

$

Not available

49119

Kawasaki 49119-2246

CRANKSHAFT-ASSY

$448.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2358

GEAR-SPUR,33T

$

$

Not available

92002

Kawasaki 92002-2263

BOLT,10X28

$1.99

$

In Stock, only 1 left!

0

92022

$4.49

$

Usually ships in 2-5 days

0

92036

Kawasaki 92036-008

RING-SNAP,PISTON PIN

$0.99

$

In Stock, Qty 20+

0

$4.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-2054

BOLT,7X35.2

$1.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
