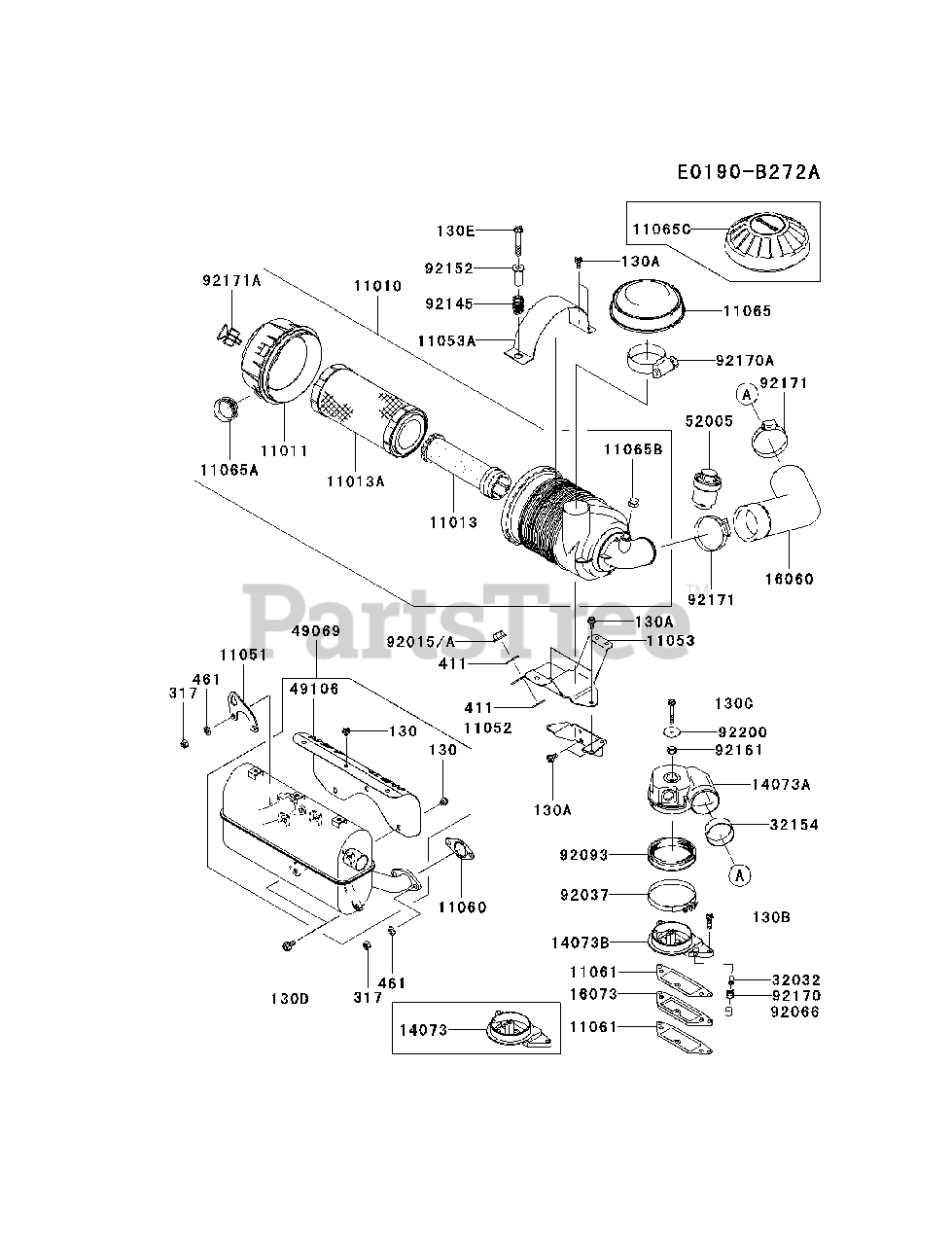

FD791D-FS01 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title
130

Kawasaki 130AA0608

BOLT-FLANGED,6X8
(Superseded to 92153-1005)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA0614

BOLT-FLANGED,6X14
(Superseded to 92001-1627)

$3.99

$

In Stock, Qty 6

0

130B

Kawasaki 130BA0625

BOLT-FLANGED,6X25
(Superseded to 92003-177)

$1.49

$

In Stock, Qty 20+

0

130C

Kawasaki 130BA0645

BOLT-FLANGED,6X45
(Superseded to 130B0645)

$0.99

$

In Stock, only 1 left!

0

130D

Kawasaki 130BA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

130E

Kawasaki 130BA0855

BOLT-FLANGED,8X55
(Superseded to 130D0855)

$

$

Not available

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, Qty 12

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
