FD791D-DS04 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

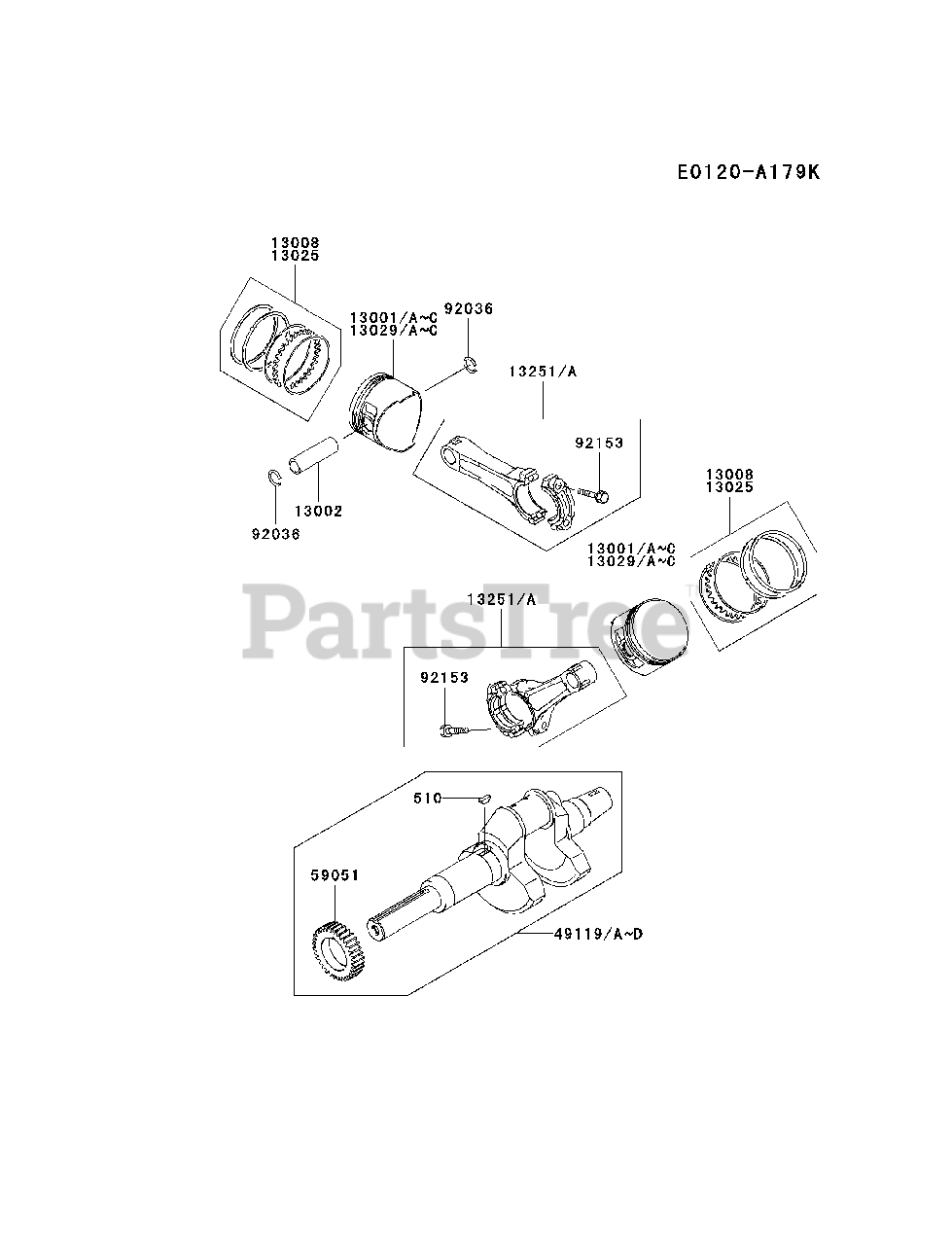

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001A

Kawasaki 13001-2150

PISTON-ENGINE
(Superseded to 13001-2188)

$

$

Not available

13001C

Kawasaki 13001-2188

PISTON-ENGINE
(Superseded to 13001-2150)

$

$

Not available

13002

Kawasaki 13002-2069

PIN-PISTON

$10.99

$

In Stock, only 1 left!

0

13008

Kawasaki 13008-6007

RING-SET-PISTON

$37.99

$

In Stock, Qty 6

0

13025

Kawasaki 13025-2074

RING-SET-PISTON L,0.50

$44.99

$

Usually ships in 2-5 days

0

13029A

Kawasaki 13029-2124

PISTON-ENGINE L,0.50
(Superseded to 13029-2133)

$59.99

$

Usually ships in 2-5 days

0

13029C

Kawasaki 13029-2133

PISTON-ENGINE L,0.50
(Superseded to 13029-2124)

$59.99

$

Usually ships in 2-5 days

0

13251

Kawasaki 13251-2058

ROD-ASSY-CONNECTING
(Superseded to 13251-2084)

$

$

Not available

49119B

Kawasaki 49119-2226

CRANKSHAFT-ASSY
(Superseded to 99916-2190)

$650.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2358

GEAR-SPUR,33T

$

$

Not available

92036

Kawasaki 92036-008

RING-SNAP

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-2054

BOLT,7X35.2

$1.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
