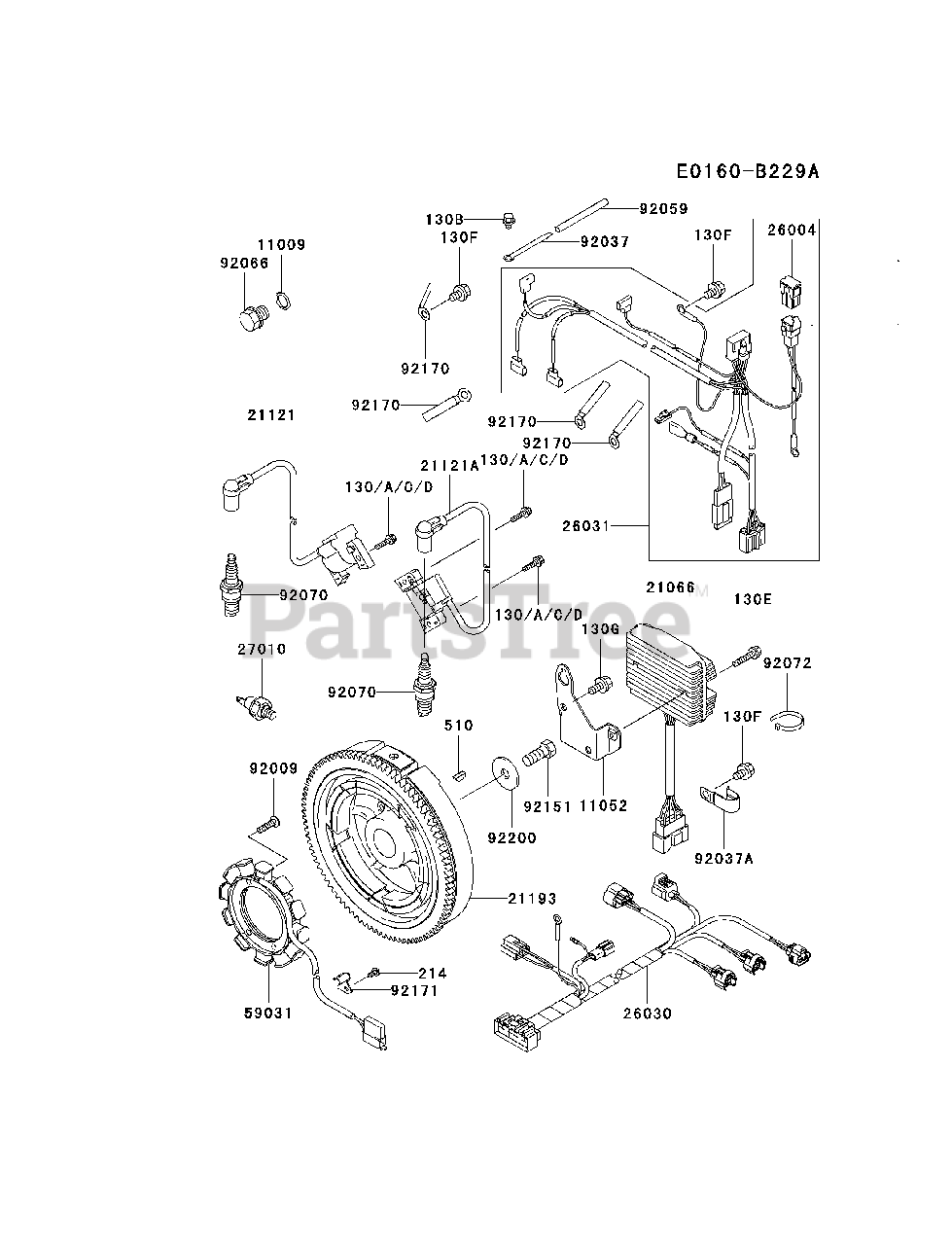

FD791D-CS06 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 11009-2766

GASKET,16X24X1
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 8

0

11052

Kawasaki 11052-2058

BRACKET

$36.99

$

In Stock, only 1 left!

0

21066

Kawasaki 21066-2079

REGULATOR-VOLTAGE

$280.99

$

Usually ships in 2-5 days

0

21121

Kawasaki 21121-2090

COIL-IGNITION,NO1

$66.99

$

Usually ships in 2-5 days

0

21121A

Kawasaki 21121-2091

COIL-IGNITION,NO2

$66.99

$

Usually ships in 2-5 days

0

21193

Kawasaki 21193-2187

FLYWHEEL-ASSY
(Superseded to 21193-0009)

$526.99

$

Usually ships in 2-5 days

0

26004

Kawasaki 26004-1093

FUSE-ASSY

$7.49

$

Usually ships in 2-5 days

0

26030

Kawasaki 26030-2331

HARNESS

$112.99

$

Usually ships in 2-5 days

0

26031

Kawasaki 26031-2070

HARNESS,C-UNIT

$70.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 27010-7001

SWITCH
(Superseded to 27010-0817)

$23.99

$

In Stock, Qty 9

0

59031

Kawasaki 59031-2127

COIL-CHARGING

$207.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2273

SCREW,6X25

$1.49

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-2006

CLAMP

$1.49

$

Usually ships in 2-5 days

0

92037A

Kawasaki 92037-2101

CLAMP

$

$

Not available

92059

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92066

Kawasaki 92066-2099

PLUG,DRAIN

$15.99

$

In Stock, only 2 left!

0

92070

Kawasaki 92070-2112

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-1195

BAND

$1.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 20+

0

92170

Kawasaki 92170-2060

CLAMP

$3.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-2060

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2119

WASHER,12.2X40X3.0

$6.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0520

BOLT-FLANGED,5X20
(Superseded to 130B0520)

$0.99

$

In Stock, Qty 12

0

130B

Kawasaki 130AB0608

BOLT-FLANGED,6X8
(Superseded to 130C0608)

$3.99

$

Usually ships in 2-5 days

0

130E

Kawasaki 130BA0630

BOLT-FLANGED,6X30
(Superseded to 130B0630)

$1.99

$

In Stock, only 3 left!

0

130F

Kawasaki 130BA0812

BOLT-FLANGED,8X12
(Superseded to 92002-2086)

$1.49

$

In Stock, only 4 left!

0

130G

Kawasaki 130BA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

214

Kawasaki 214AA0510

SCREW-PAN+-,5X10
(Superseded to 214B0510)

$0.99

$

In Stock, Qty 13

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
